Cylinder Head Torque & Sequence

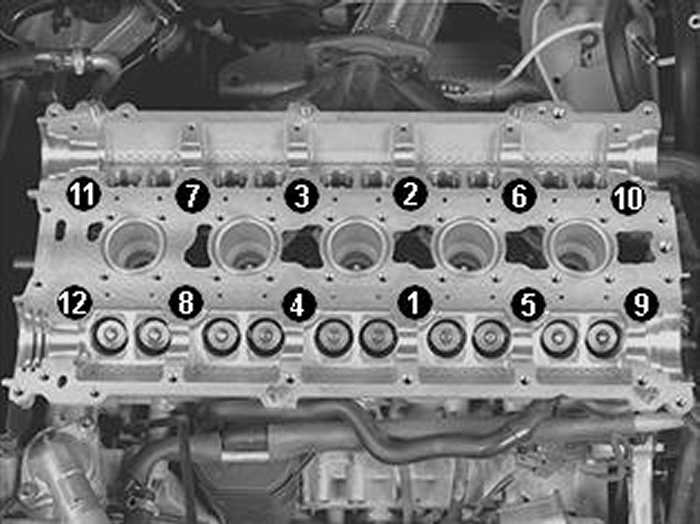

Cylinder head torque sequence (bottom section)

Note: This is part of a larger procedure, this does not contain all the information needed to properly service this component. Refer to Cylinder Head Assembly - Service and Repair - Procedures for more detail Service and Repair

Removing






Remove the screws holding the cylinder head on the cylinder block. Start at the sides and work alternately towards the center.
Get help to lift off the cylinder head.

Note! Do not damage the mating surfaces.

Installing






Use new screws.
Lubricate and install all the screws.

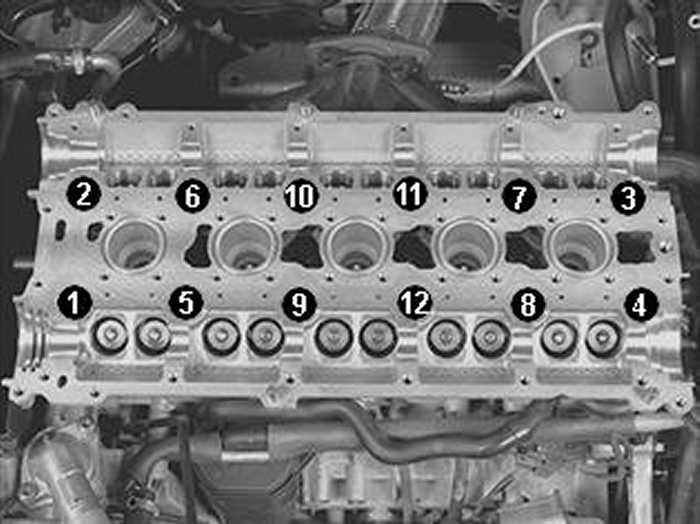

Tighten the screws as illustrated.

Tighten the screws in the following order:
1. 20 Nm
2. 60 Nm
3. Angle-tighten 130°. Use protractor 951 2050.
