Connectors

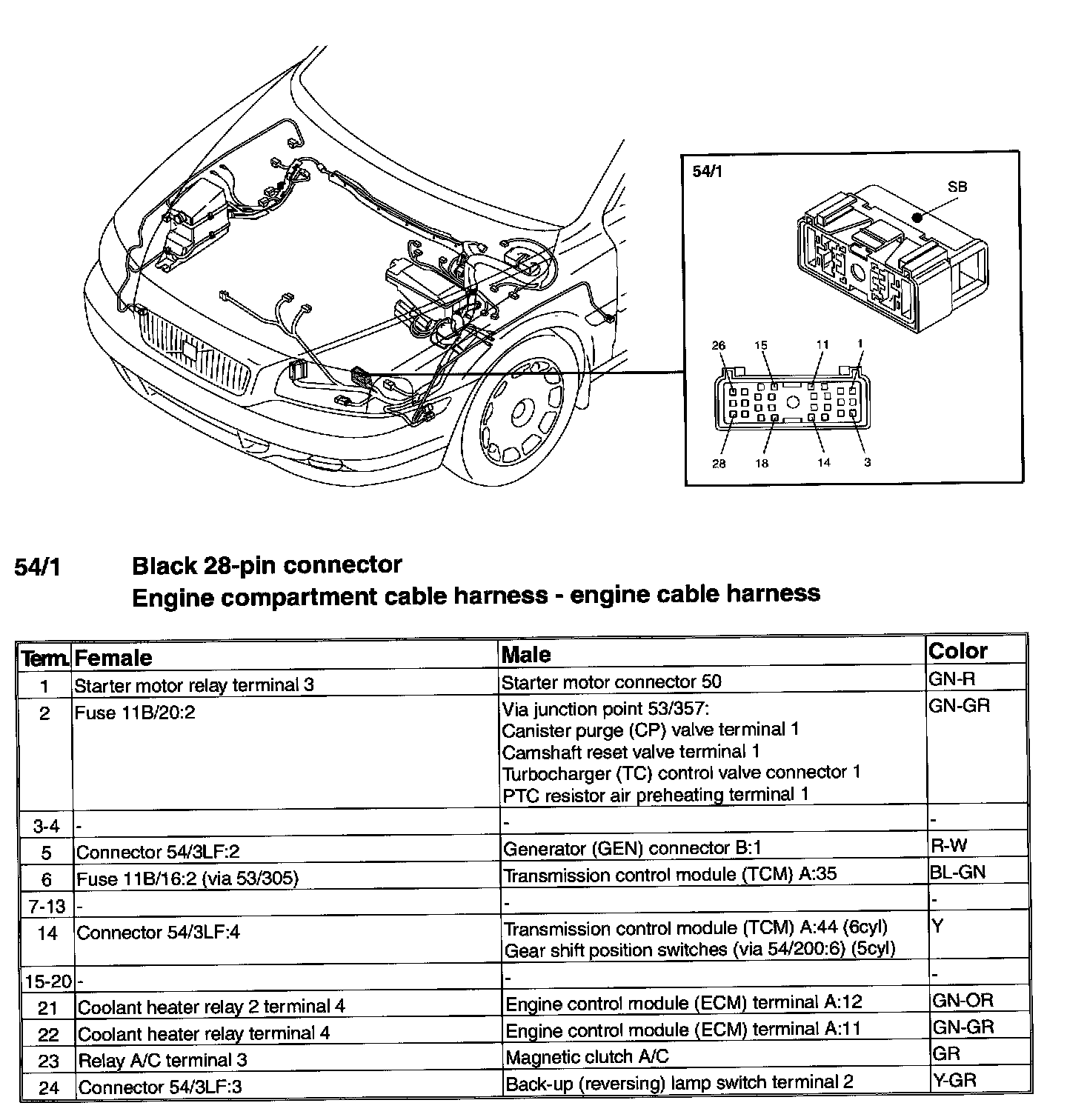

Connector - 54/1 - Terminals 1-24:

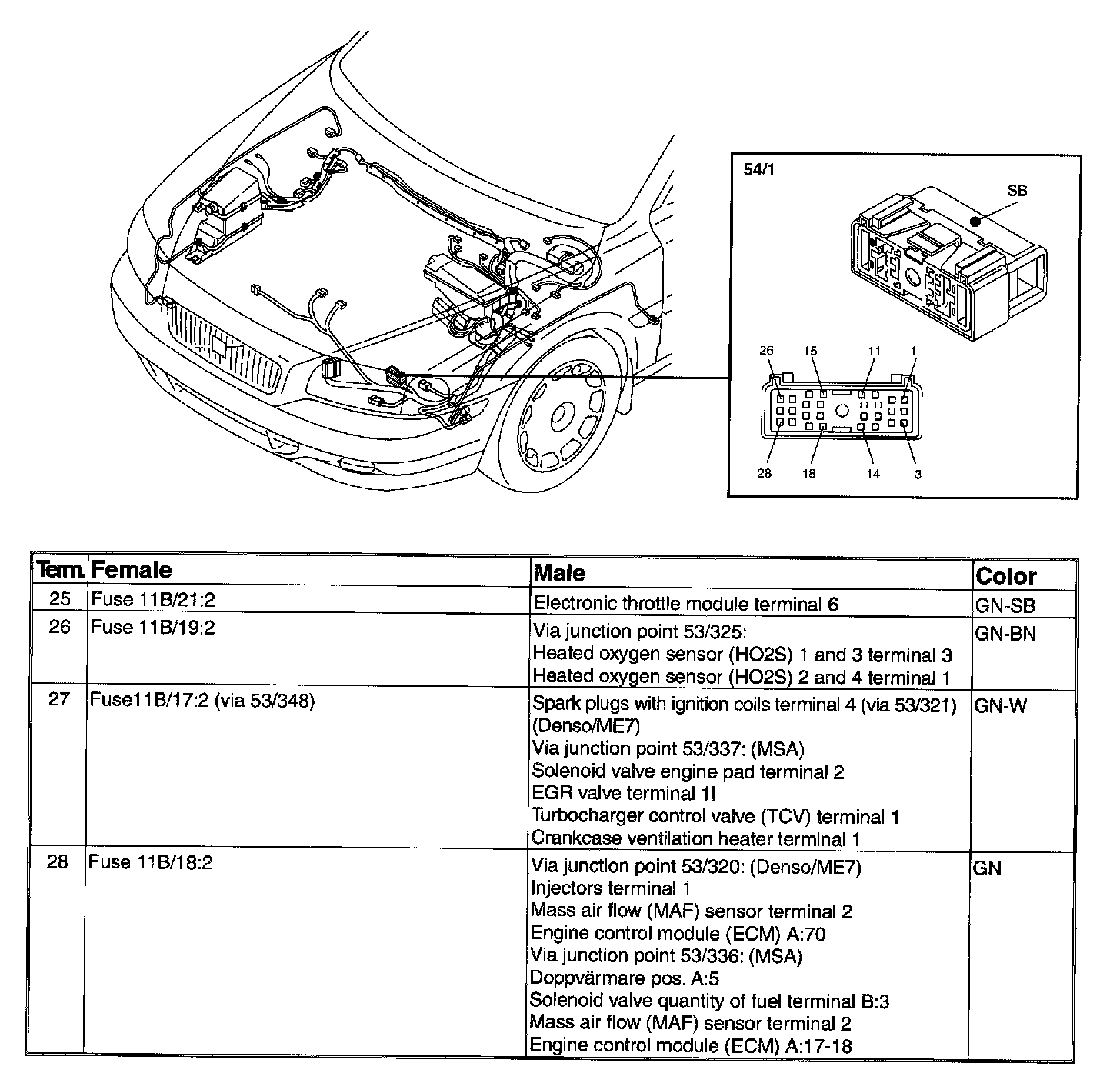

Connector - 54/1 - Terminals 25 - 28:

Connector - 54/3L:

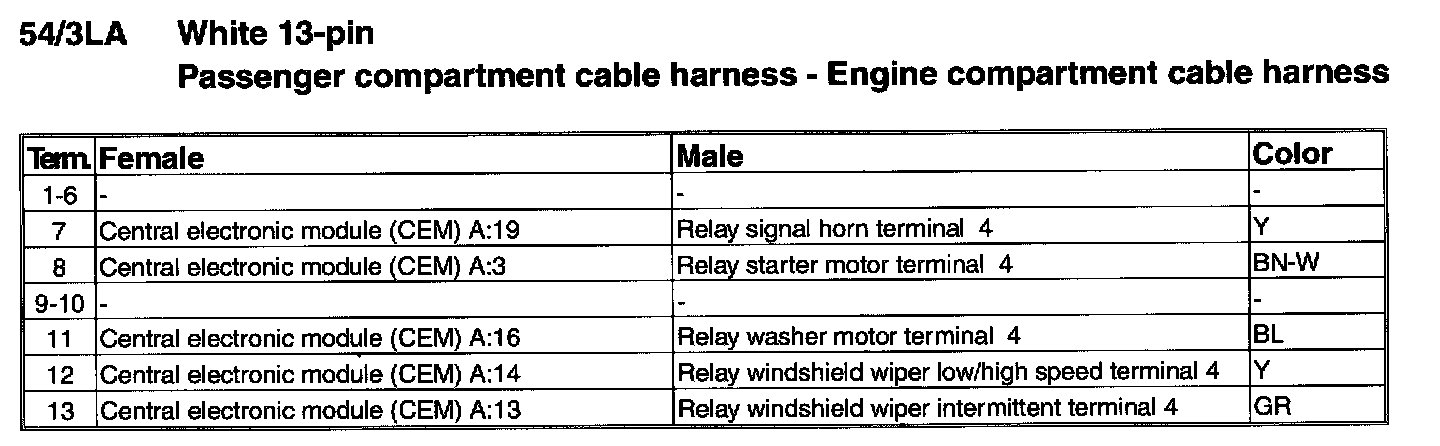

Connector - 54/3LA:

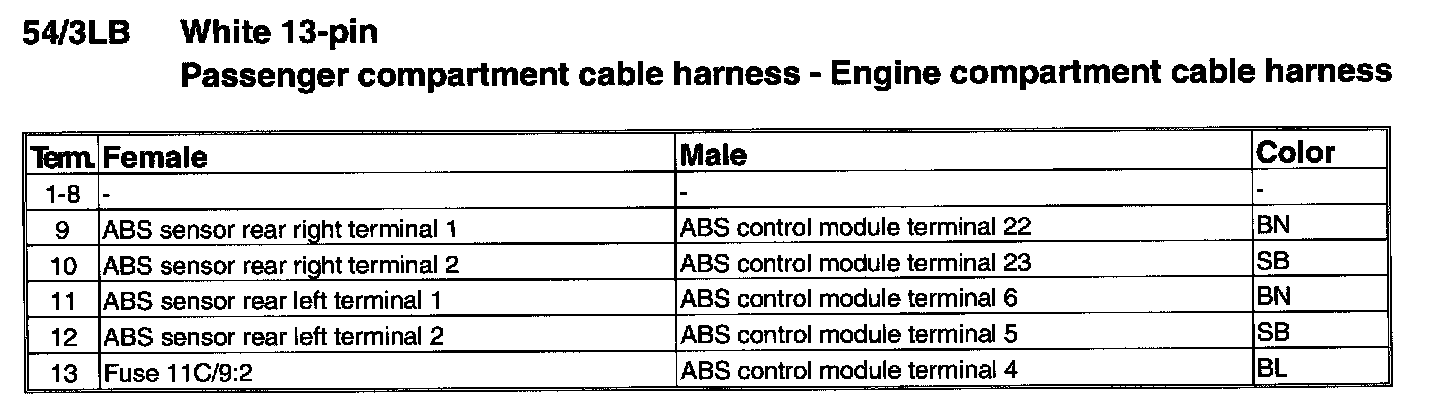

Connector - 54/3LB:

Connector - 54/3L:

Connector - 54/3LC:

Connector - 54/3LD:

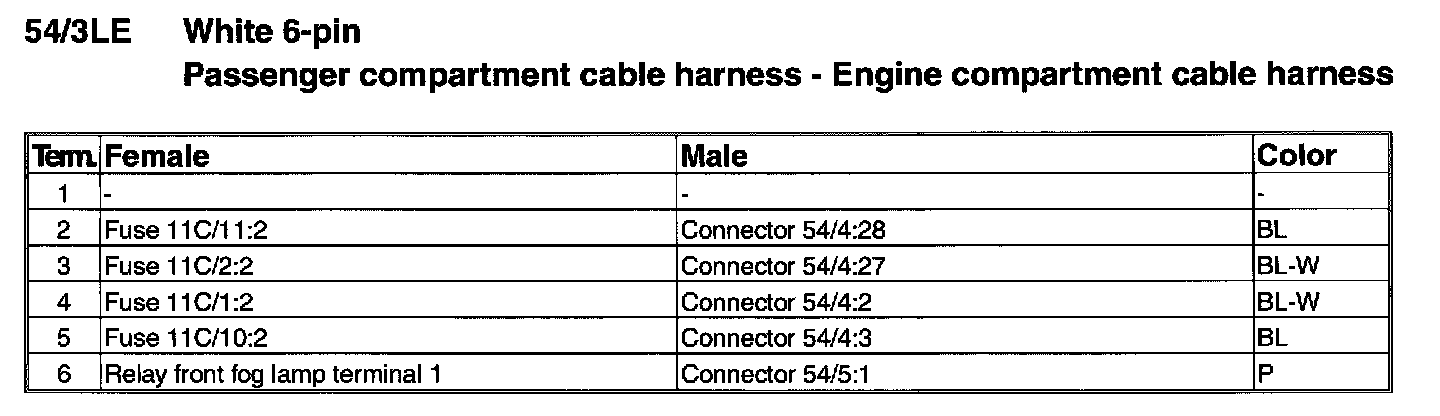

Connector - 54/3LE:

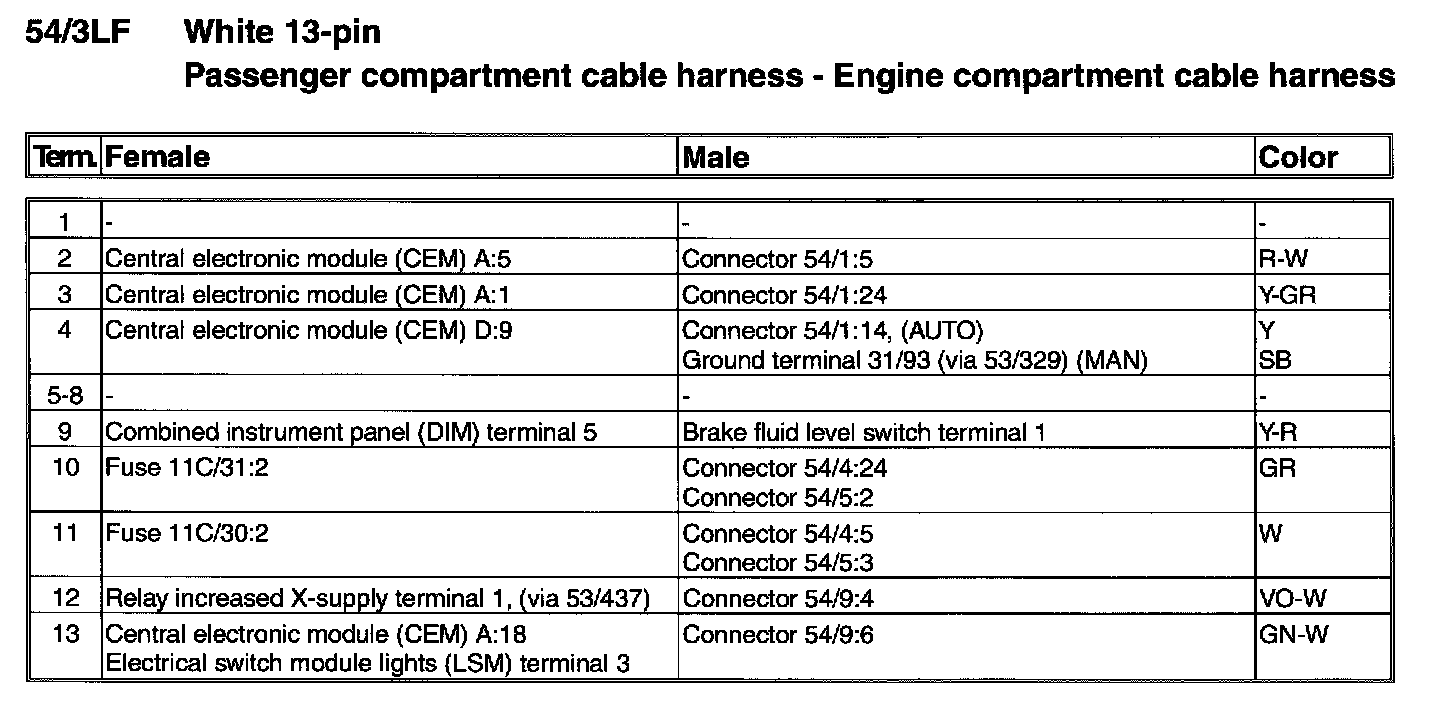

Connector - 54/3LF:

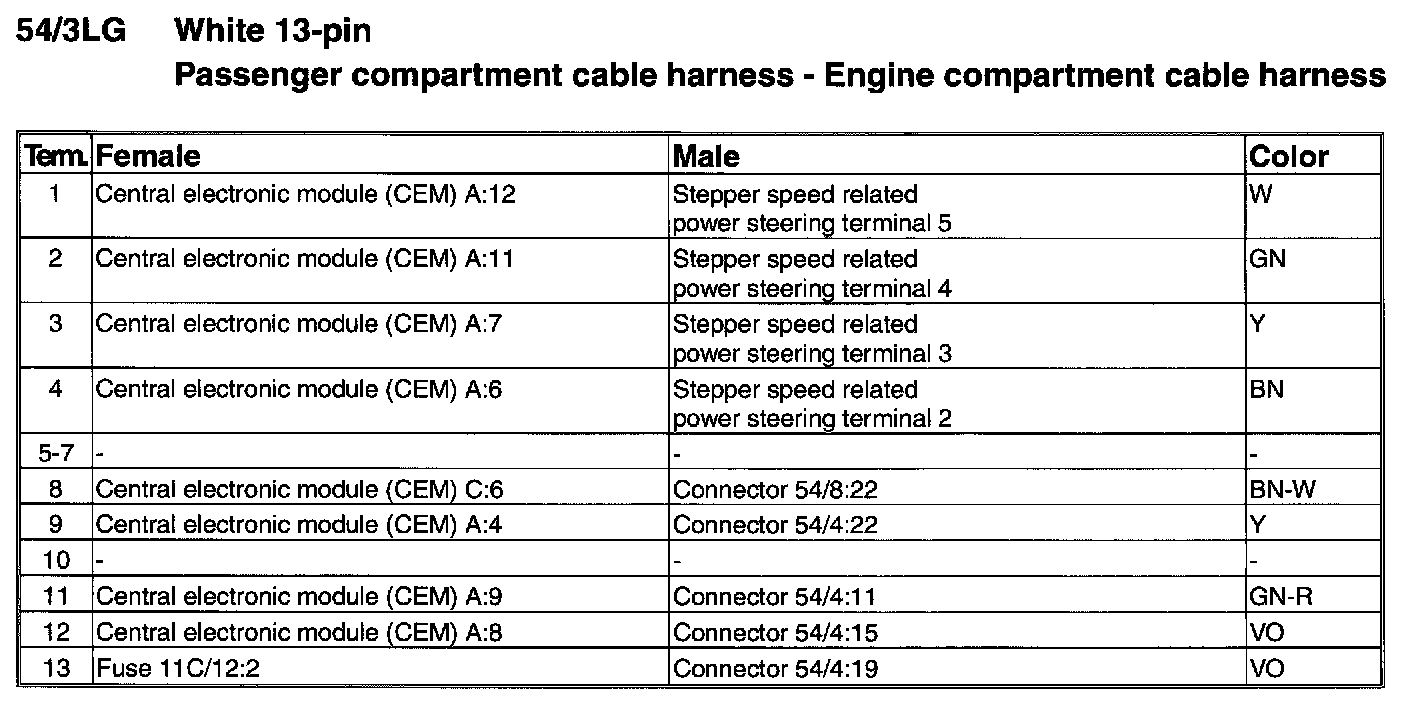

Connector - 54/3LG:

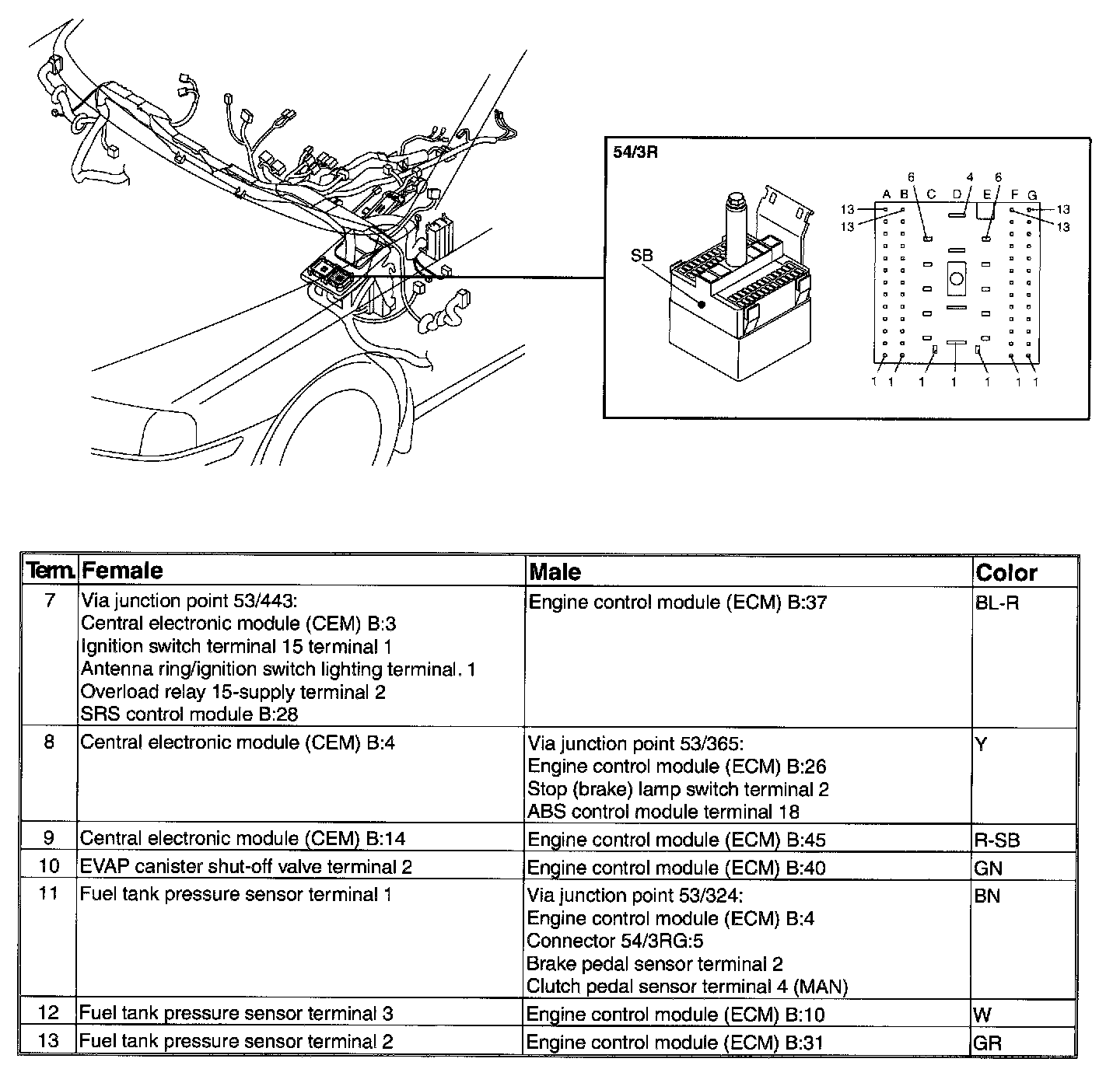

Connector - 54/3R:

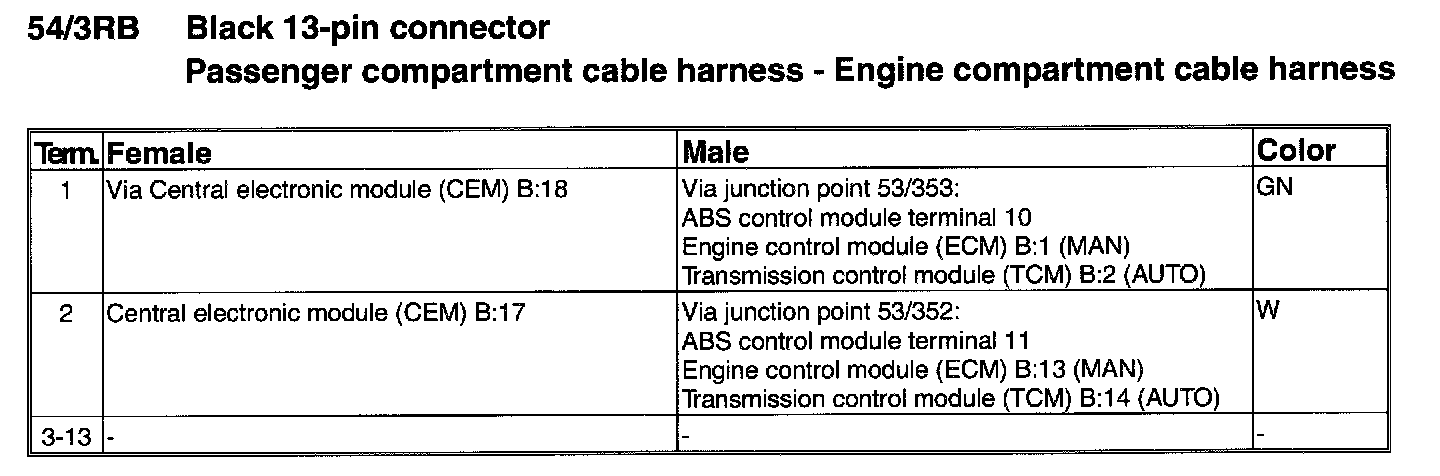

Connector - 54/3RB:

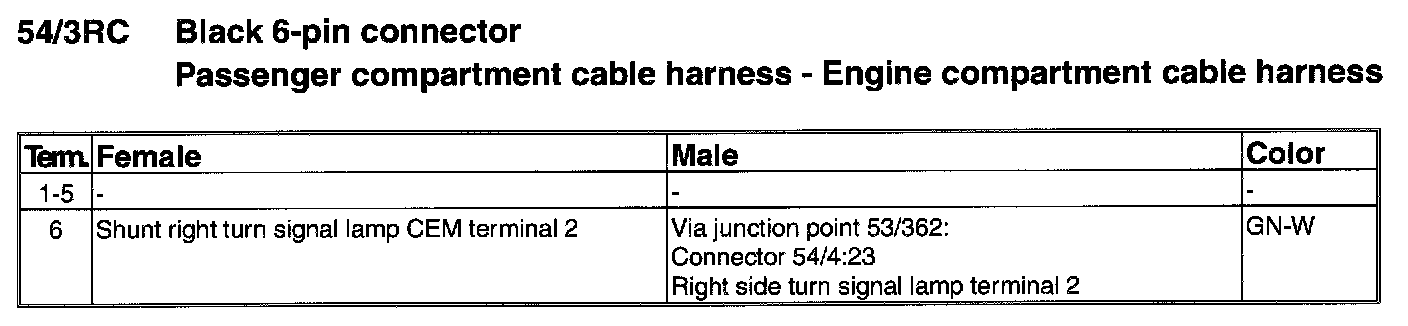

Connector - 54/3RC:

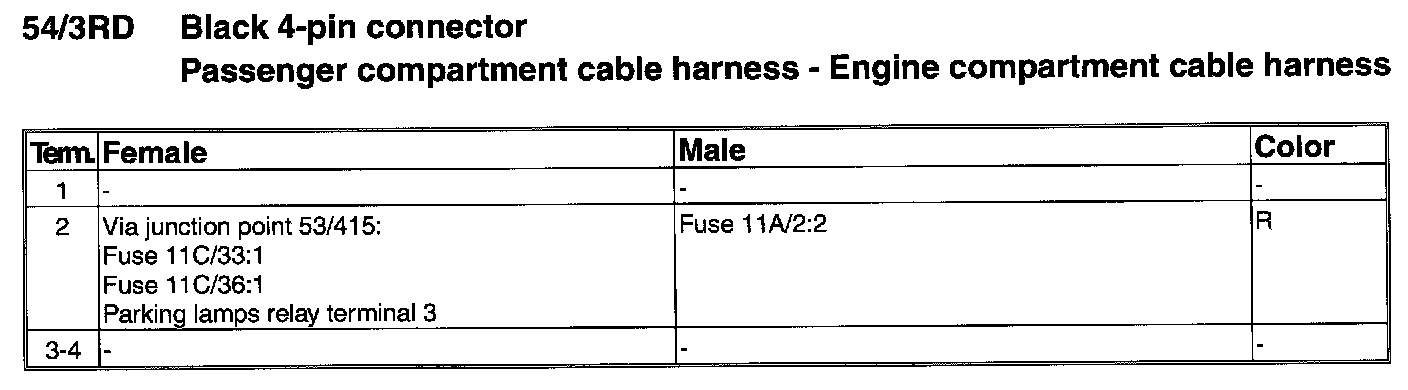

Connector - 54/3RD:

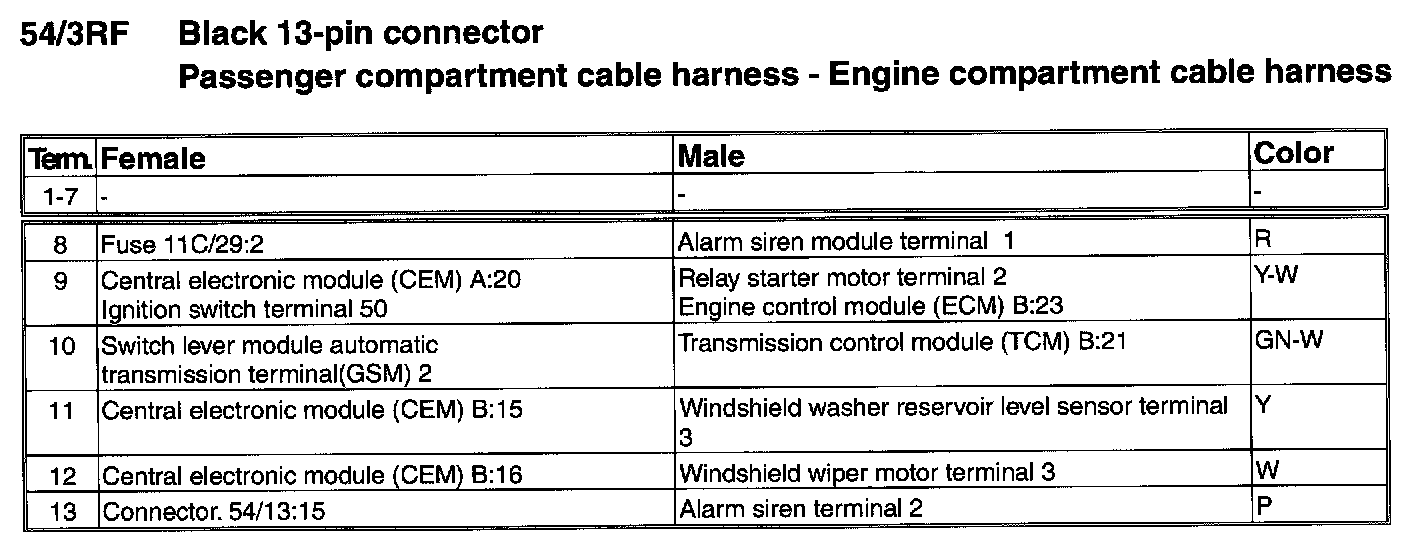

Connector - 54/3RF:

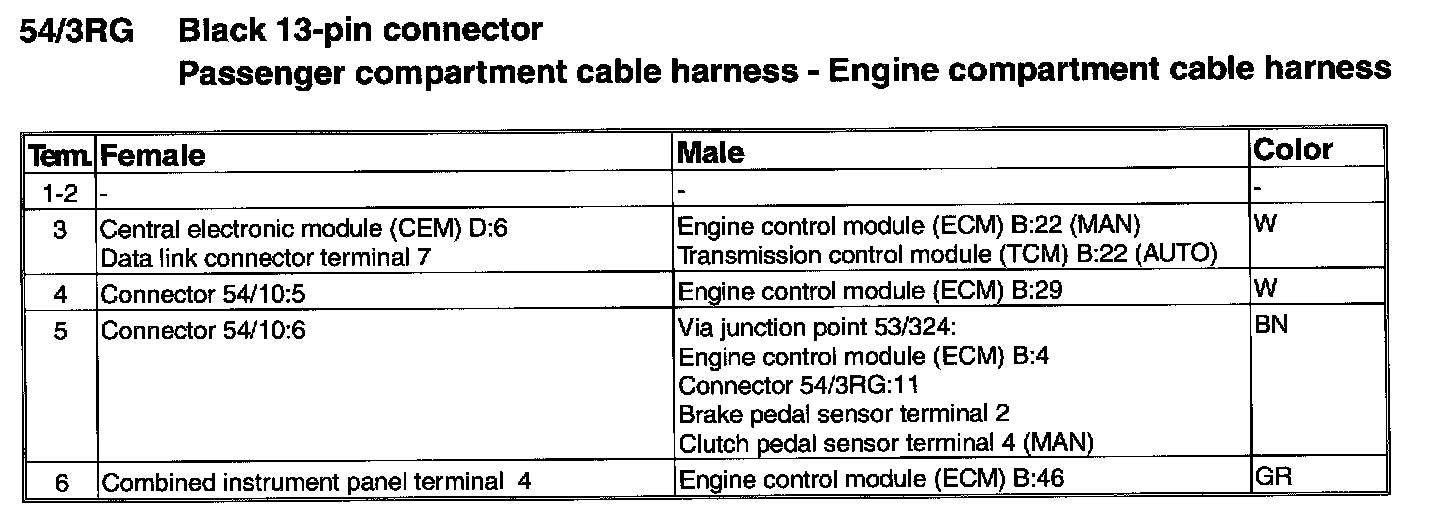

Connector - 54/3RG:

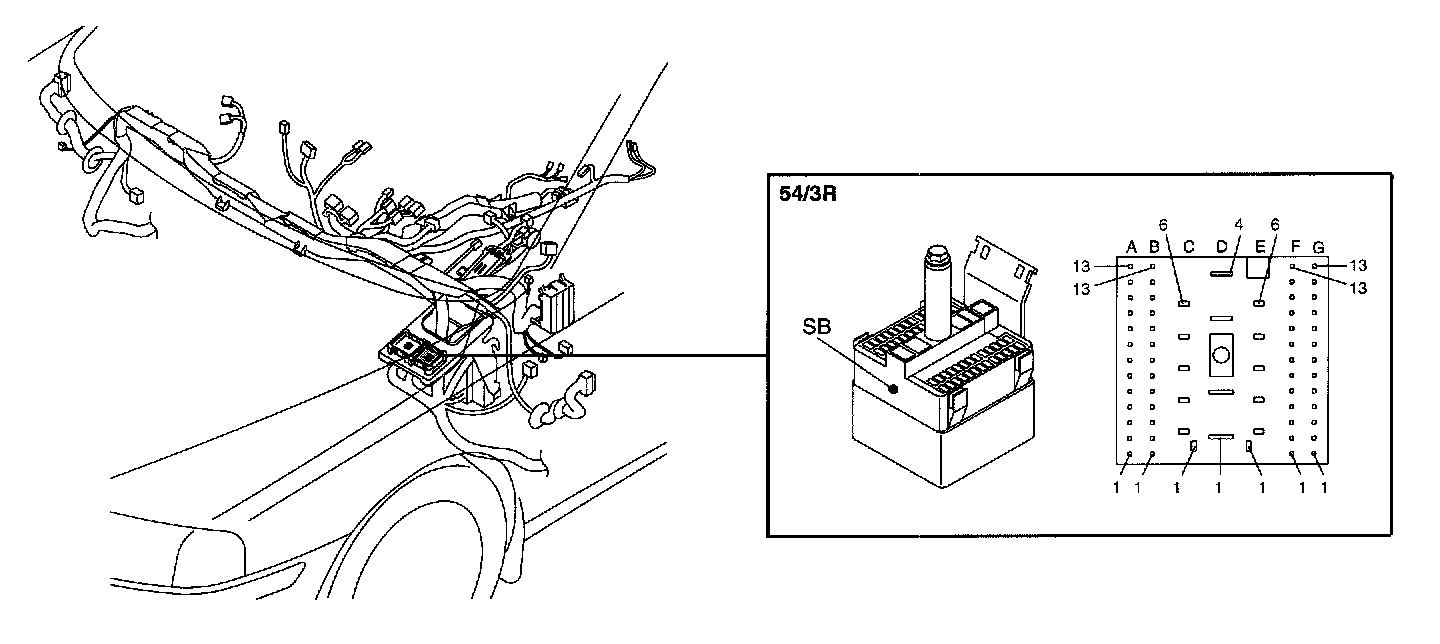

Connector - 54/3R:

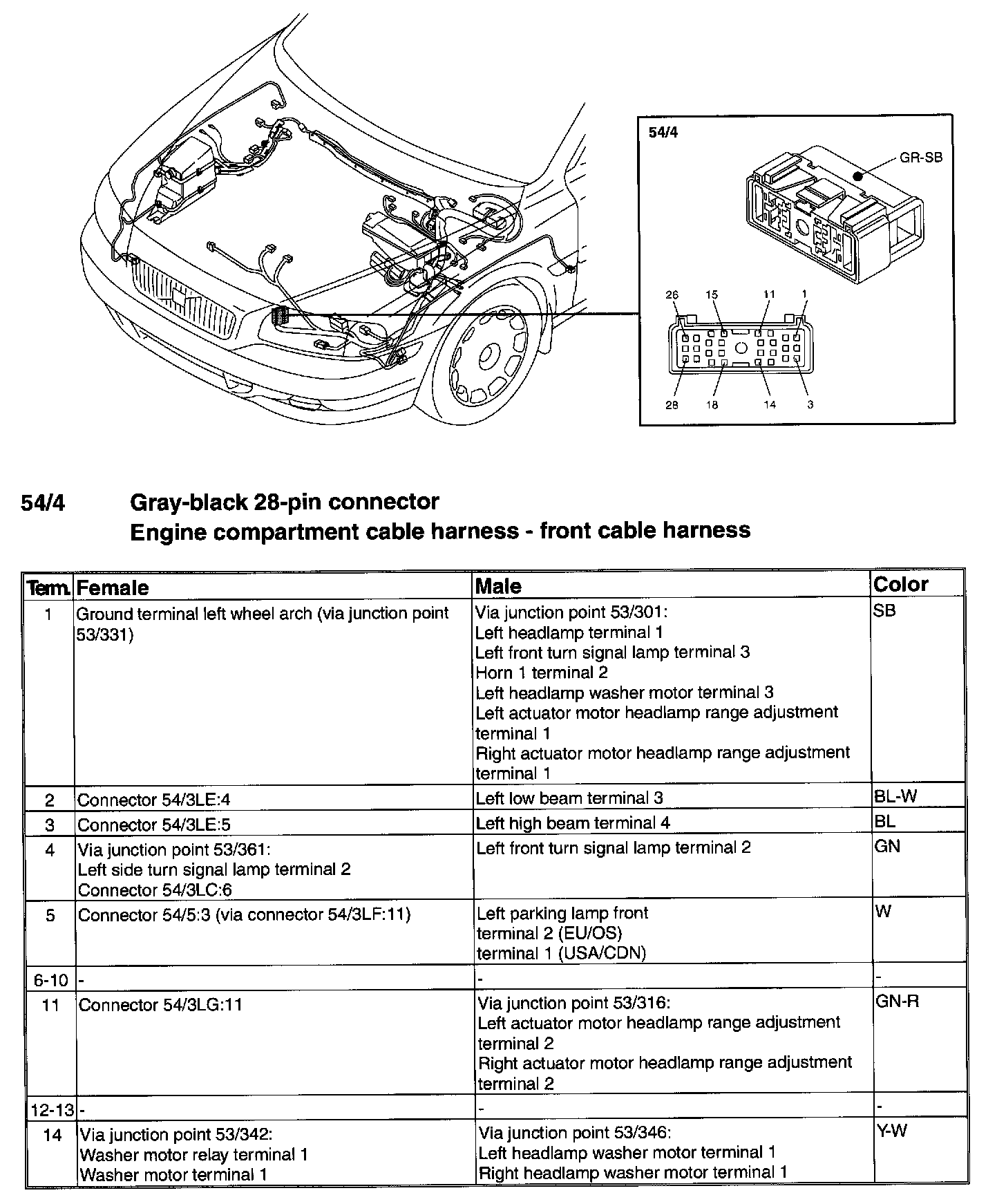

Connector - 54/4 - Terminals 1-14:

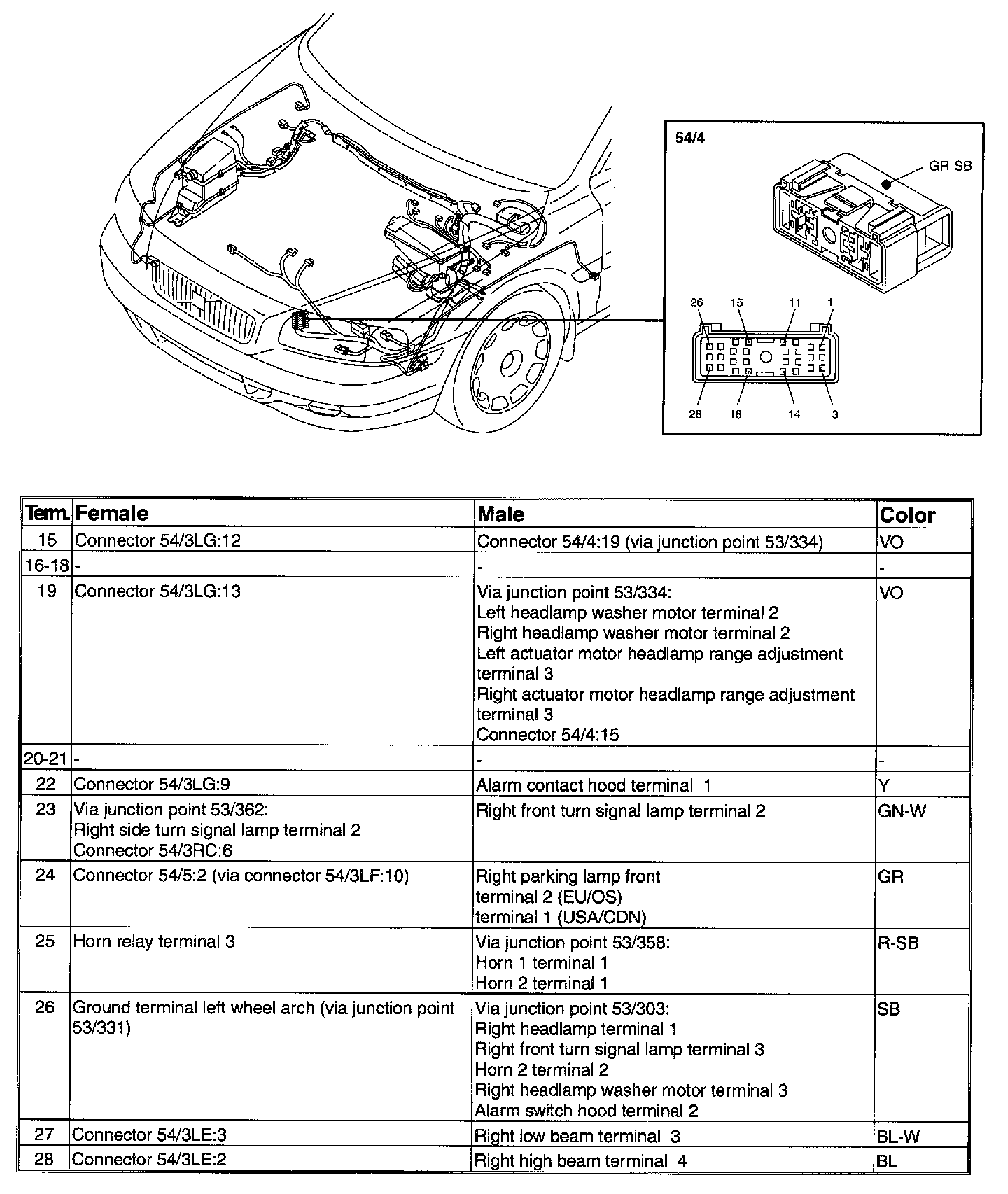

Connector - 54/4 - Terminals 15-28:

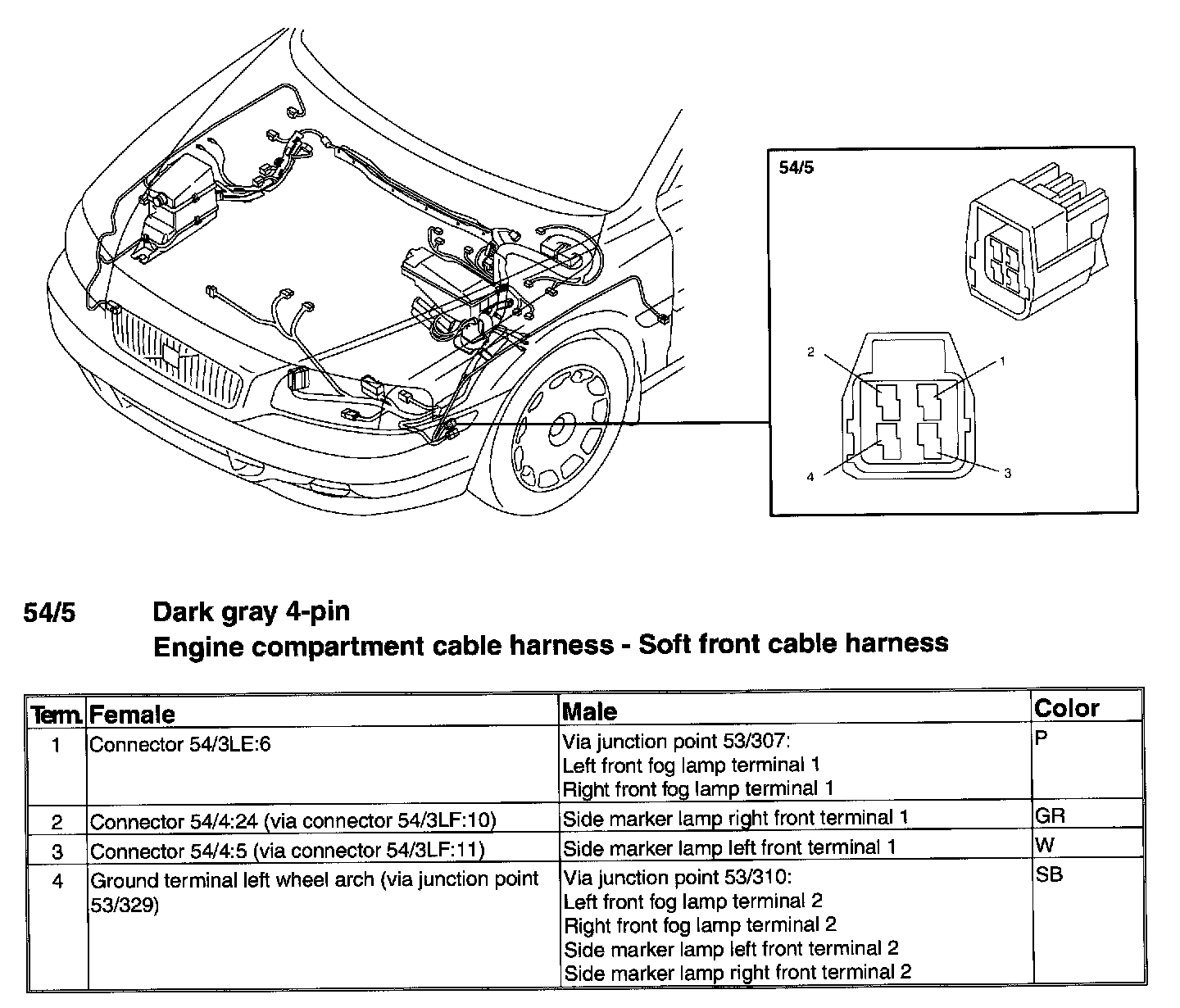

Connector - 54/5:

Connector - 54/9:

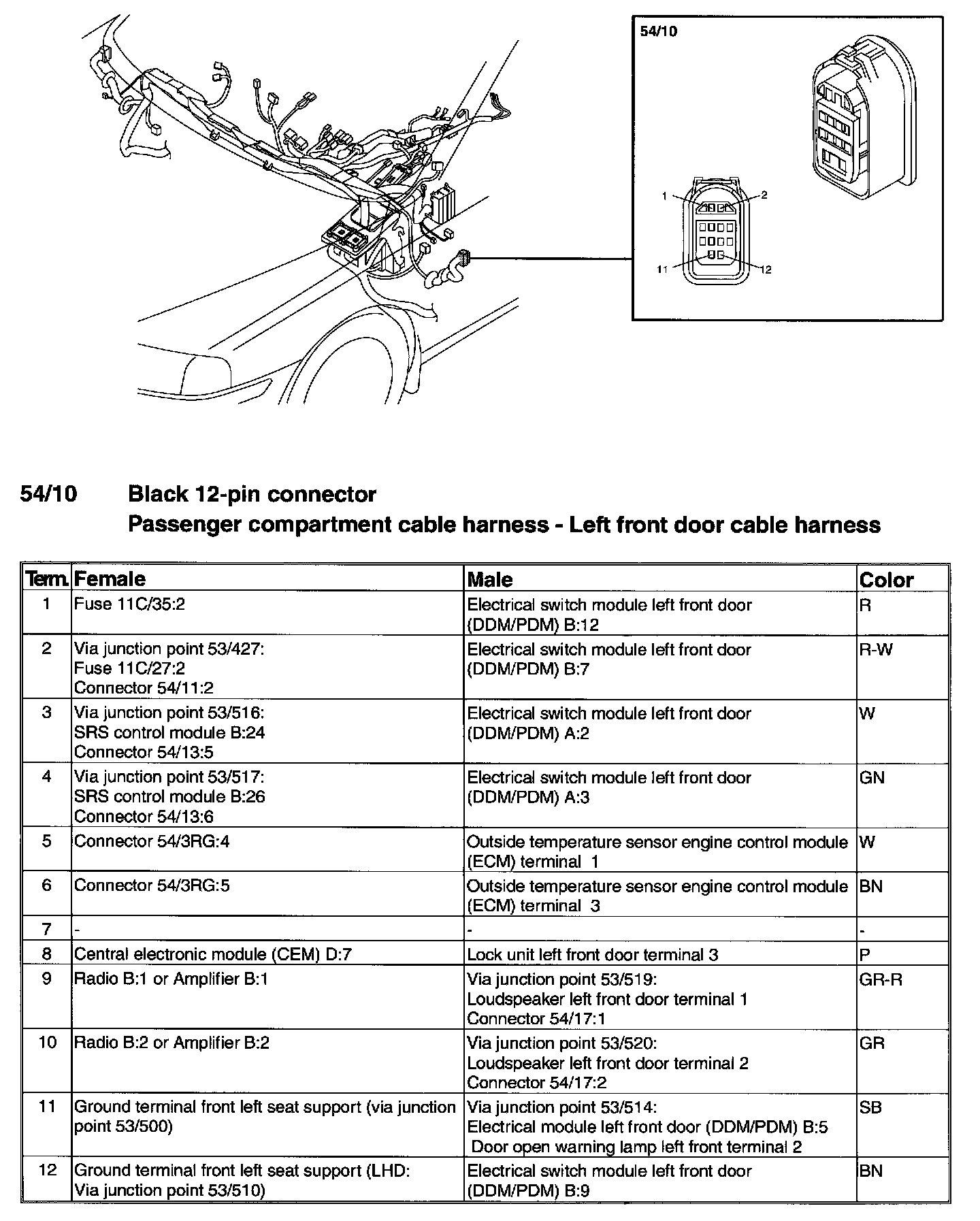

Connector - 54/10:

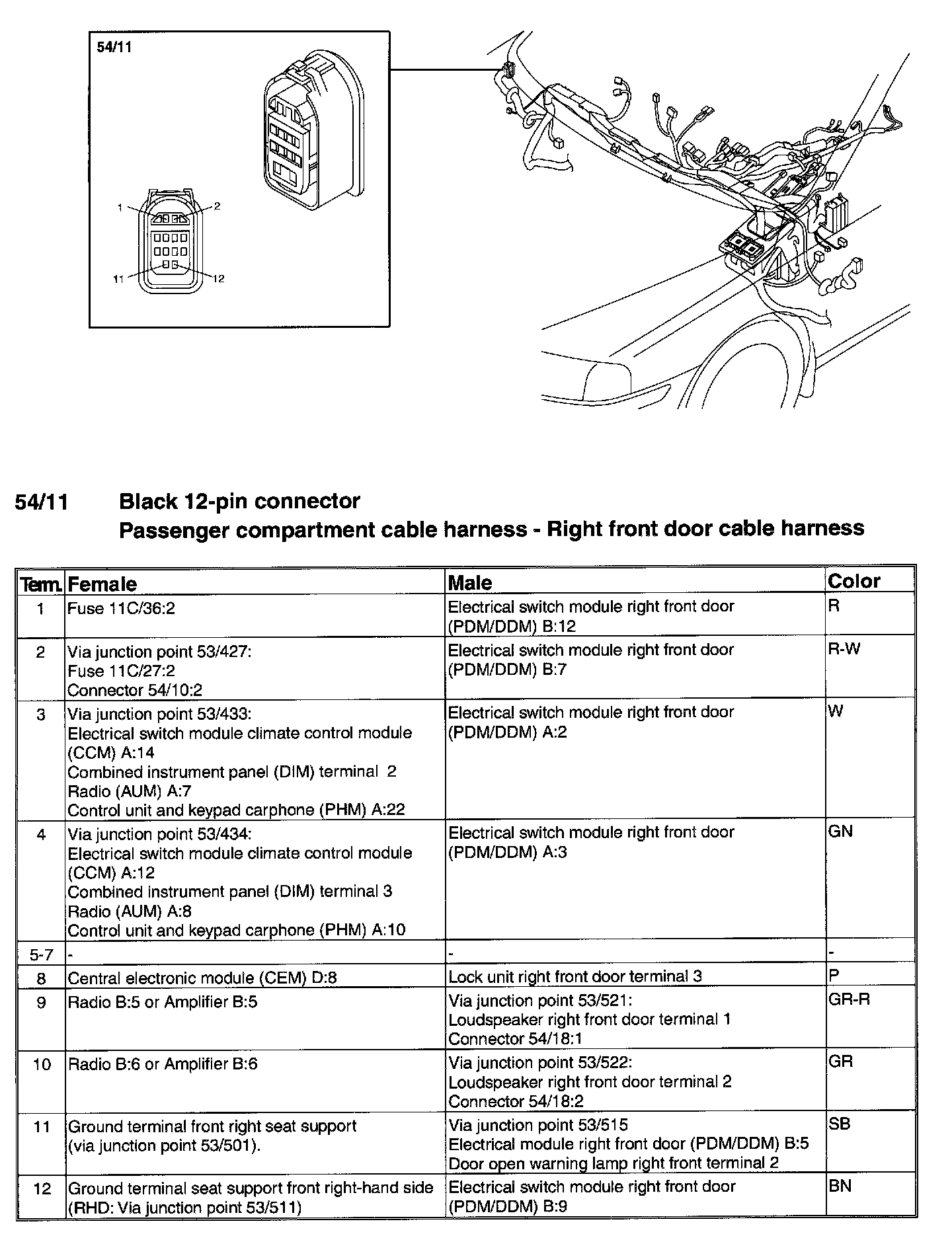

Connector - 54/11:

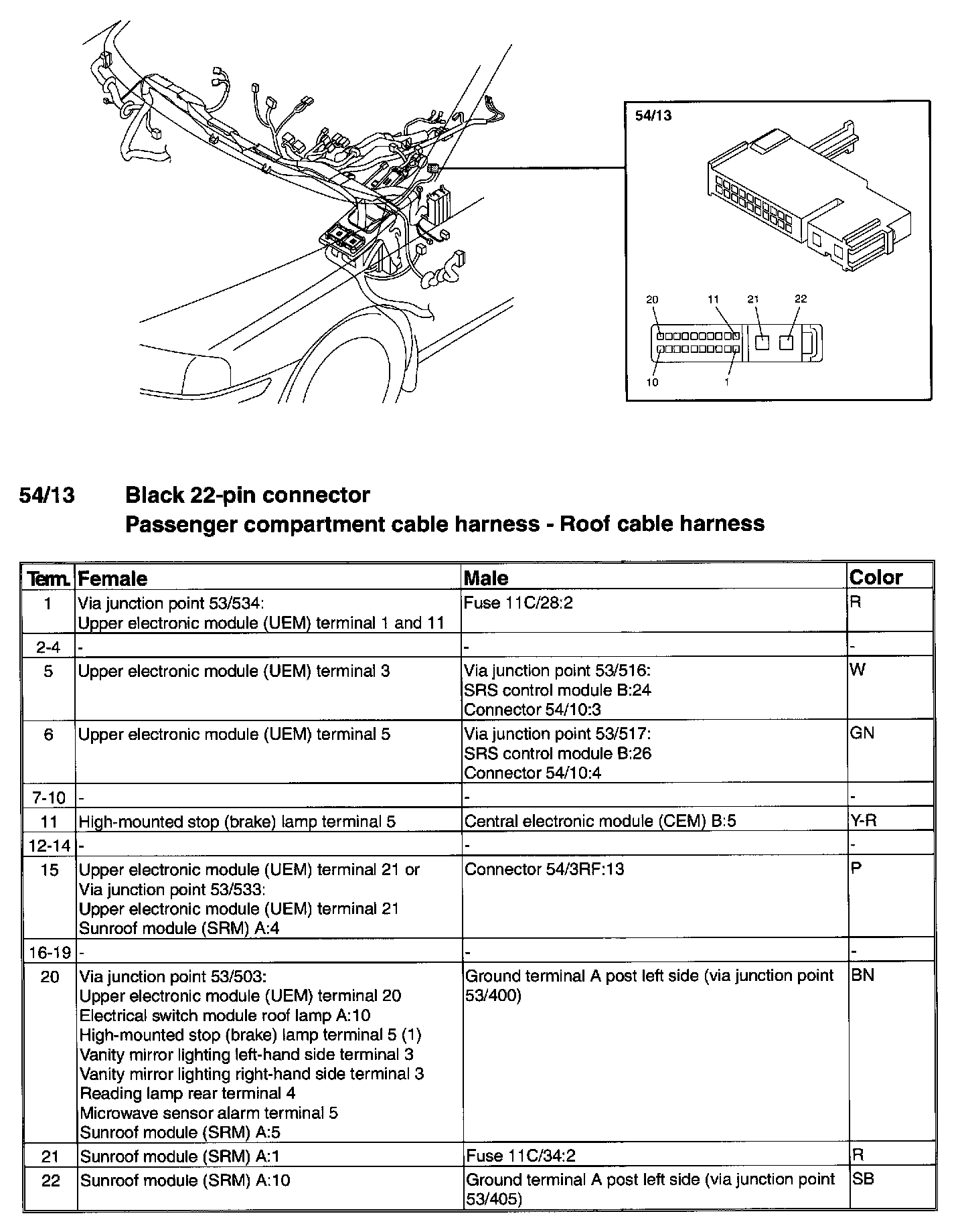

Connector - 54/13:

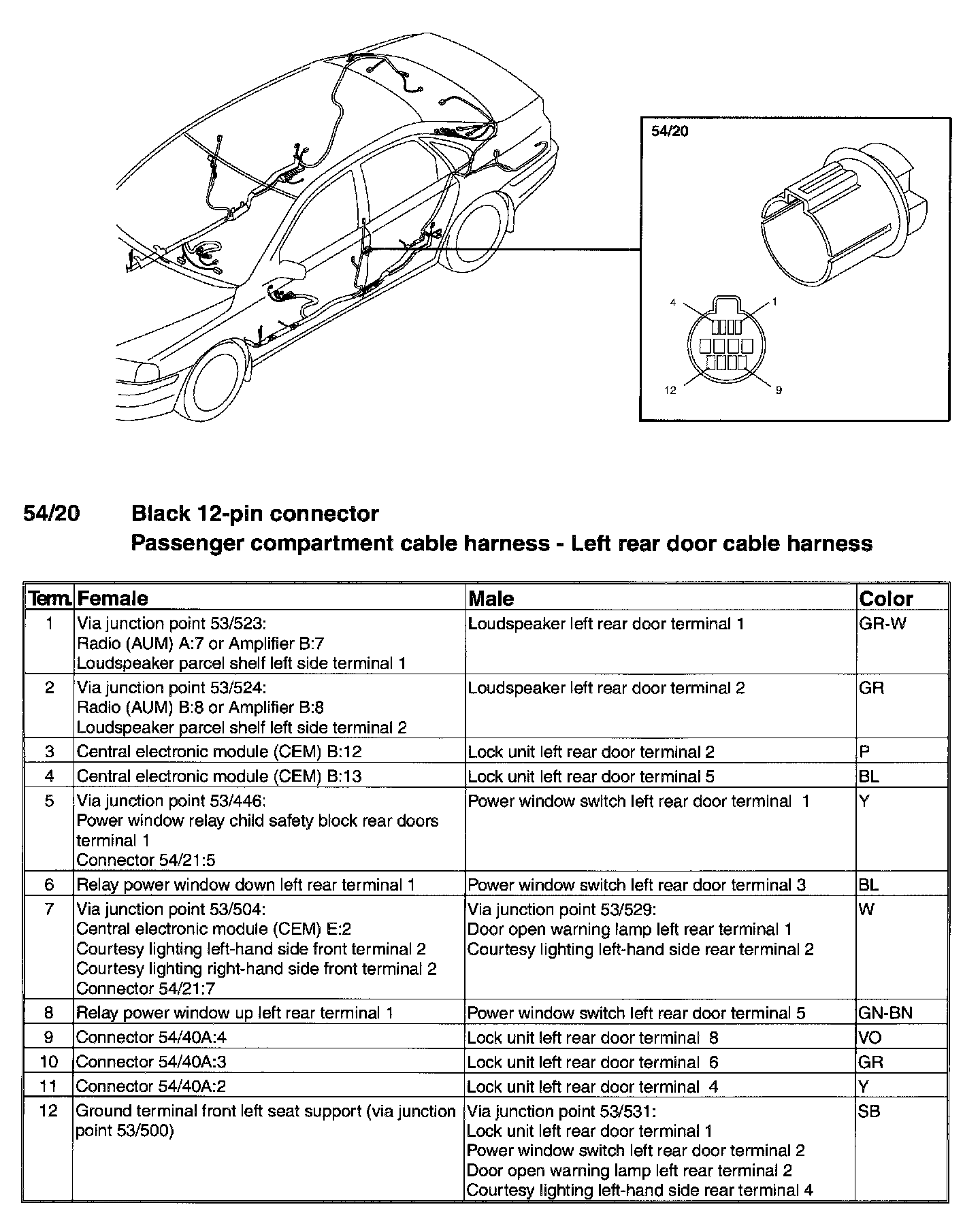

Connector - 54/20:

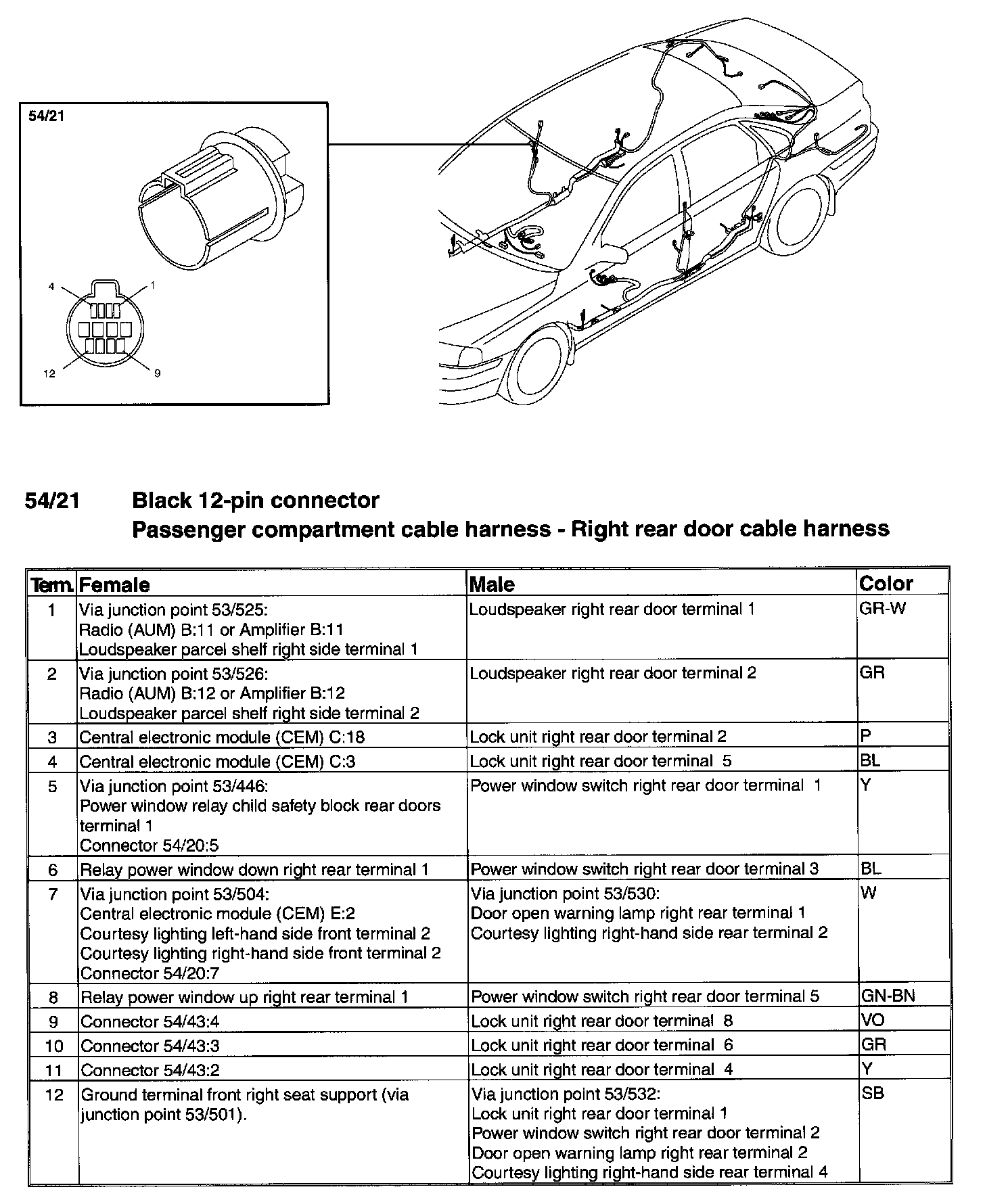

Connector - 54/21:

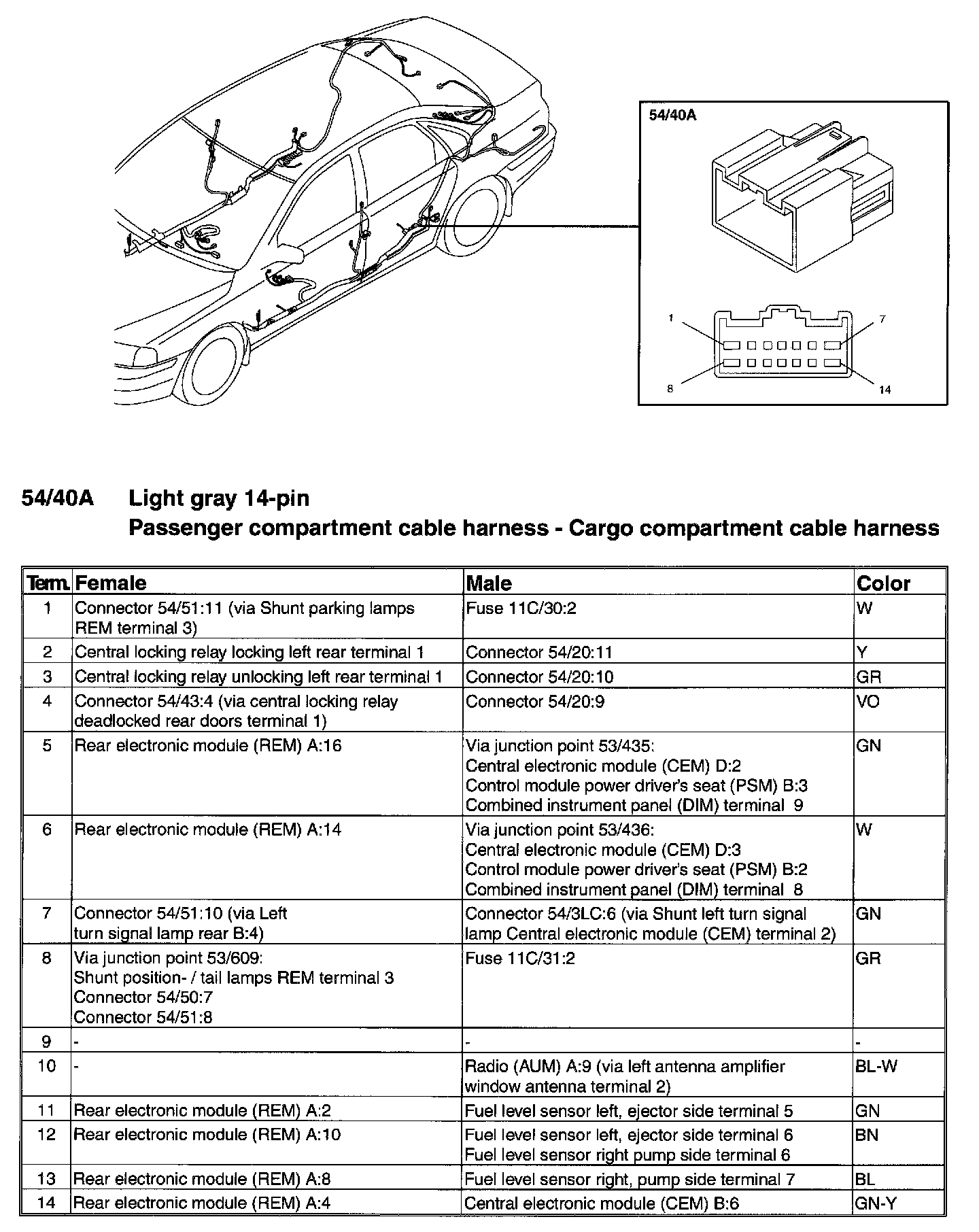

Connector - 54/40A:

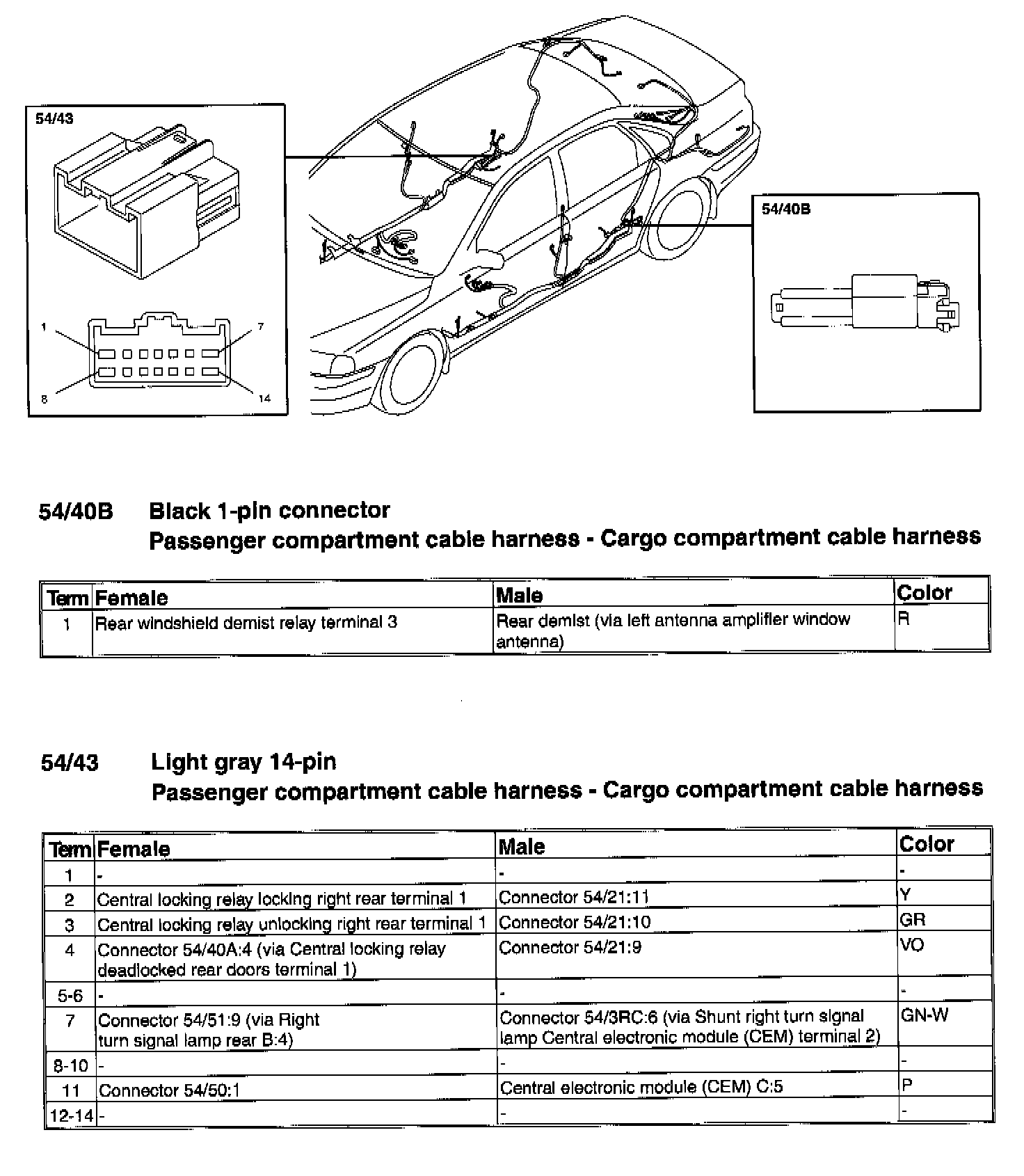

Connector - 54/40B And 54/43:

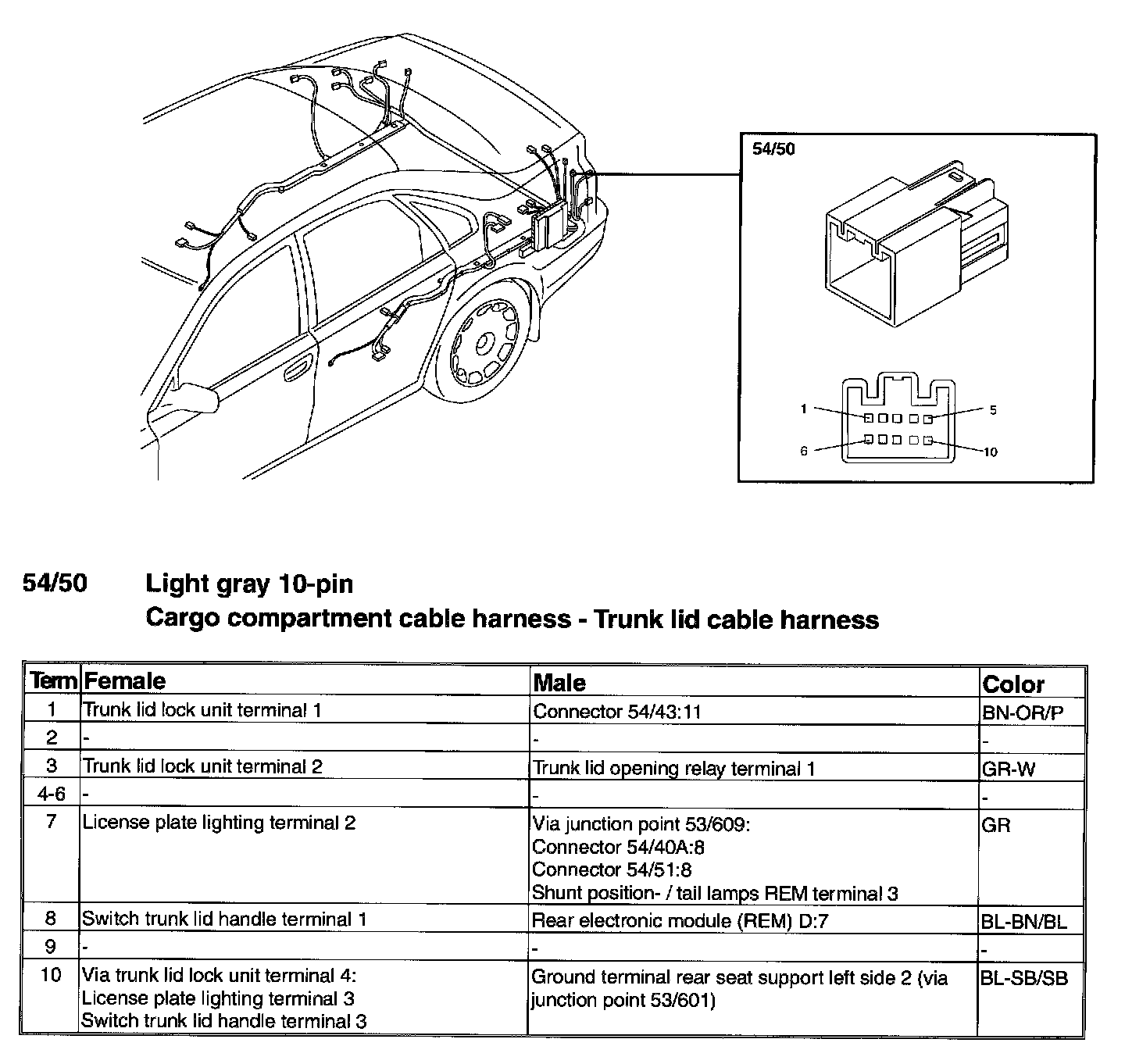

Connector 54/50:
