Cabin Temperature Sensor / Switch: Service and Repair

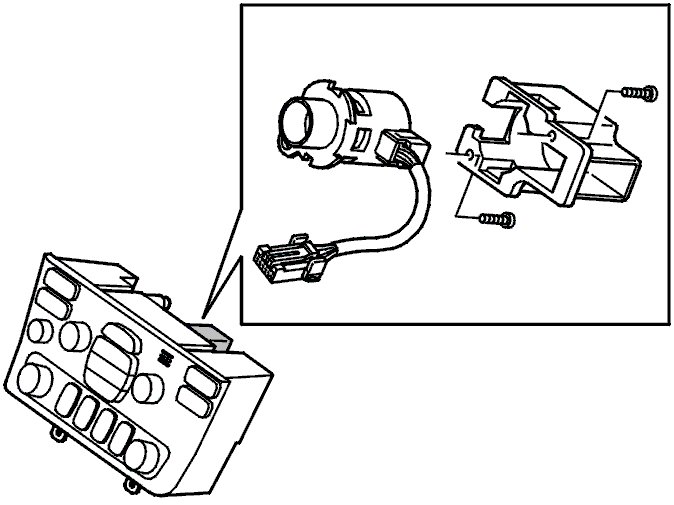

Blower fan motor passenger compartment temperature sensor, replacing

Blower fan motor passenger compartment temperature sensor, replacing

Removal

Note! The information below applies to cars manufactured up to week 48 2001 inclusive. Information for cars manufactured from week 49 2001 inclusive. See Blower fan motor passenger compartment temperature sensor, replacing, L.H.D Service and Repair.





Remove:
- the dashboard environment panel. See Dashboard environment panel (including climate control module (CCM)), replacing Dashboard Environment Panel (including Climate Control Module (CCM)), Replacing
- the connector
- the 2 screws
- the cover and the motor.

Installation
In reverse order
