Windshield Washer Motor: Service and Repair






Washer motor, replacing

Removal

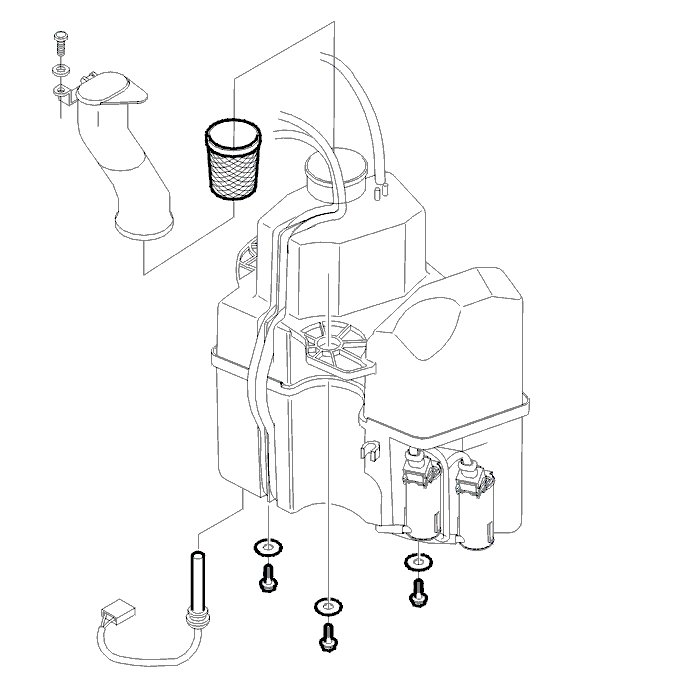

Washer motor




- Remove the windshield washer reservoir.
- Angle the windshield washer reservoir so that the windshield washer fluid does not leak. Alternatively empty the reservoir
- Remove the hose from the motor
- Disconnect the connector from the motor
- Remove the motor from the reservoir.

Installation

Washer motor
- In reverse order.

Note! Before installing the pump, immerse the inlet pipe in water or a soap solution to avoid compressing the rubber seal.
