Powertrain Management: Locations

Location of components

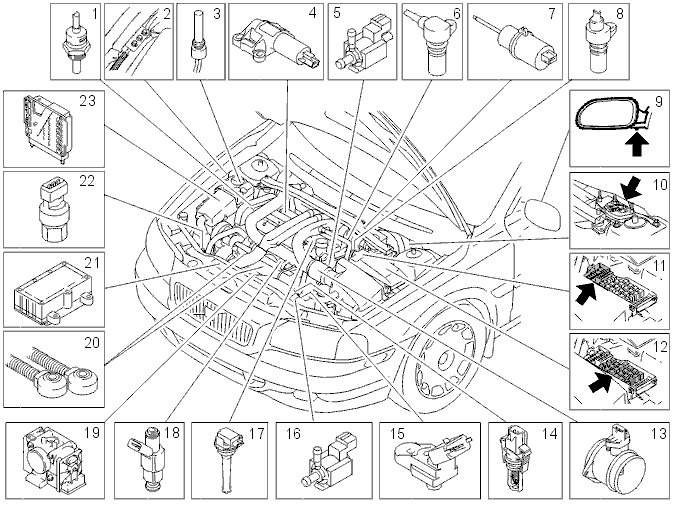

Location of Components:

1. Engine coolant temperature (ECT) sensor
2. Ground terminal
3. Coolant level sensor
4. Camshaft reset valve
5. Turbocharger (TC) control valve
6. Camshaft position sensor (CMP)
7. Brake pedal sensor
8. Engine speed (RPM) sensor
9. Outer temperature sensor
10. Power supply terminal
11. Fusebox
12. Relay box
13. Mass air flow (MAF) sensor
14. Intake air temperature sensor
15. Boost pressure sensor
16. Canister purge (CP) valve
17. Ignition coil
18. Injector
19. Throttle unit
20. Knock sensor (KS)
21. Engine cooling fan (FC) control module
22. A/C pressure sensor
23. Engine control module (ECM).
