Check Cable Between the Selector Switch and the Control Module

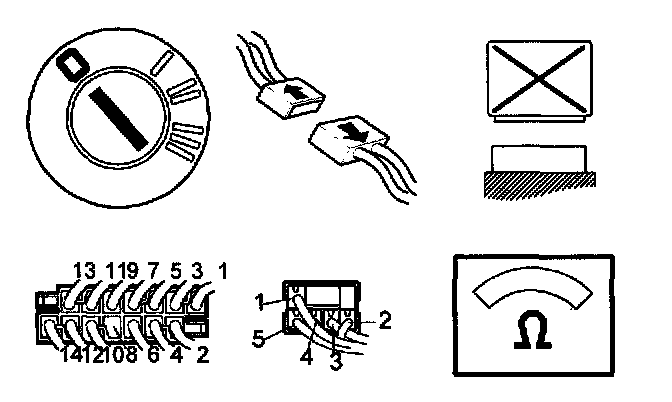

Checking The Cable Between The Selector Switch And The Control Module







- Ignition off.
- Control module disconnected.
- Disconnect the selector switch.

Connect an ohmmeter between selector switch connector terminal 3 and control module connector terminal 6.

The ohmmeter should read approximately 0 [ohm].

OK - Checking the Control Module Connectors

NOT OK - Checking For an Open-Circuit - I
