Fluid - Transfer Case: Service and Repair
Filling Bevel Gear FluidNOTE: If bevel gear has been removed, position the bevel gear so that it is standing on the oil pan (as it is loctated in the car)

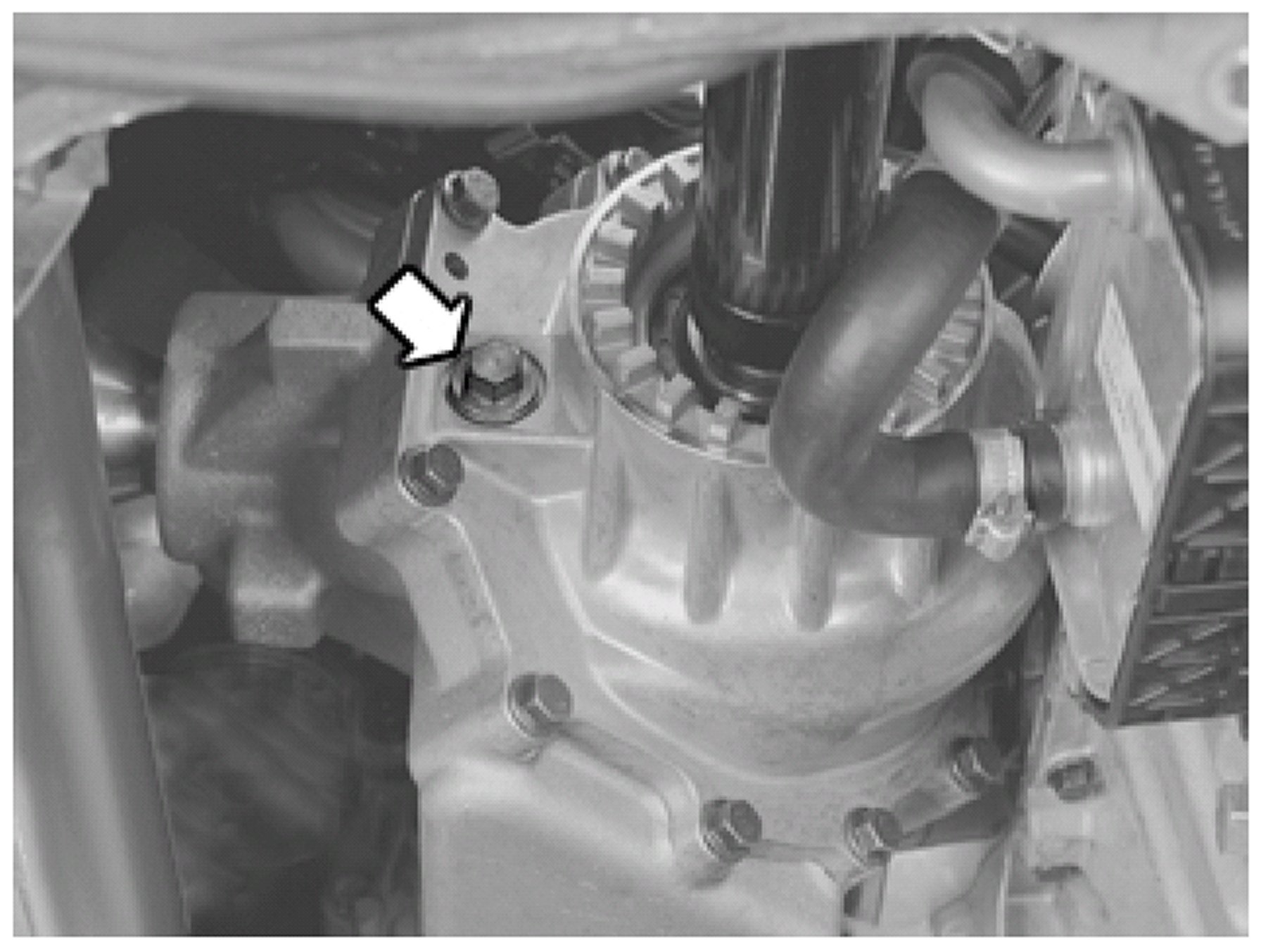

Remove level plug.
Fill with oil (
P/N 1161648) until the oil runs out of the level plug hole.
CAUTION! Then drain
0.2 L of oil
Install the level plug.
Tighten level plug:
35 Nm
