General System Description

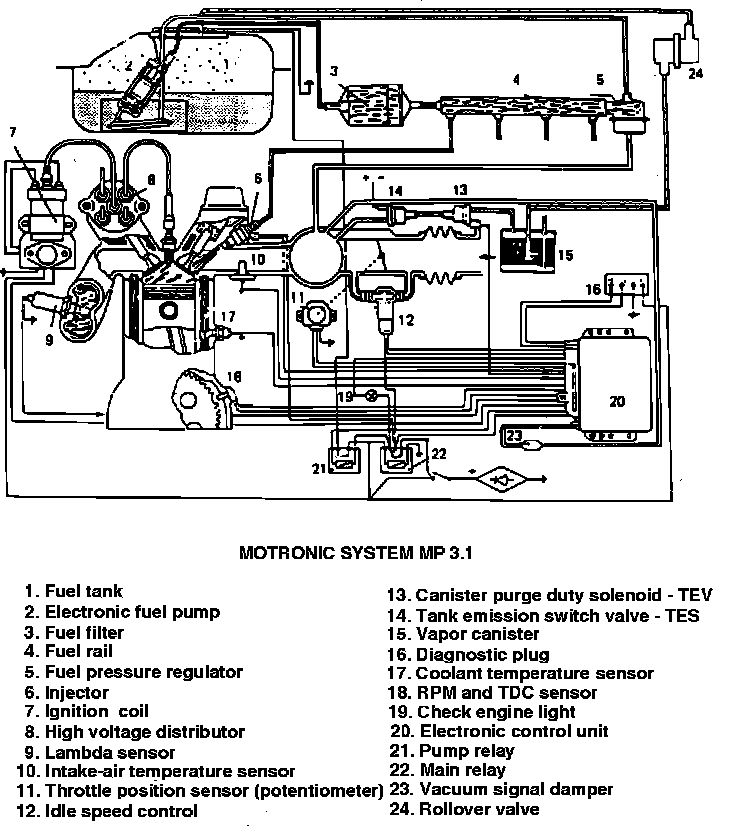

Fig. 1 Bosch Motronic Electronic Engine Control System:
This system,
Fig. 1, incorporates fuel injection and
ignition system control functions into one electronic controller. This data collection center or ECU processes sensor input signals and calculates the optimum values for ignition advance, fuel injection and emissions control by use of programmed data and correction fields.
