Distributor Removal/Installation - Coupe

Removal
1. Remove the engine wire harness and connectors from the distributor.
2. Disconnect the spark plug wires and coil wire from the distributor cap.
3. Remove the distributor hold-down bolt, then remove the distributor from the cylinder head.

Installation

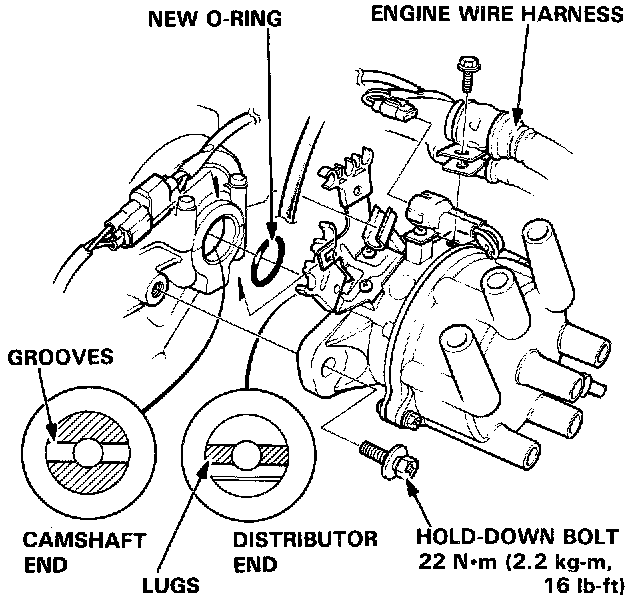

1. Coat a new 0-ring with engine oil then install it.





2. Slip the distributor into position.

NOTE: The plugs on the end of the distributor and its mating grooves in the camshaft end are both offset to eliminate the possibility of installing the distributor 180° out of time.

3. Install the hold-down bolt and tighten.
4. Connect the engine wire harness and connector to the distributor.





5. Connect the coil wire and the spark plug wires as shown.
