Transmission Mount: Service and Repair

Transmission Mount Replacement

1. Loosen the upper torque rod mounting bolt (A).





2. Remove the air cleaner housing assembly.
3. Remove the heater hoses from the clamps (A), then remove the bolt (B) securing the heater hose clamp bracket.





4. Support the transmission with a jack and wood block under the transmission.

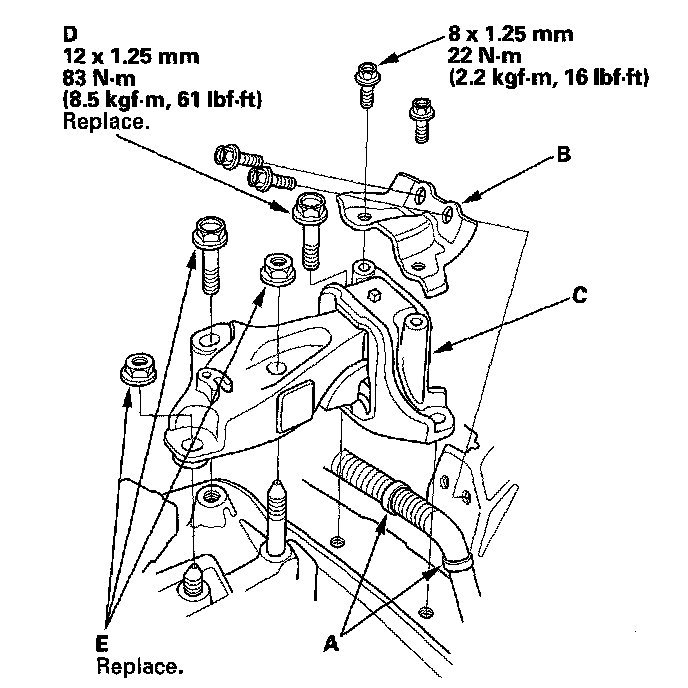

5. Remove the harness clamps (A), then remove the transmission mount stiffener (B) and transmission mount (C).





6. Install the transmission mount with the new mounting bolts (D), then install the transmission mount stiffener and harness clamps.
7. Loosely tighten the new bolt and nuts (E).
8. Raise the lift to full height.
9. Loosen the lower torque rod mounting bolt (A).





10. Lower the vehicle on the lift.
11. Tighten the transmission mounting bolt and nuts.





12. Raise the lift to full height.
13. Tighten the lower torque rod mounting bolt.





14. Lower the vehicle on the lift.
15. Install heater hose clamp bracket (A), then install the heater hoses to the clamps (B).





16. Install the air cleaner housing assembly.
17. Tighten the upper torque rod mounting bolt.
