Shift Lock Stop/Shift Lock Stop Cushion Replacement

Shift Lock Stop/Shift Lock Stop Cushion Replacement

1. Remove the shift lock solenoid Shift Lock Solenoid Replacement.

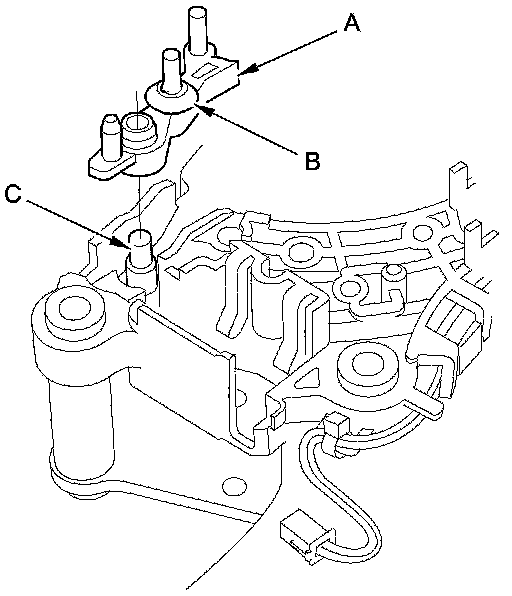

2. Remove the shift lock stop (A) and the stop cushion (B) as a set.





3. Apply silicone grease to the pin (C) on the shift lever bracket, and install a new shift lock stop over the pin.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

4. Install a shift lock solenoid Shift Lock Solenoid Replacement.
