EGR Maintenance Light: Service and Repair

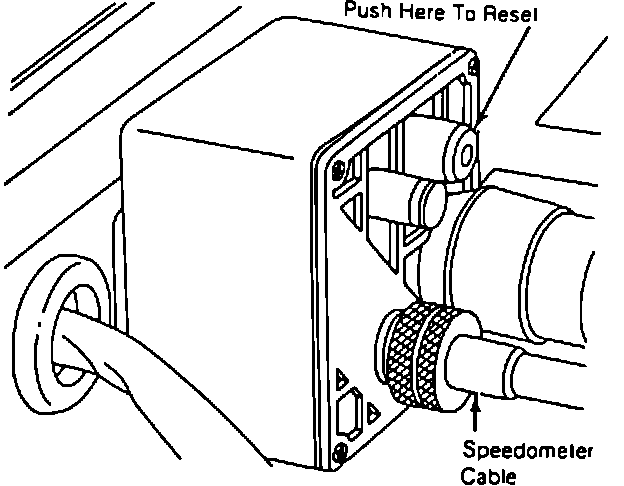

Fig. 1 Resetting Mileage Counter For Maintenance Reminder Lamps:
After completing the required service, turn off EGR indicator lamp
[1] by depressing white button on elapsed mileage counter. The elapsed mileage counter is located on the firewall behind the instrument cluster,
Fig. 1._________________________________
[1]:
When equipped with EGR Valve.
