Automatic Transmission/Transaxle

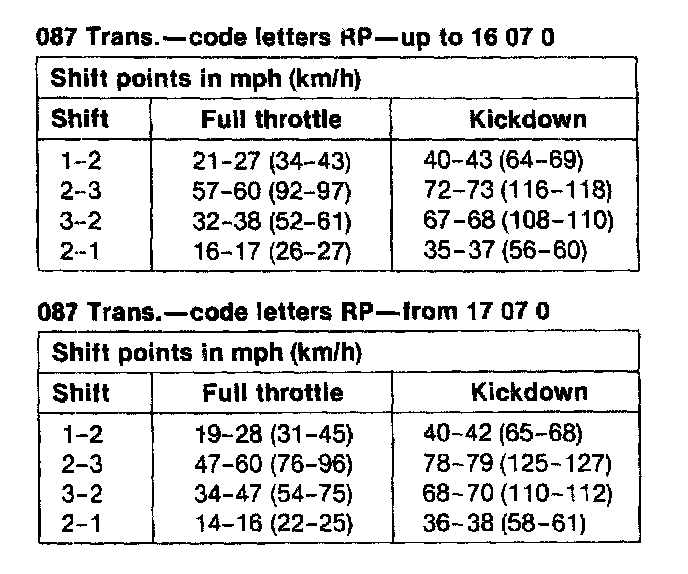

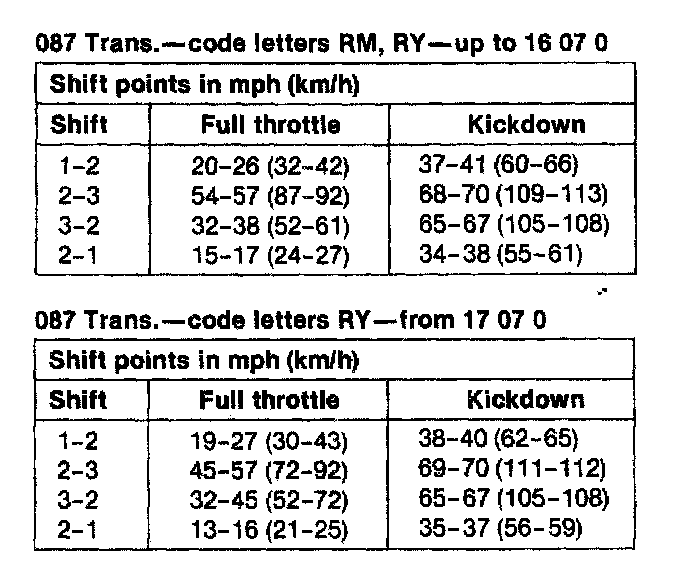

A/T Type 087 Shift Points, (Full Throttle / Kickdown):

A/T Type 087 Shift Points, (Full Throttle / Kickdown):

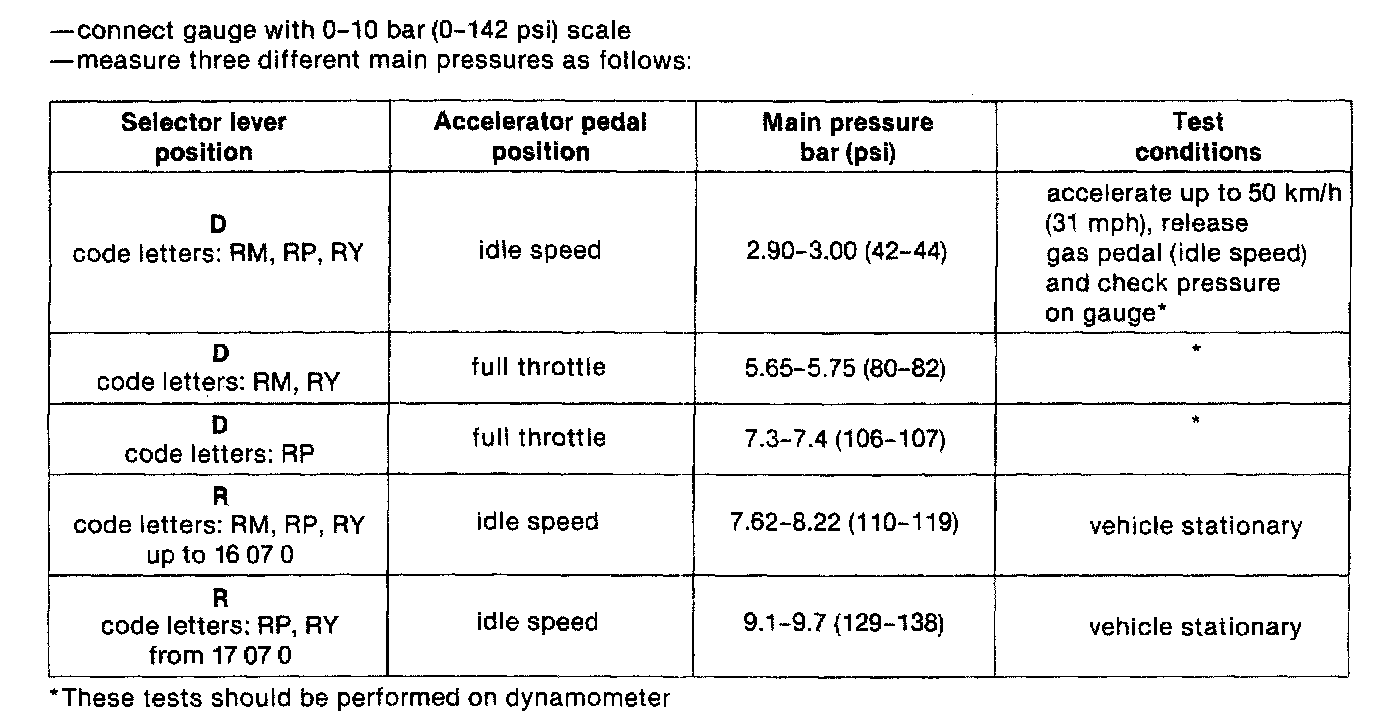

A/T Type 087 Main Pressure Operation:

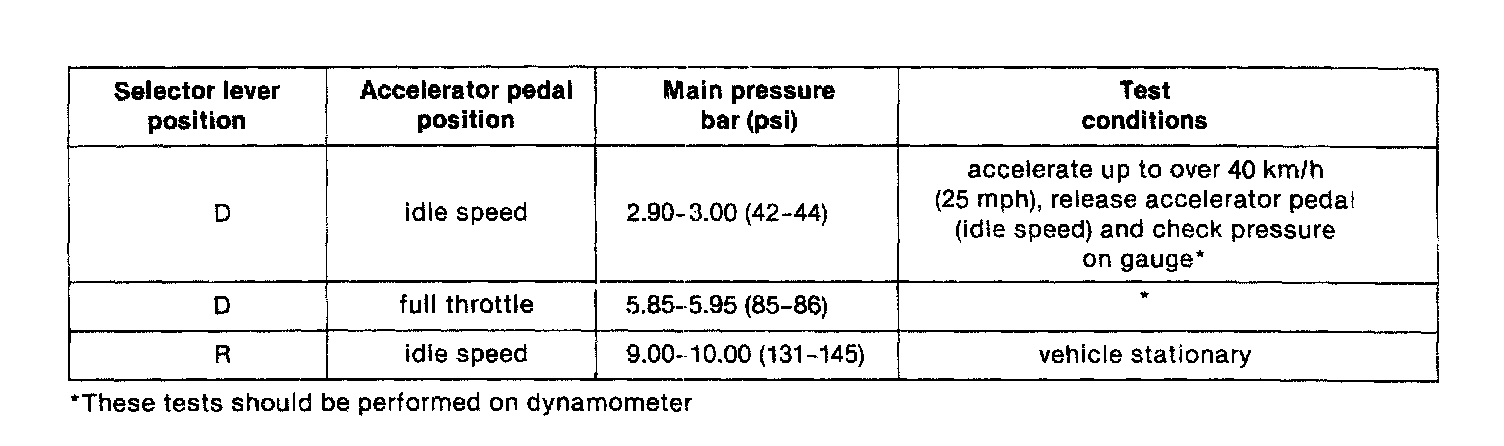

A/T Type 087 E-mode, Main Pressure Operation:

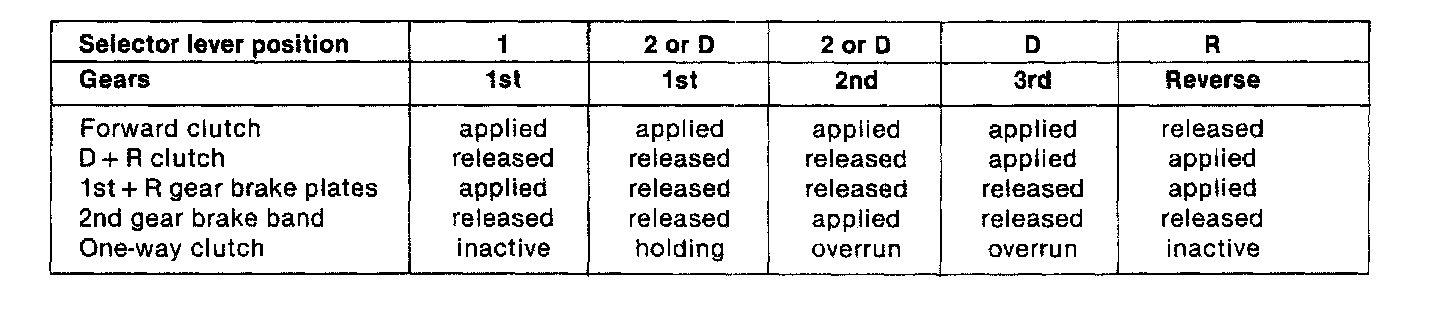

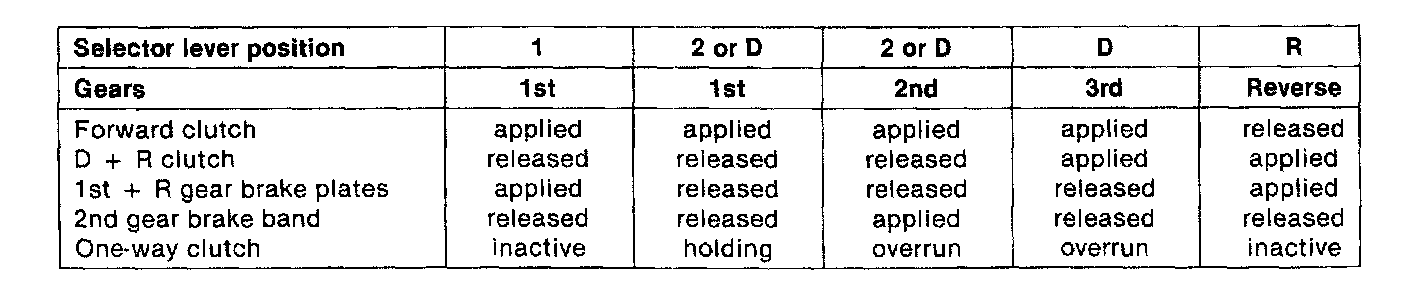

A/T Type 087 Clutch Brake Band Operation:

A/T Type 087 E-mode, Clutch Brake Band Operation:

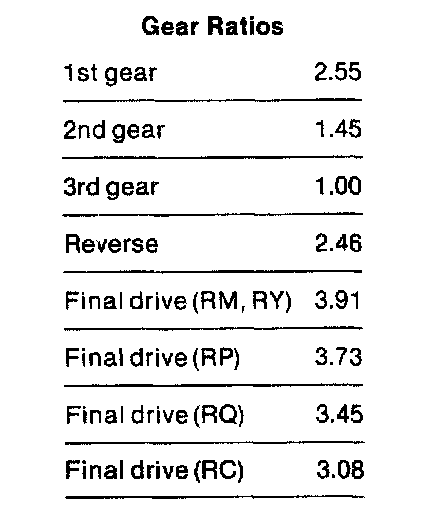

A/T Type 087 Gear Ratios:

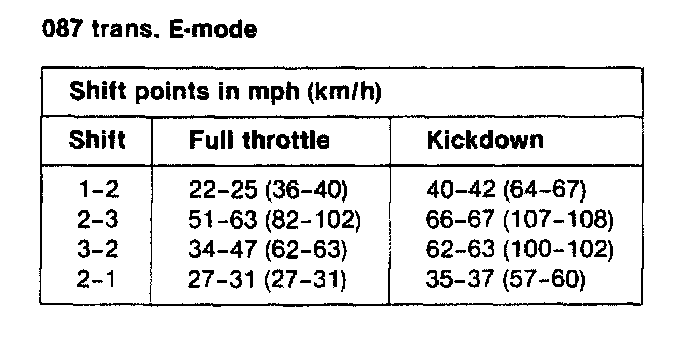

A/T Type 087 E-mode, Shift Points:

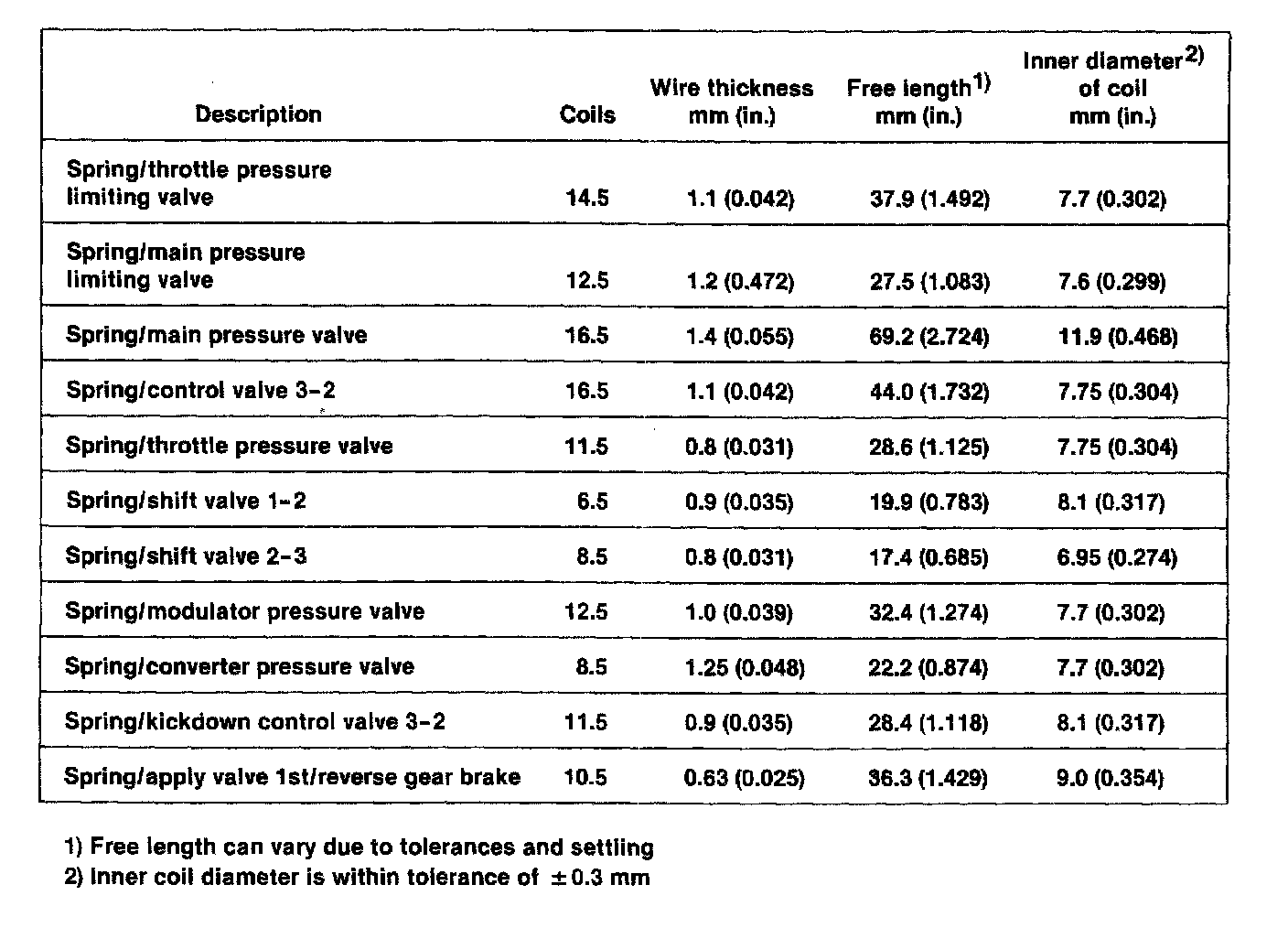

A/T Type 087, Valve Body Spring Table:

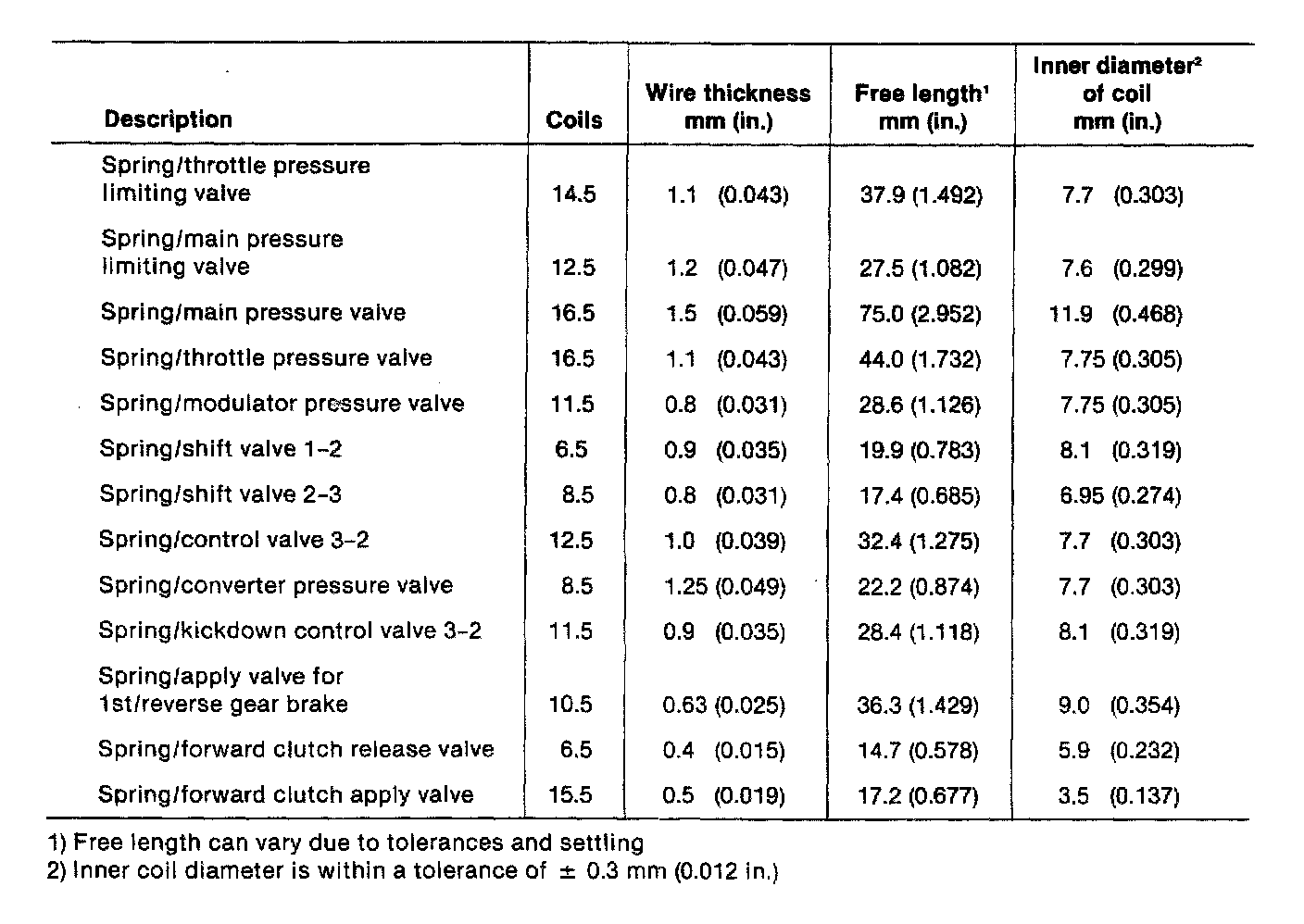

A/T Type 087 E-mode, Valve Body Spring Table:
