Passenger Assist Handle: Service and Repair

Assist Handle Replacement

Removal Procedure

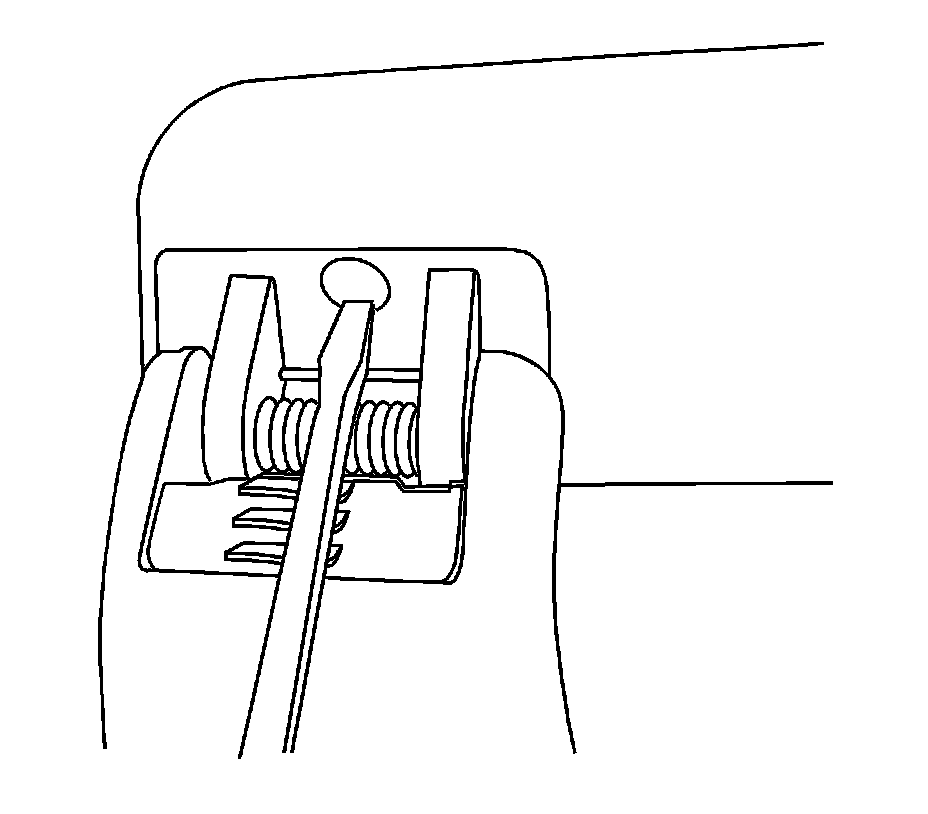

1. Pull down the assist handle to reveal the 2 service holes.

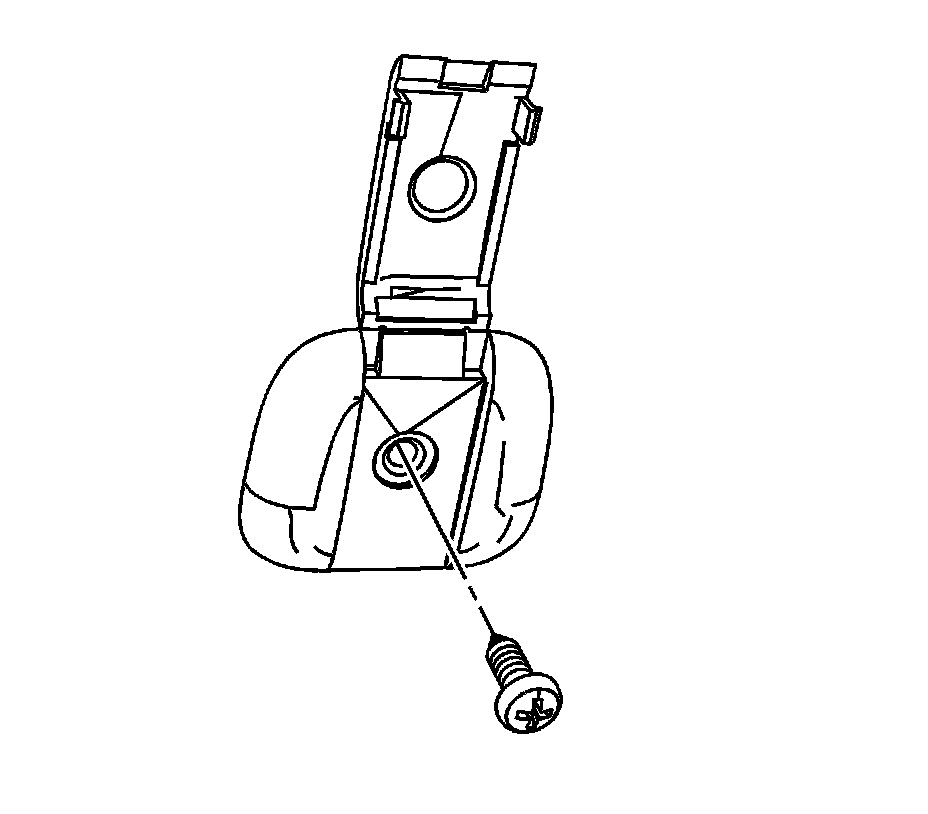

2. Remove the screws and washers securing the assist handle to the retaining clip.
3. Remove the assist handle from the vehicle.
4. If replacing the entire assist handle assembly, Remove the retaining clips from the sheet metal.

Installation Procedure

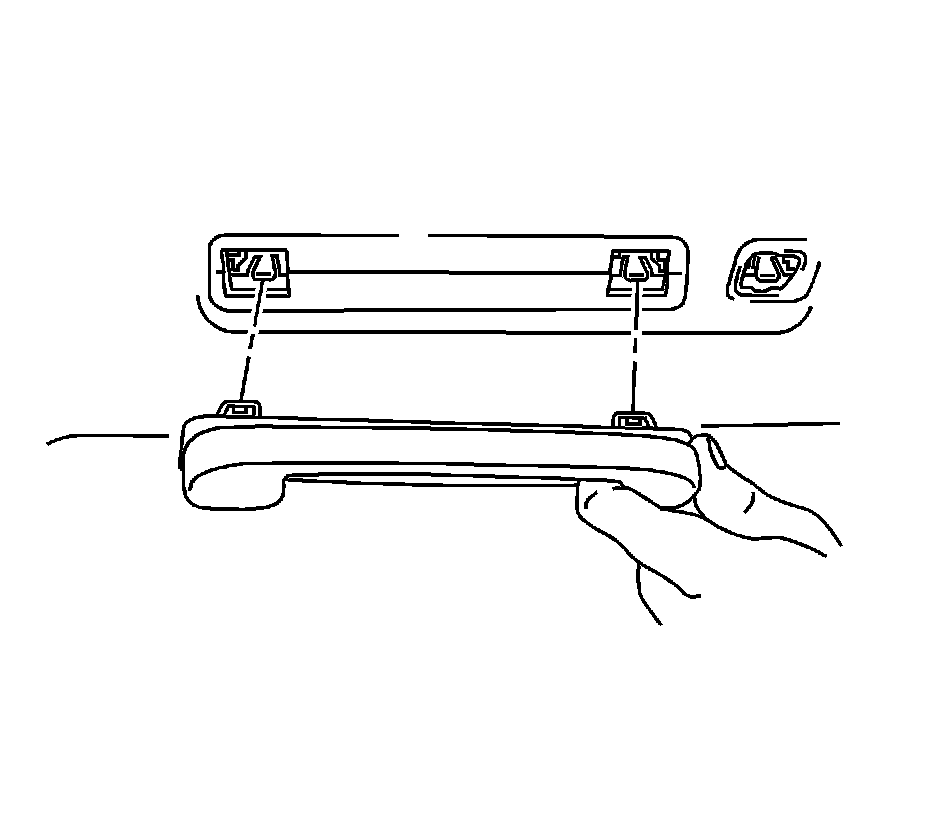

1. Position the assist handle over the retaining clips.






Notice: Refer to Fastener Notice.

2. Install the assist handle by installing 2 screws and washers into the retaining clips.

Tighten the assist handle screws to 1.2 N.m (10 lb in).




3. In replacing the entire coat hook assembly, press the coat hook and the retaining clip as an assembly into the sheet metal opening until the clip locks into position.
