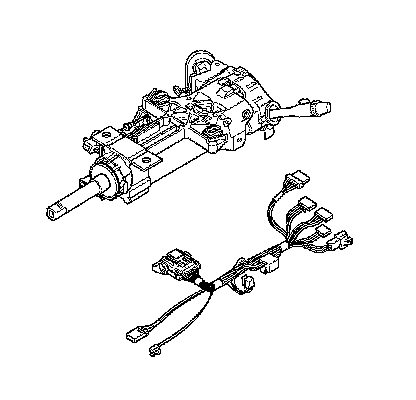

Steering Column Wire Harness Assembly Replacement



Steering Column Wire Harness Assembly Replacement

Removal Procedure





Caution: Refer to SIR Caution.

Important: Check the main wiring harness assembly for burned 2 amp fuses before doing this procedure.

1. Disable the SIR coil.
2. Remove the steering wheel from the column.
3. Remove the steering column from the vehicle.
4. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage Inspection.
5. Remove the upper and lower trim cover.
6. Disconnect all connectors attached to the wire harness assembly.
7. Remove the bulkhead connector.

Installation Procedure





Caution: Refer to SIR Inflator Module Coil Caution.

1. Slide the bulkhead connector into the steering column.
2. Connect all of the connectors to the wire harness assembly.
3. Install the upper and lower trim cover.
4. Install the steering column into the vehicle.
5. Install the steering wheel onto the steering column.
6. Enable the SIR system.
