Air Inlet Grille Panel Replacement



AIR INLET GRILLE PANEL REPLACEMENT

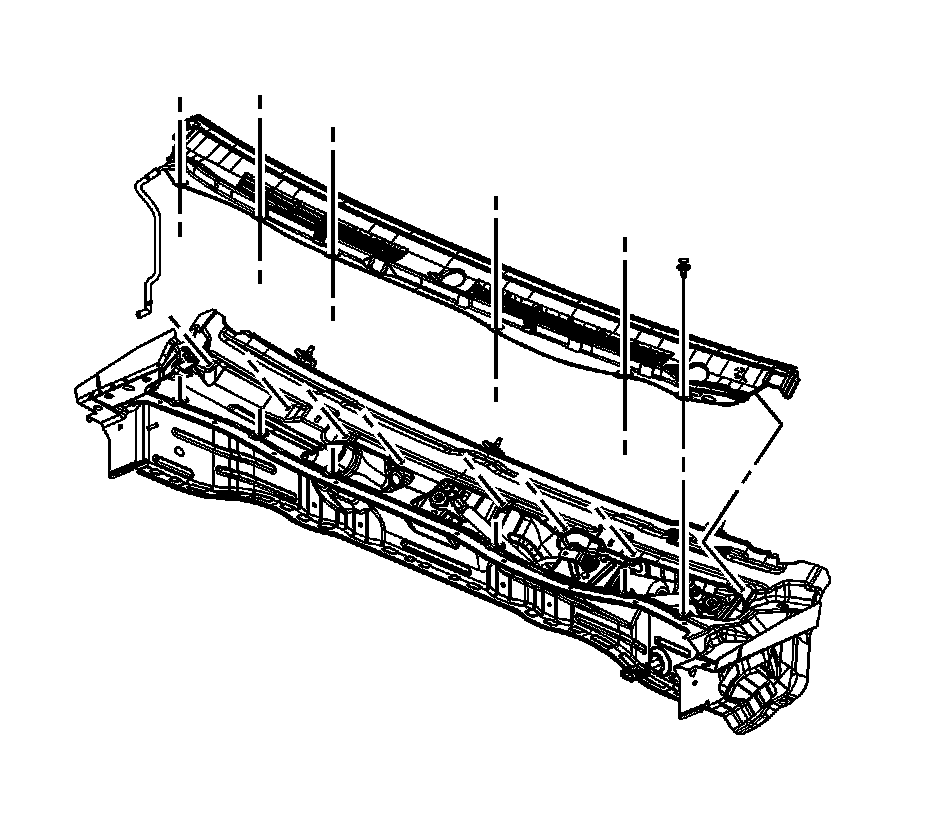

REMOVAL PROCEDURE




1. Remove the windshield wiper arms.
2. Remove the air inlet grill panel push-pin retainers.
3. Disconnect the washer hose.
4. Remove the air inlet grille panel from the vehicle.

INSTALLATION PROCEDURE




1. Position the air inlet grille panel to the vehicle.
2. Connect the washer hose.
3. Install the push-pin retainers.
4. Install the windshield wiper arms.
