Rear Seat Back Replacement



Rear Seat Back Replacement

Removal Procedure

1. Remove the rear seat from the vehicle.

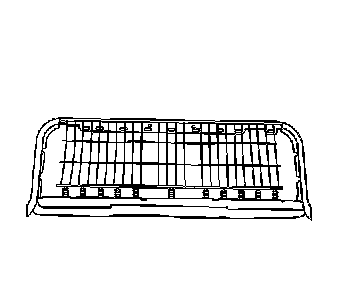

2. Remove the seat back cover and pad.






Important: Note the position and the length of the bolts removed. This will assist with reassembly.

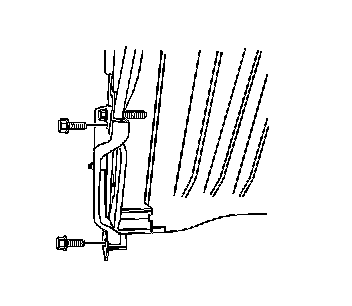

3. Remove the right and left bolts that retain the seat back frame to the seat back hinges.




4. Remove the seat back frame.

Installation Procedure




1. Install the seat back frame.






Notice: Refer to Fastener Notice.

2. Install the bolts that retain the seat back frame to the seat back hinges in the locations noted during disassembly.

Tighten the bolts to 30 N.m (22 lb ft).

3. Install the seat back cover and pad.
4. Install the rear seat in the vehicle.
