Fog/Driving Lamp Bulb: Service and Repair

REAR FOG LAMP BULB REPLACEMENT

REMOVAL PROCEDURE

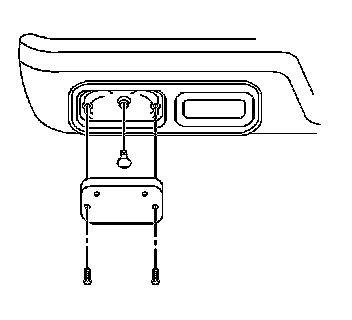

1. Remove the screws retaining the lens to the lamp.
2. Remove the lens from the lamp.
3. Gently push in on the bulb and turn the bulb 1/4 turn counterclockwise.
4. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Gently push in on the bulb and turn the bulb 1/4 turn clockwise.
3. Install the lens to the lamp assembly.

4. NOTE: Refer to Fastener Notice.

Install the screws to retain the lens to the lamp assembly.

Tighten the screws to 1.5 N.m (13 lb in).
