Hood Sensor/Switch (For Alarm): Service and Repair

Hood Ajar Indicator Switch Replacement

Removal Procedure

Caution: Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

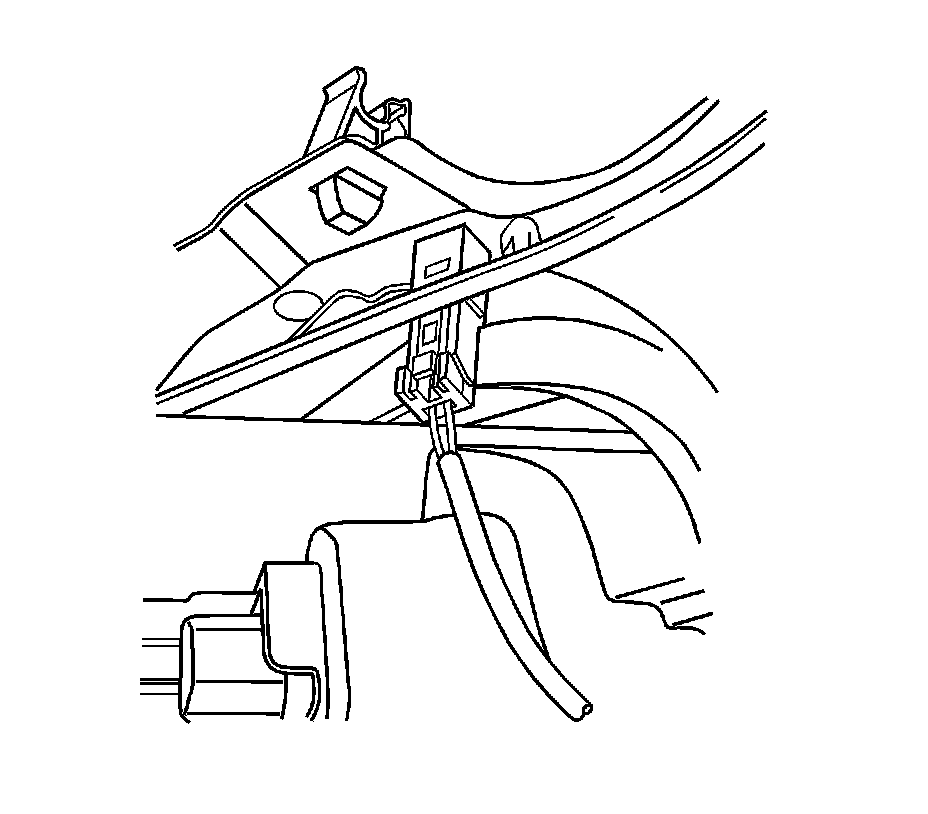

2. Disconnect the hood open switch connector.

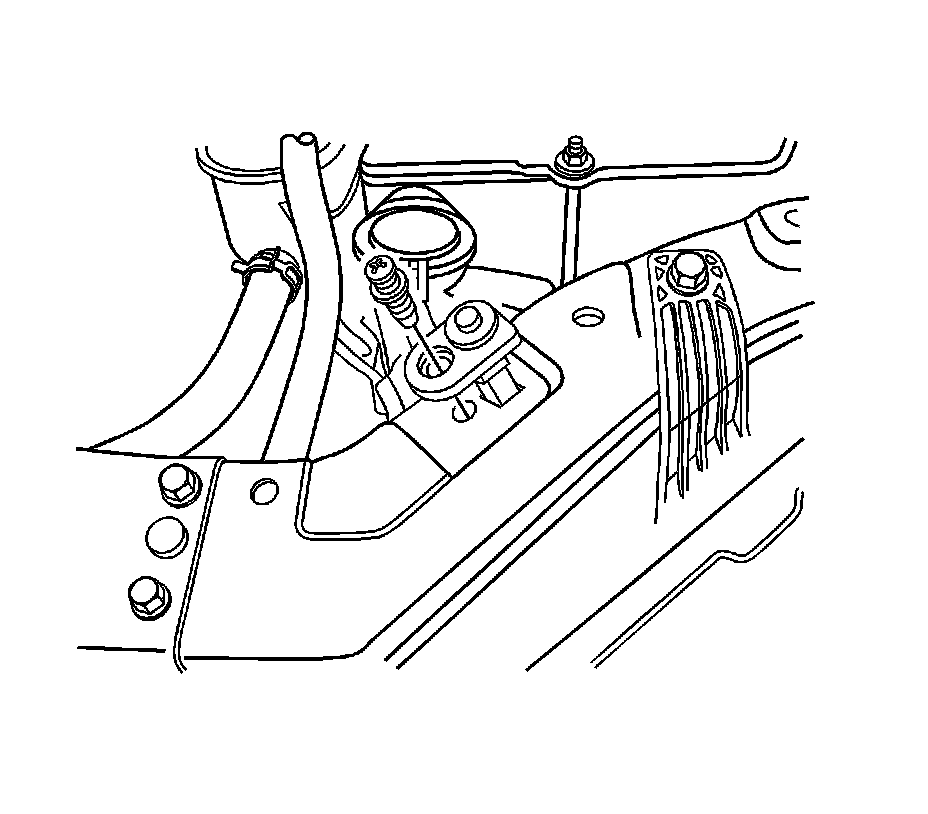

3. Remove the clip and hood open switch.

Installation Procedure

1. Install the hood open switch and clip.
2. Connect the hood open switch connector.

3. Connect the negative battery cable.
