Brake Pedal Assy: Service and Repair




Brake Pedal Assembly Replacement

Removal Procedure





Important: The left-hand drive model is shown. The right-hand drive model is similar.

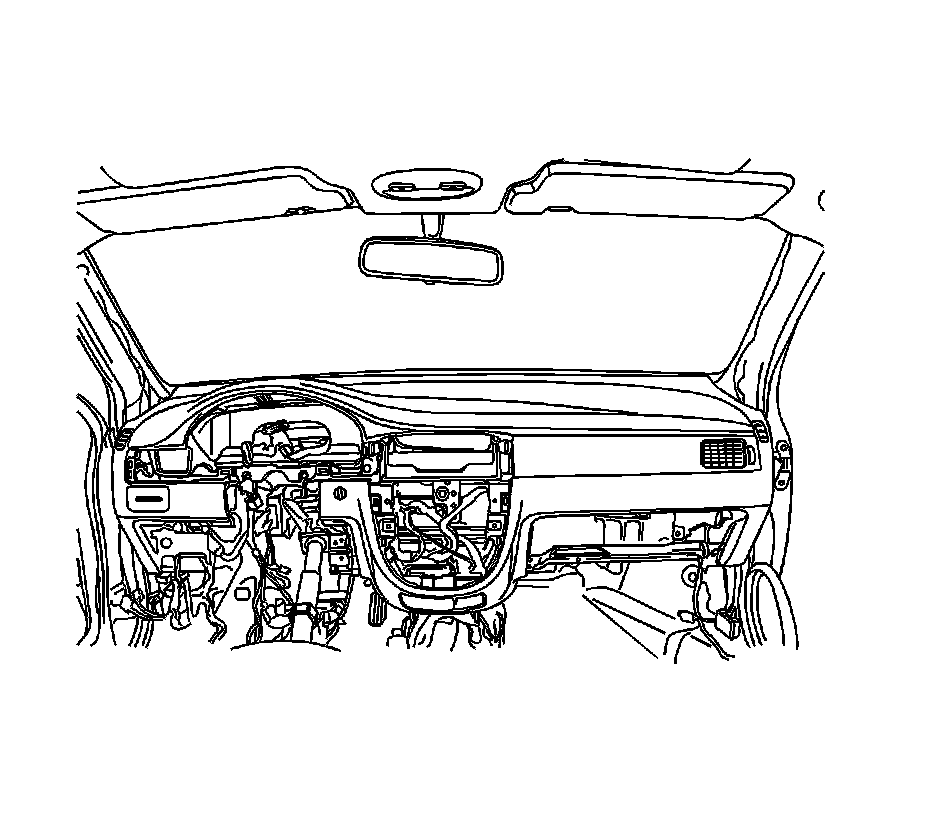

1. Remove the instrument panel (I/P). Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.

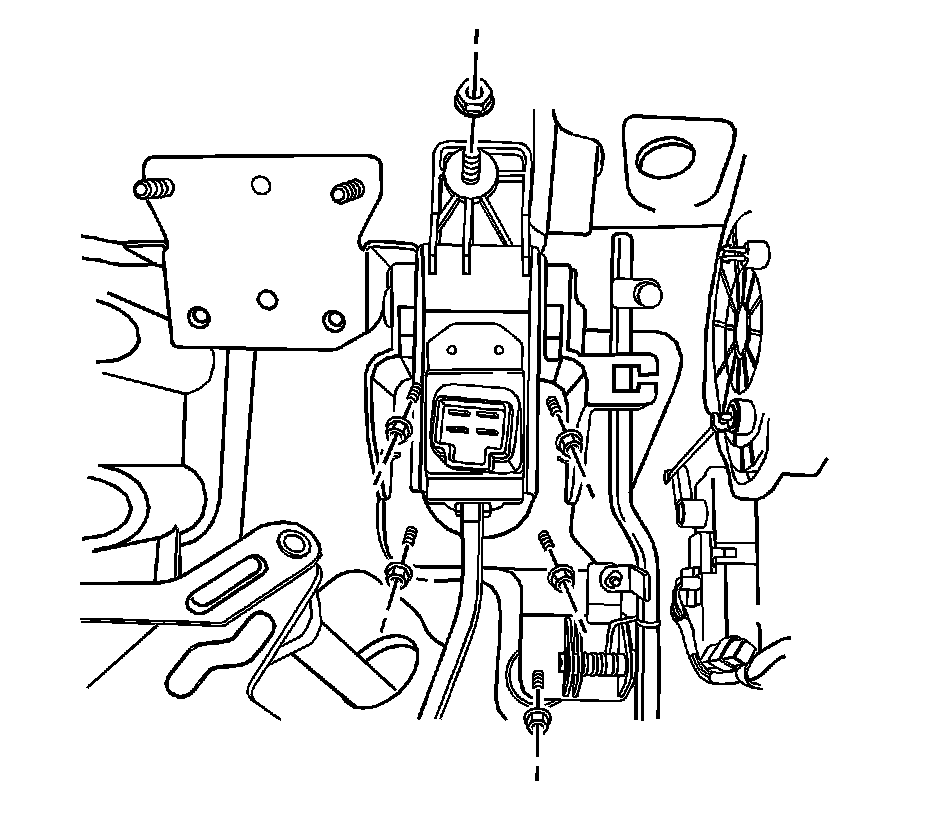

2. Remove the nuts from the brace.
3. Remove the brake pedal.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the brace with the nuts.

Tighten the brace nuts to 22 Nm (16 lb ft).

2. Install the brake pedal.




3. Install the I/P. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.
