Hydraulic System: Locations

Hydraulic Brake Component Views

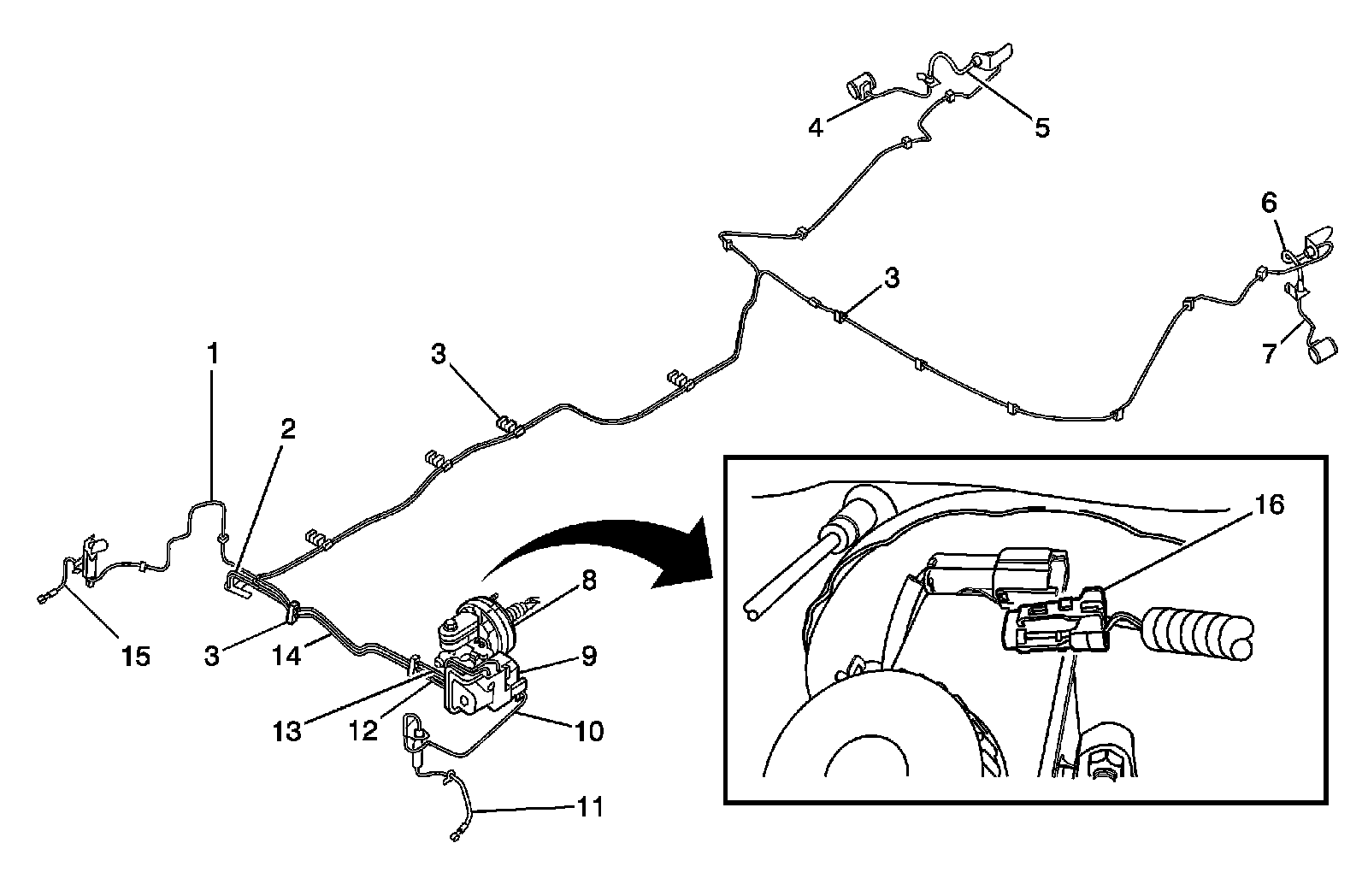

ABS




1 - 2nd Front Brake Pipe
2 - 2nd Rear Brake Pipe (A)
3 - Clip
4 - Right Hand 3rd Rear Brake Pipe
5 - Right Hand Rear Brake Hose
6 - Left Hand Rear Brake Hose
7 - Left Hand 3rd Rear Brake Pipe
8 - Left Hand Drive Master Cylinder/Booster Assembly
9 - ABS Brake Pressure Modulator Valve
10 - Front Brake Pipe
11 - Left Hand Front Brake Hose
12 - 1st Rear Brake Pipe (B)
13 - 1st Rear Brake Pipe (A)
14 - 2nd Rear Brake Pipe (B)
15 - Right Hand Front Brake Hose
16 - Brake Fluid Level Switch

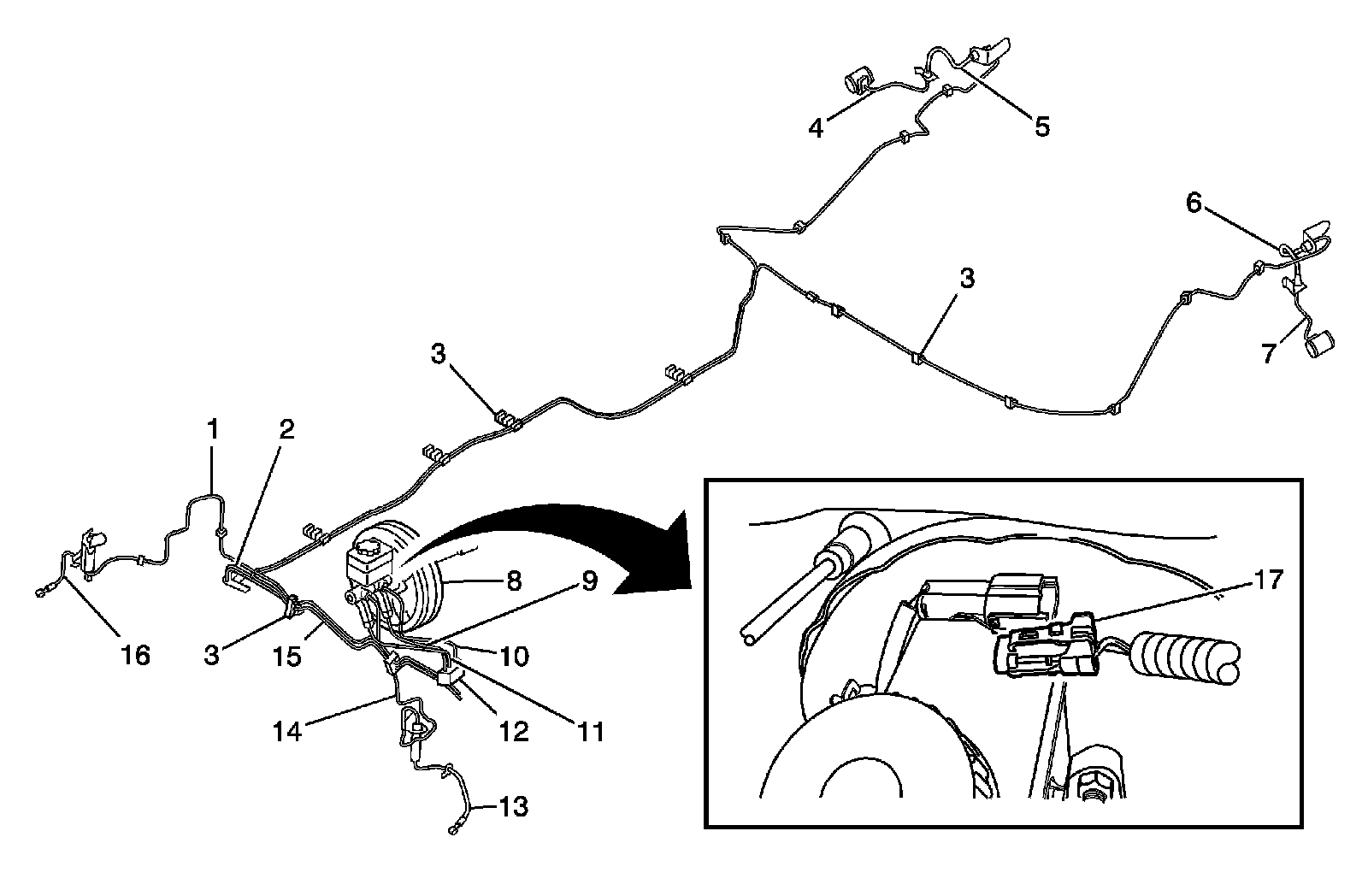

Non-ABS




1 - 2nd Front Brake Pipe
2 - 2nd Rear Brake Pipe
3 - Clip
4 - Right Hand 3rd Rear Brake Pipe
5 - Right Hand Rear Brake Hose
6 - Left Hand Rear Brake Hose
7 - Left Hand 3rd Rear Brake Pipe
8 - Left Hand Drive Master Cylinder/Booster Assembly
9 - 1st Rear Brake Pipe (B)
10 - 1st Front Brake Pipe
11 - 1st Rear Brake Pipe (A)
12 - Connector
13 - Left Hand Front Brake Hose
14 - Front Brake Pipe
15 - 2nd Rear Brake Pipe
16 - Right Hand Front Brake Hose
17 - Brake Fluid Level Switch

Park Brake Switch




1 - Park Brake Switch
