Shift Interlock, A/T




Shift Lock Control Schematics

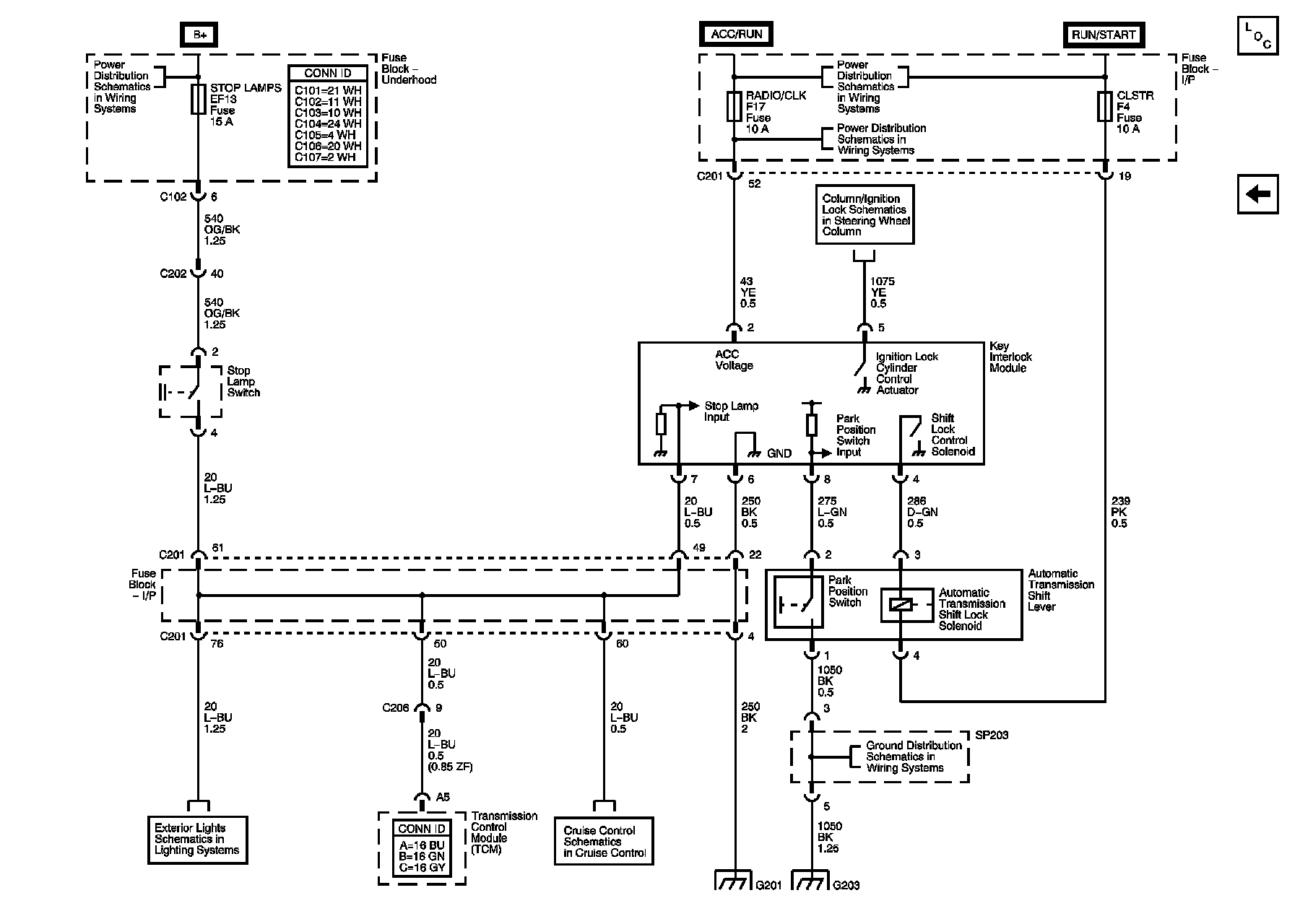

Automatic Transmission Shift Lock Control Schematics - With Ignition Lock Cylinder Control Actuator





Automatic Transmission Shift Lock Control Schematics - w/o Ignition Lock Cylinder Control Actuator
