Courtesy Lamp: Service and Repair

Rear Compartment Lamp Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

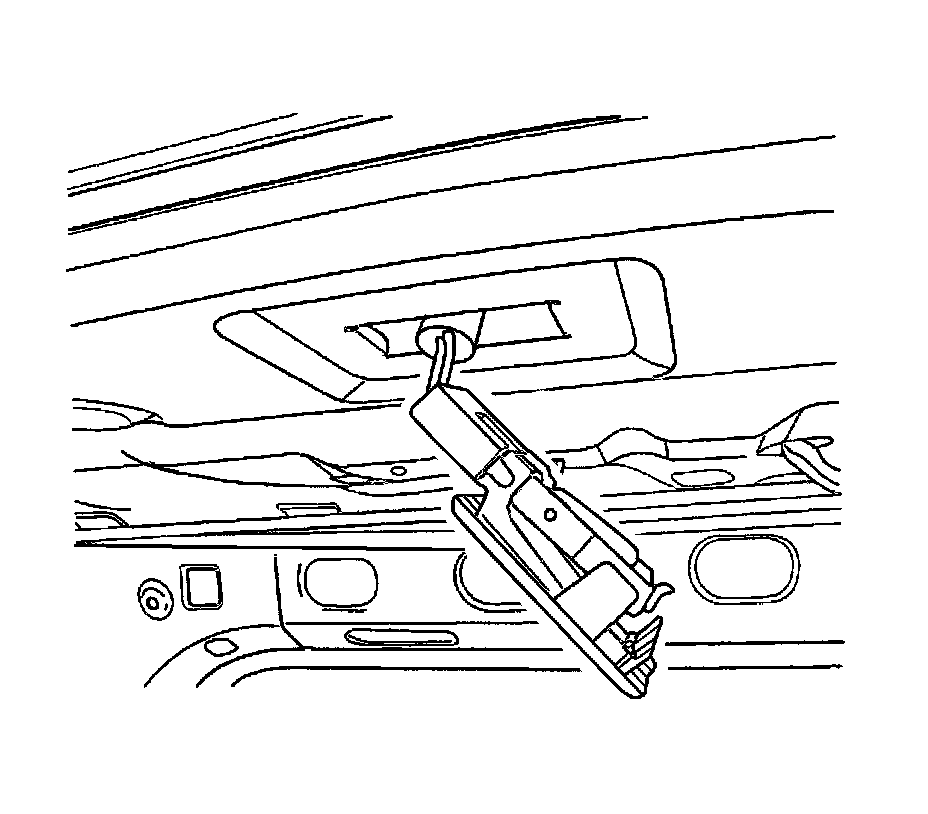

2. Remove the rear compartment lamp.
3. Disconnect the electrical connector.
4. Remove the bulb.

Installation Procedure

1. Install a new bulb.
2. Connect the electrical connector.
3. Install the rear compartment lamp.
4. Connect the negative battery cable.
