Impact Sensor: Locations

Harness Routing Views

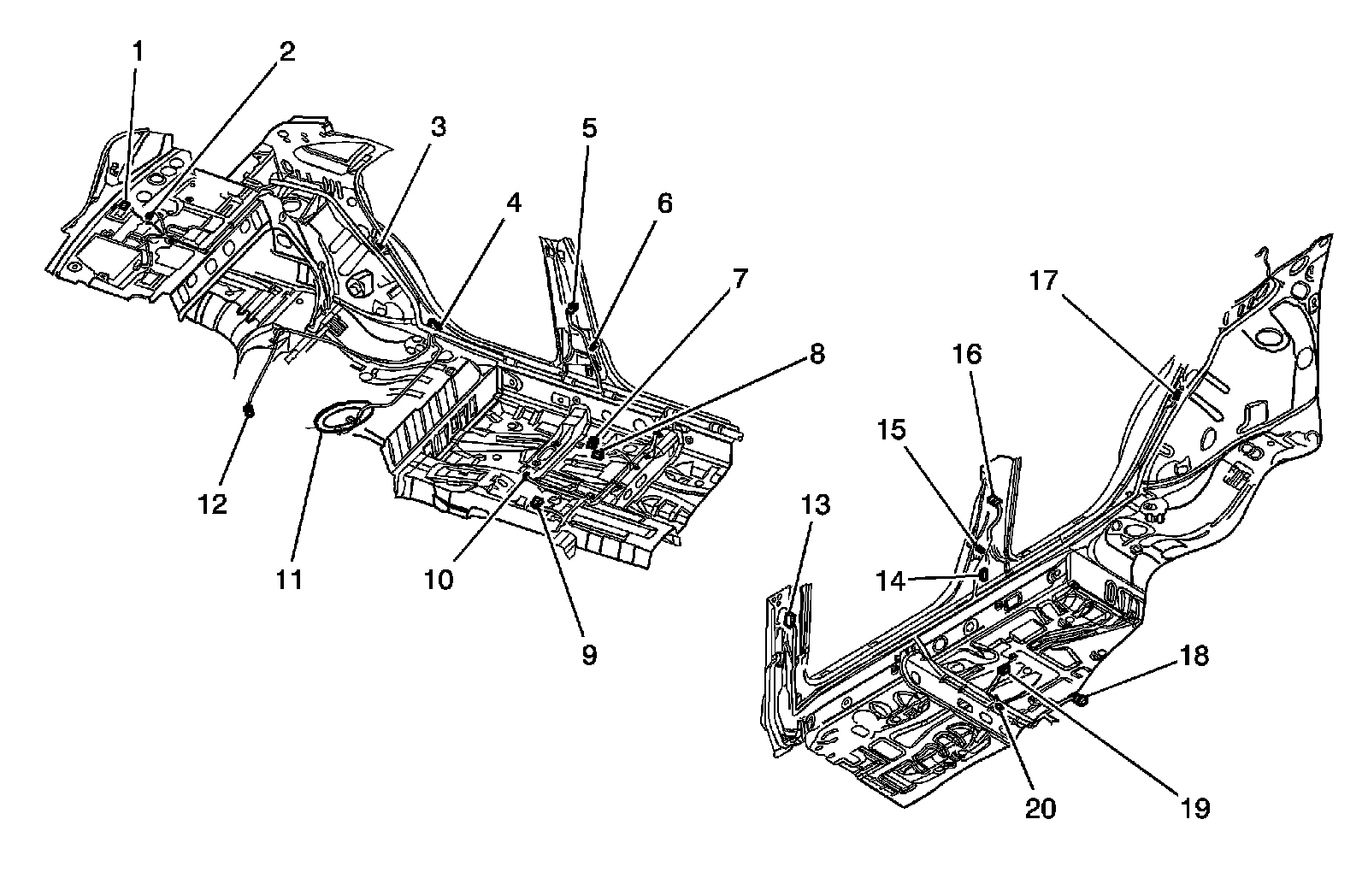

Floor Harness Routing

1 - Trunk Room Lamp
2 - CHMSL
3 - Rear Door Contact Switch
4 - G302
5 - C351
6 - Front Door Contact Switch
7 - Side Air Bag
8 - Side Air Bag Sensor
9 - C301
10 - Parking Brake Switch
11 - Fuel Pump
12 - C302
13 - C351
14 - Side Air Bag Sensor
15 - Front Door Contact Switch
16 - C371
17 - Rear Door Contact Switch
18 - C207
19 - Side Air Bag
20 - G301
