SIR Component Views

SIR Component Views

SIR (North America Vehicles)




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
4 - Inflatable Restraint I/P Module
5 - Occupant Classification (OC) Sensor
6 - Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger
7 - Side Airbag Module
8 - Inflatable Restraint Front End Discriminating Sensor - Right or Left

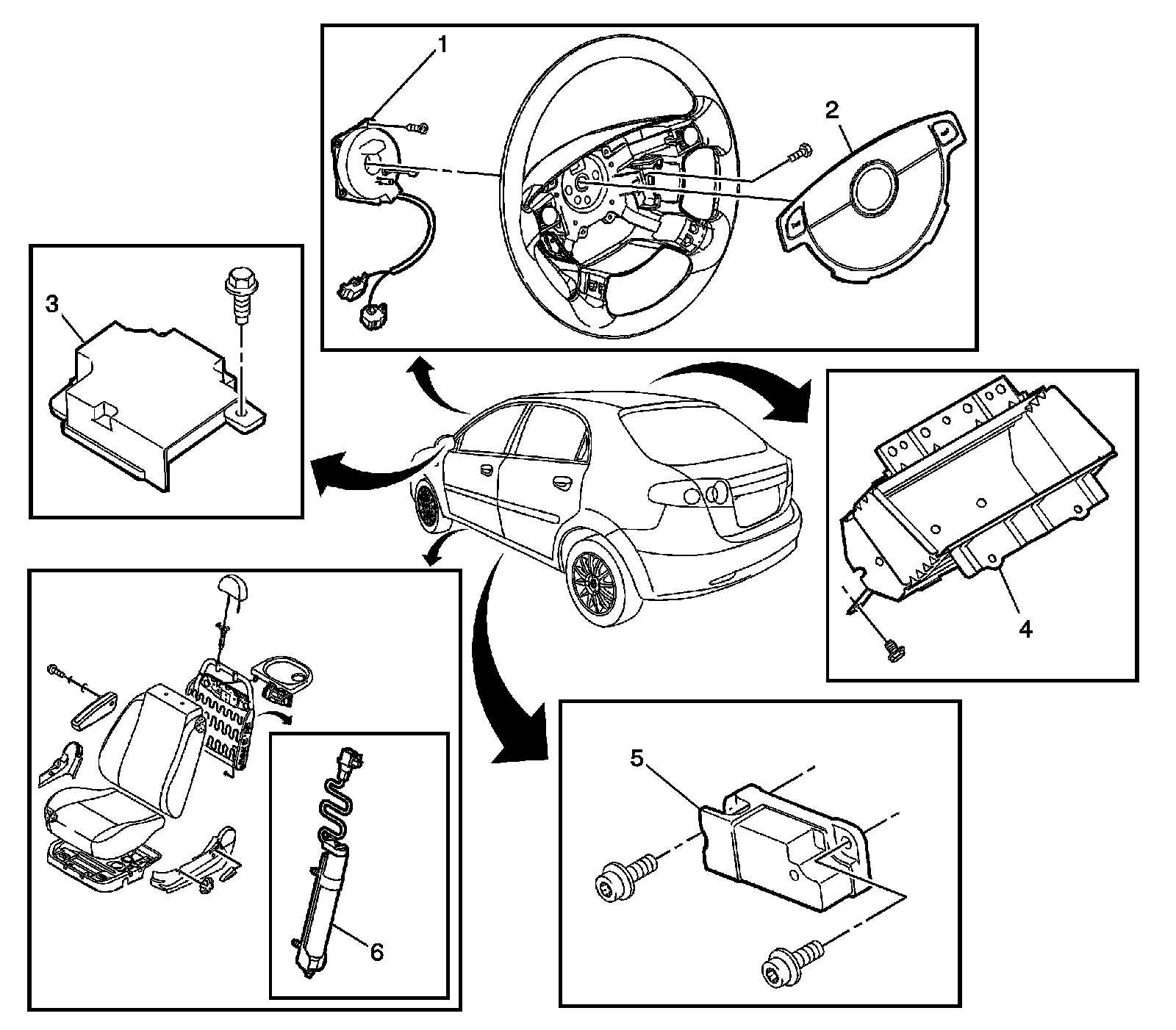

SIR (Except North America Vehicles)




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
4 - Inflatable Restraint I/P Module
5 - Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger
6 - Side Airbag Module

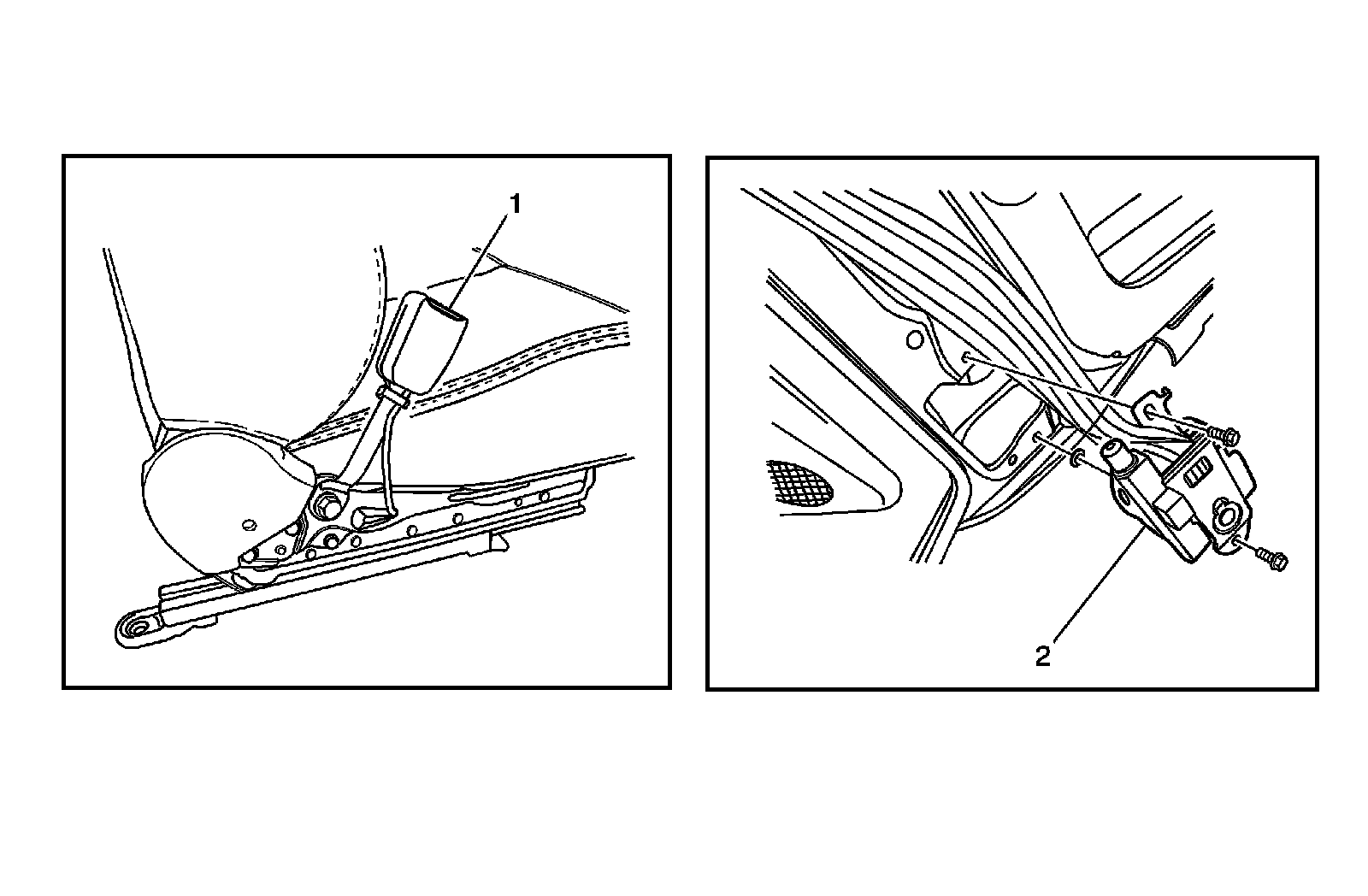

Seat Belt Switch, Seat Belt Pretensioner - Driver and Passenger




1 - Seat Belt Switch
2 - Seat Belt Pretensioner - Driver and Passenger
