Starting and Charging: Locations

Engine Electrical Component Views

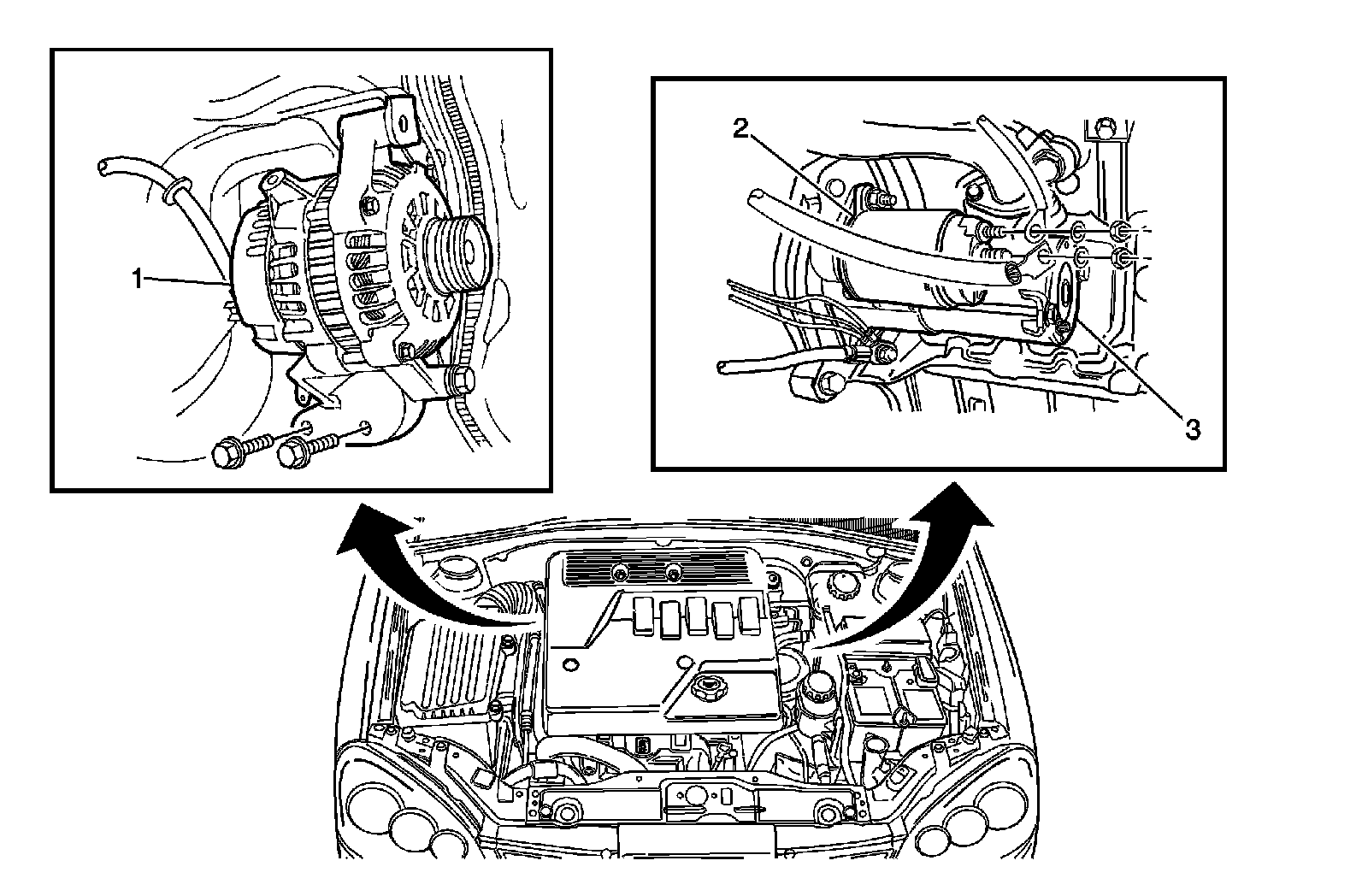

Generator and Starter (1.4L/1.6L)

1 - Generator
2 - Starter Solenoid
3 - Starter

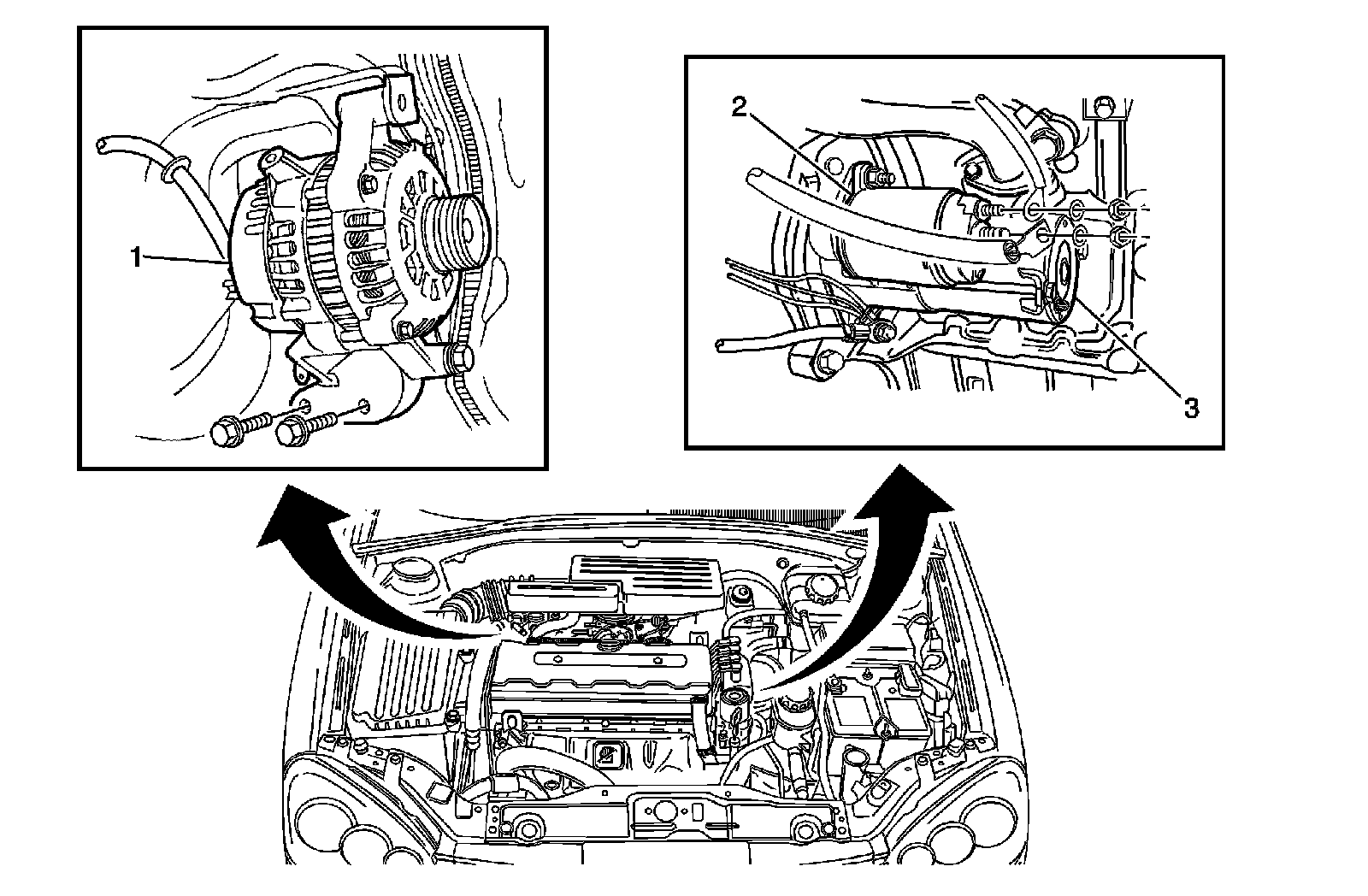

Generator and Starter (1.8L/2.0L)

1 - Generator
2 - Starter Solenoid
3 - Starter

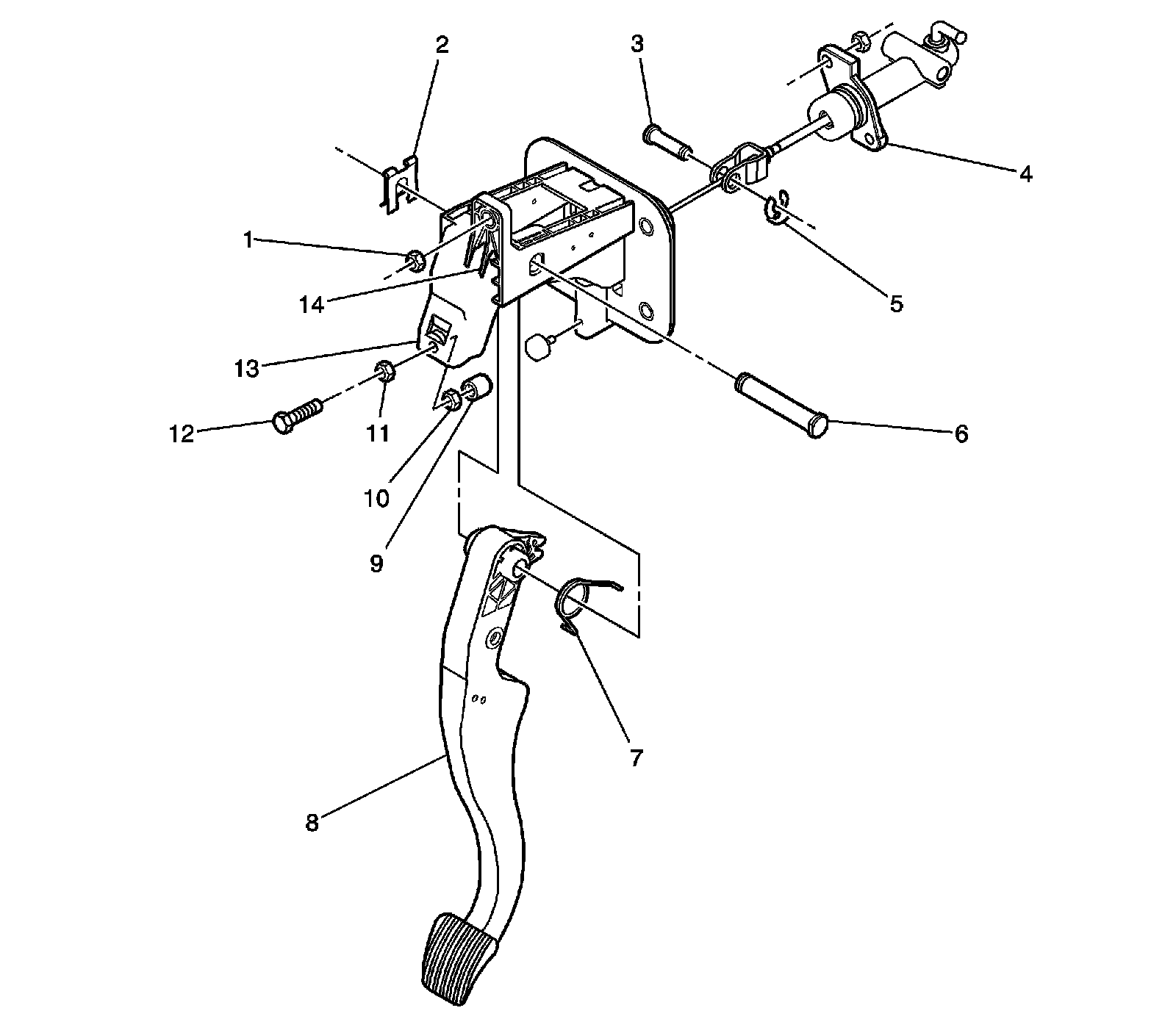

Clutch Pedal

1 - Nut
2 - E-Ring
3 - Pin
4 - Clutch Master Cylinder
5 - E-Ring
6 - Clutch Pedal Shaft
7 - Turn-Over Spring
8 - Clutch Pedal
9 - Clutch Pedal Buffer
10 - Lock Nut
11 - Nut
12 - Bolt
13 - Clutch Pedal Brace
14 - Clutch Switch
