Trailing Arm Replacement

Trailing Arm Replacement

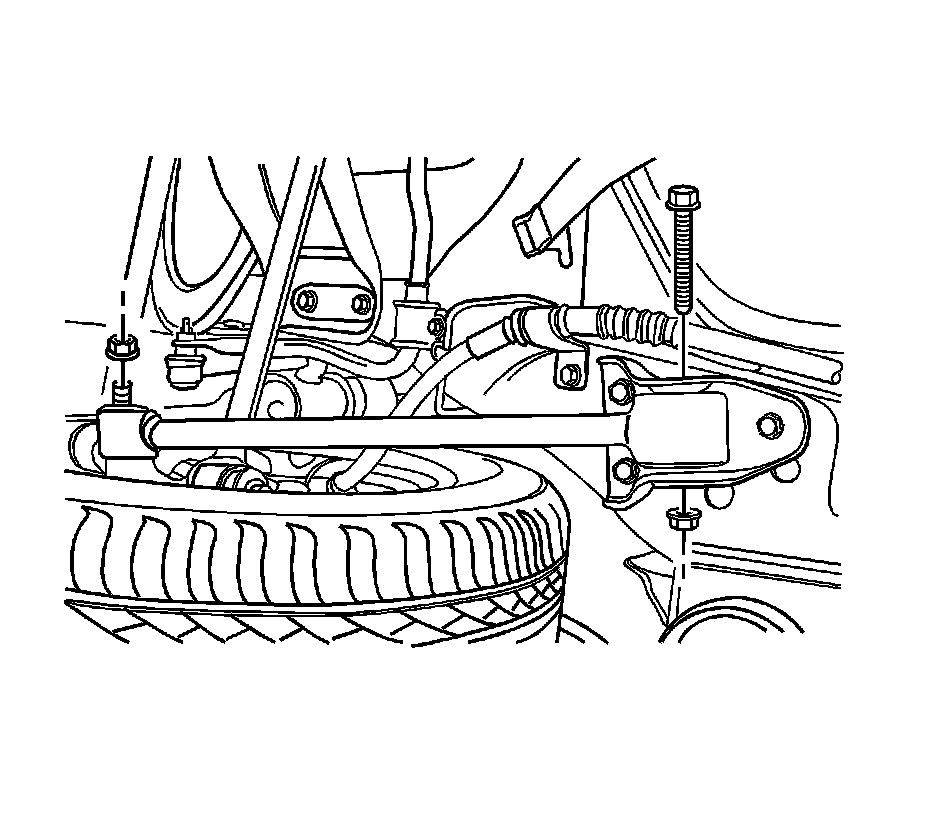

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
2. Remove the rear trailing link-to-rear knuckle nut.
3. Remove the rear trailing link-to-trailing link bracket nut and the rear trailing link-to-knuckle bolt.
4. Remove the rear trailing link.

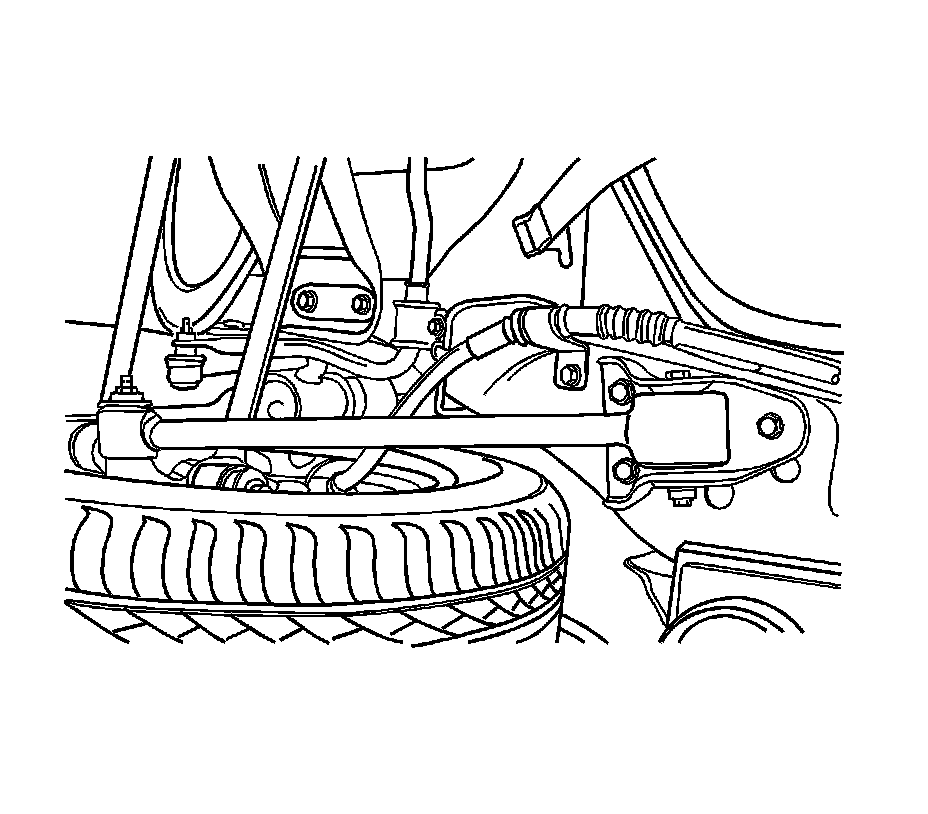

Installation Procedure




1. Install the rear trailing link.

Notice: Refer to Fastener Notice Fastener Notice.

2. Install the rear trailing link bracket nut and the bolt.

Tighten the rear trailing link-to-trailing link bracket nut to 100 Nm (74 lb ft).

3. Install the trailing link-to-knuckle nut.

Tighten the rear trailing link-to-knuckle nut to 150 Nm (111 lb ft).

4. Lower the vehicle.
