Transmission and Drivetrain: Application and ID




Transmission ID and VIN Derivative Location

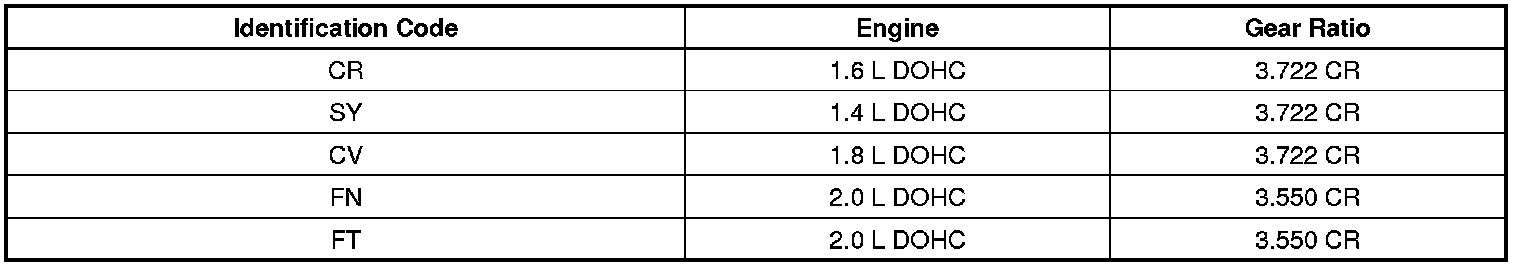

Manual Transmission Identification Number Plate





1. Identification Code
2. Sequential Number

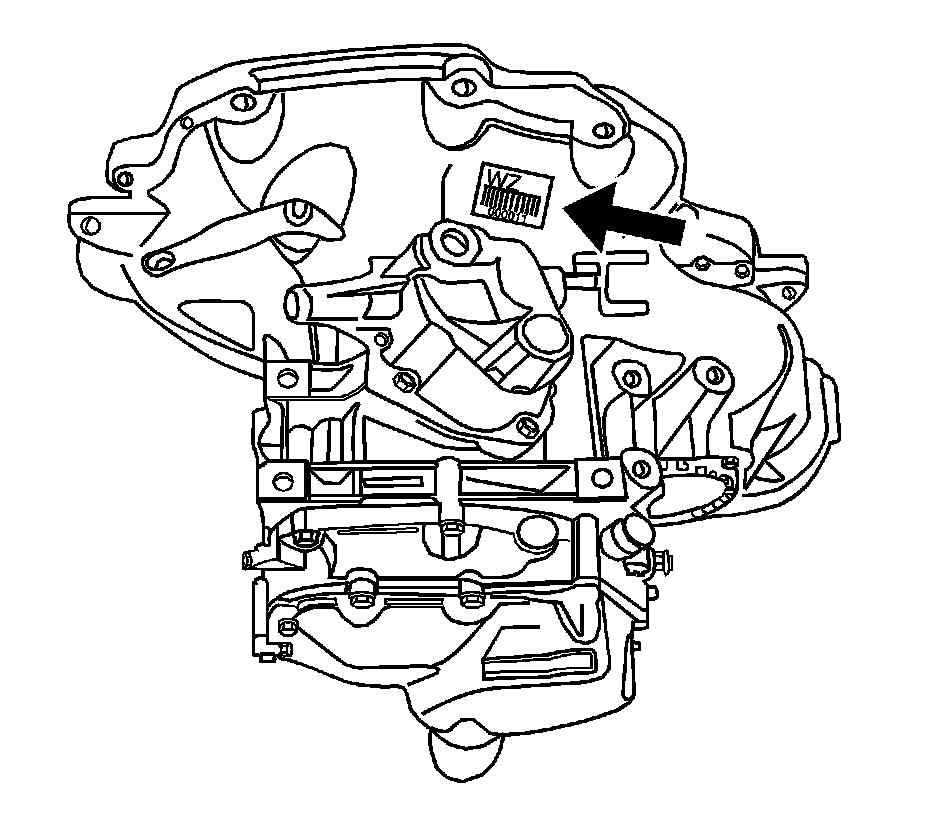

Manual Transaxle Identification Number Plate Location





The manual transaxle identification number is attached to the top of the transmission case near the engine.

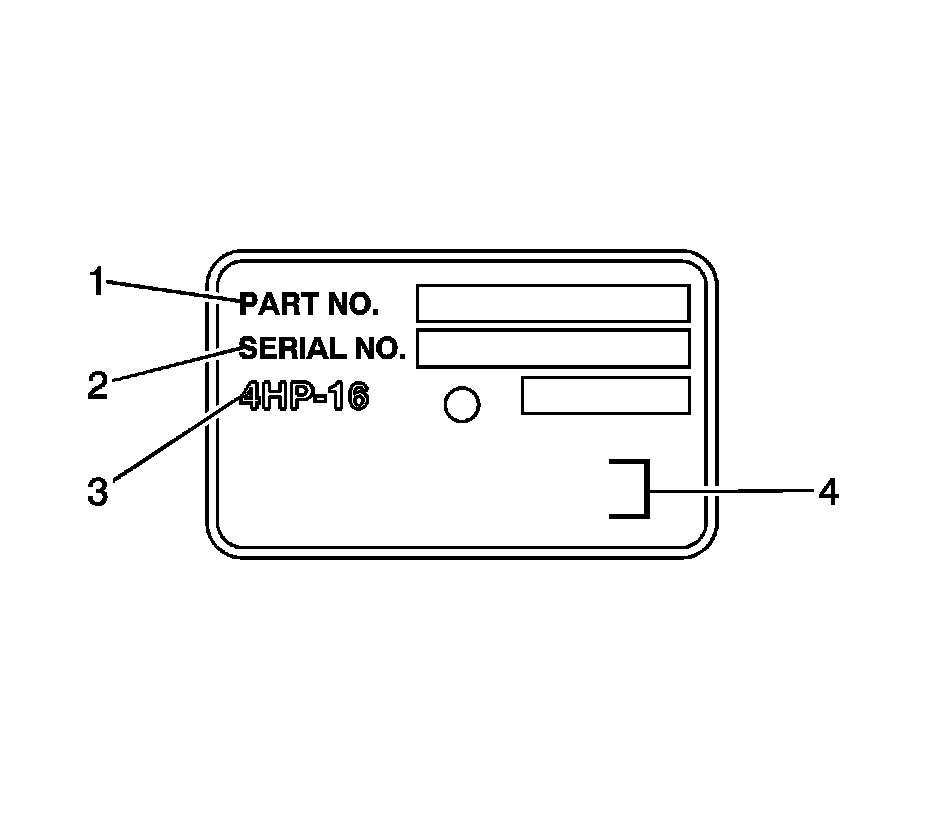

Automatic Transmission Identification Number Plate (ZF 4HP16)





1. Part Number
2. Serial Number
3. Model Code
4. Manufactured Nation and Company

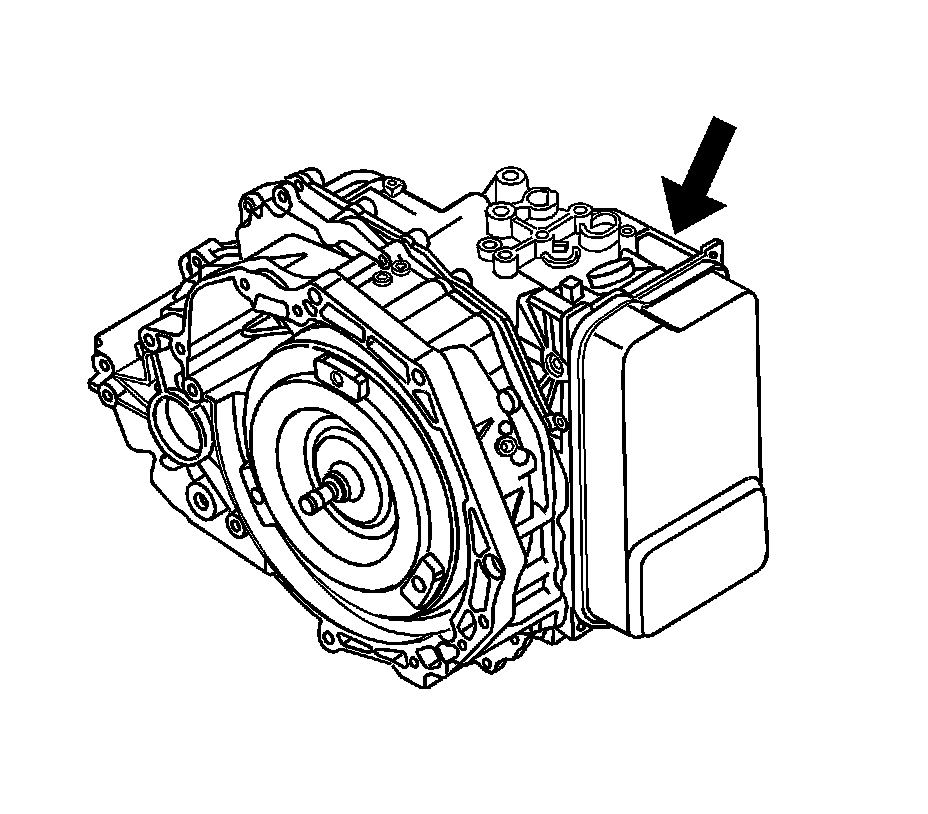

Automatic Transaxle Identification Number Plate Location (ZF 4H16)





The automatic transaxle identification number plate is attached on the rear bottom side of the transaxle case near the bulk head.

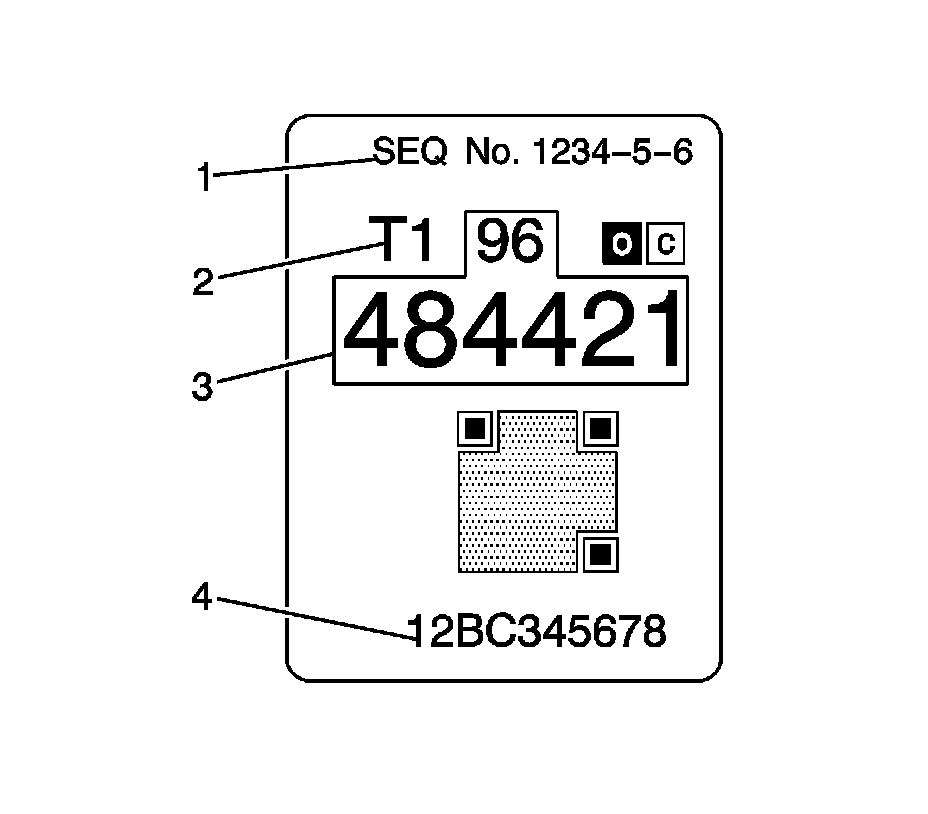

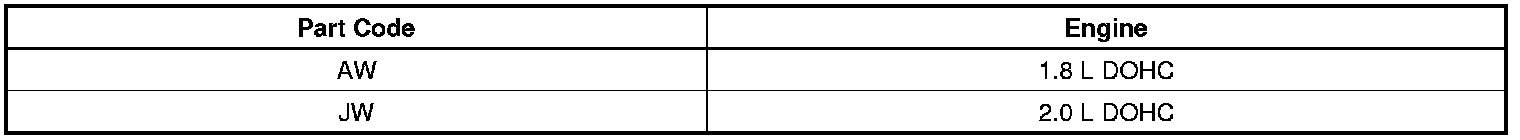

Automatic Transmission Identification Number Plate (Aisin 81-40LE)





1. Lot Number
2. Part ID Code
3. Part Number
4. Serial Number

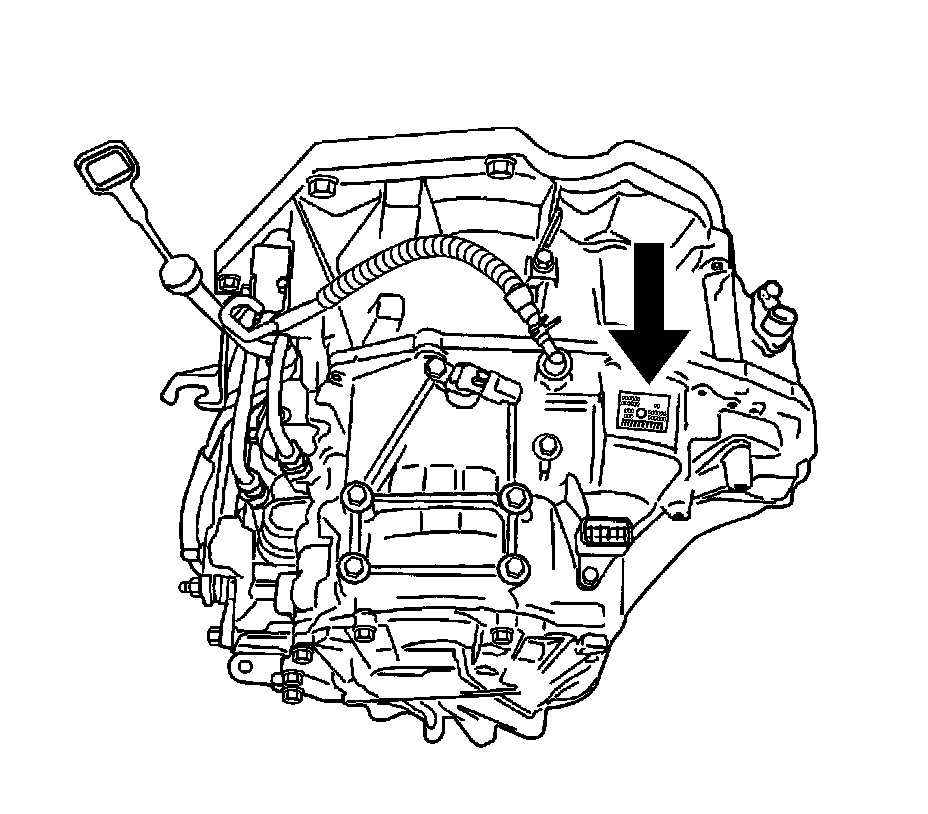

Automatic Transmission Identification Number Plate Location (Aisin 81-40LE)





The automatic transaxle identification number plate is attached on the upper side of the transaxle case.
