Endgate Cable Replacement



Endgate Cable Replacement

Removal Procedure

1. Lower the endgate.

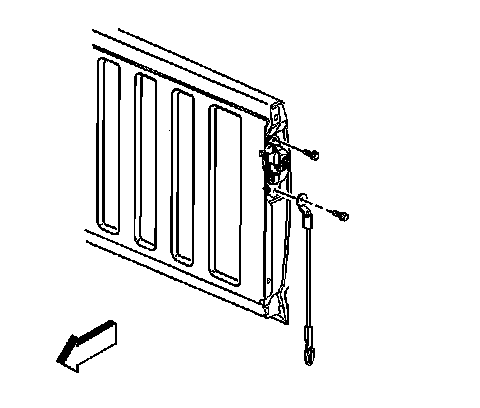

2. Remove the endgate support cable on each side from the cable restrain bolt.




3. Remove the retainer from the endgate striker.
4. Remove the endgate support cable from the endgate.



Installation Procedure





1. Install the endgate support cable onto the end gate.

Notice: Refer to Fastener Notice .

2. Install the latch fastener.

Tighten the latch fasteners to 25 N.m (18 lb ft).





3. Install the endgate support cable onto cable restraint fastener.
4. Close the endgate.
