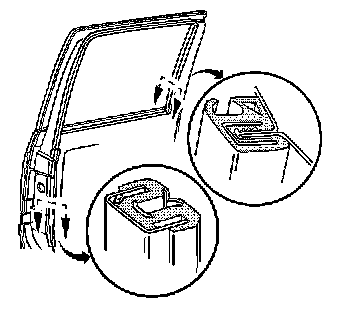

Rear Side Door Window Weatherstrip Replacement



REAR SIDE DOOR WINDOW WEATHERSTRIP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the window.




2. Pull the weatherstrip from the front window run channel.
3. Pull the weatherstrip from the rear window run channel.
4. Pull the weatherstrip from the window frame flange.

INSTALLATION PROCEDURE




1. Align the weatherstrip in the window frame flange.
2. Press the weatherstrip into the window frame flange until fully seated.
3. Press the weatherstrip into the rear window run channel until fully seated.
4. Press the weatherstrip into the front window run channel until fully seated.
5. Install the window.
