Fail-Safe or Limp Mode

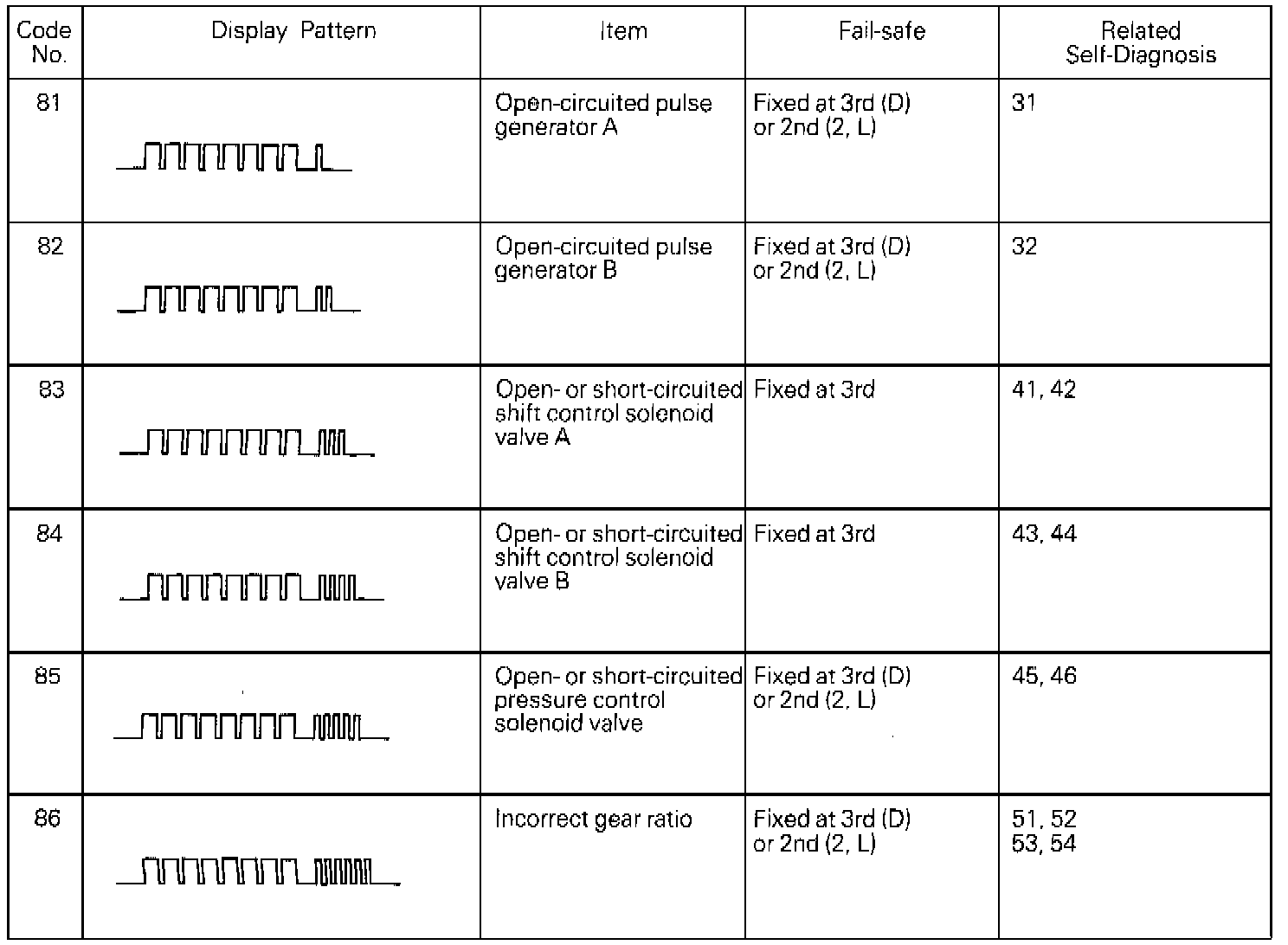

Fail Safe Functions (Codes 81-86):
In the event of a component failure, the Transmission Control Module
(TCM) will compensate by adjusting the transmission shift pattern. The appropriate Diagnostic Trouble Code will also be set into the TCM's memory.
