19 A/C Load Signal System
PROBLEM Air conditioning load signal system
DESCRIPTION When the air conditioning load signal system malfunctions, a defective air conditioning system is suspected.
PROBABLE CAUSE OF TROUBLE -
Defective closed throttle position switch
-
Defective connector
-
Defective transaxle control module

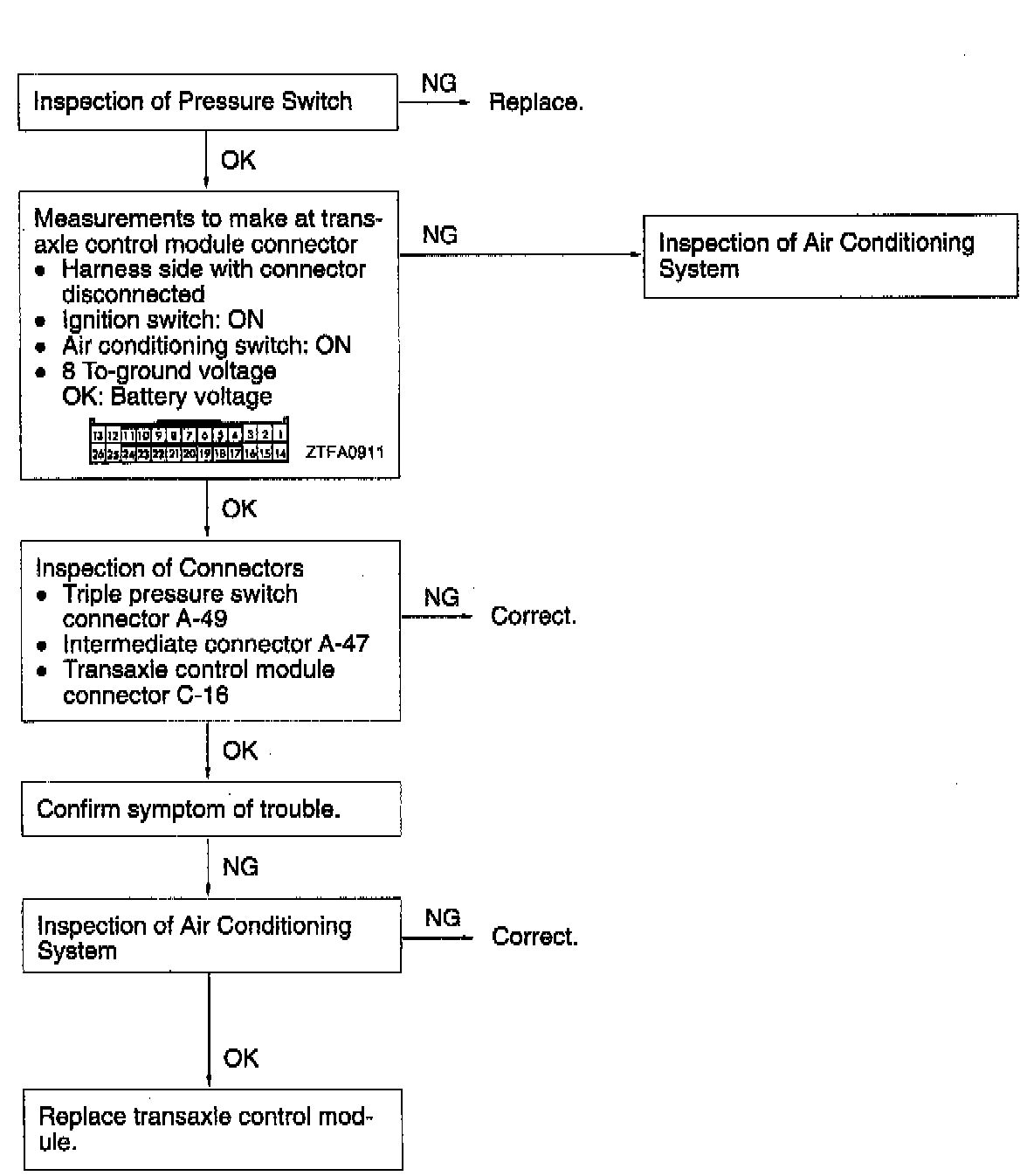

DIAGNOSTIC CHART
