3 Does Not Move Forward

PROBLEM
Does not move forward.

DESCRIPTION
With the engine at idle, you cannot make the vehicle move forward by changing the selector lever position from N to D, 2 or L. In this case, an abnormal line pressure or a defective rear clutch, one-way clutch, etc. is suspected.

PROBABLE CAUSE OF TROUBLE
- Abnormal line pressure
- Defective rear clutch
- Defective one-way clutch
- Defective valve body

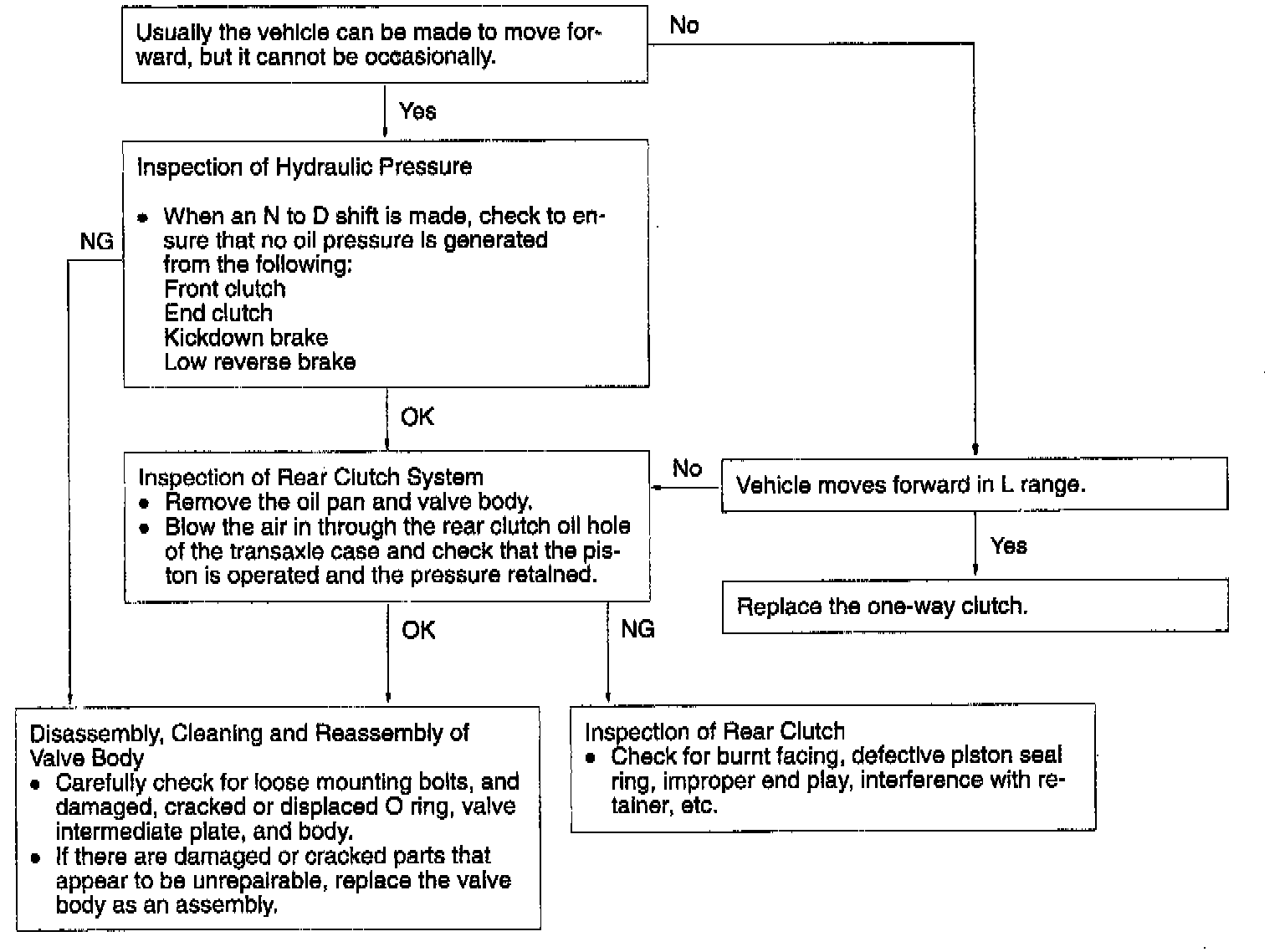

DIAGNOSTIC CHART
