Disassembly and Reassembly Steps

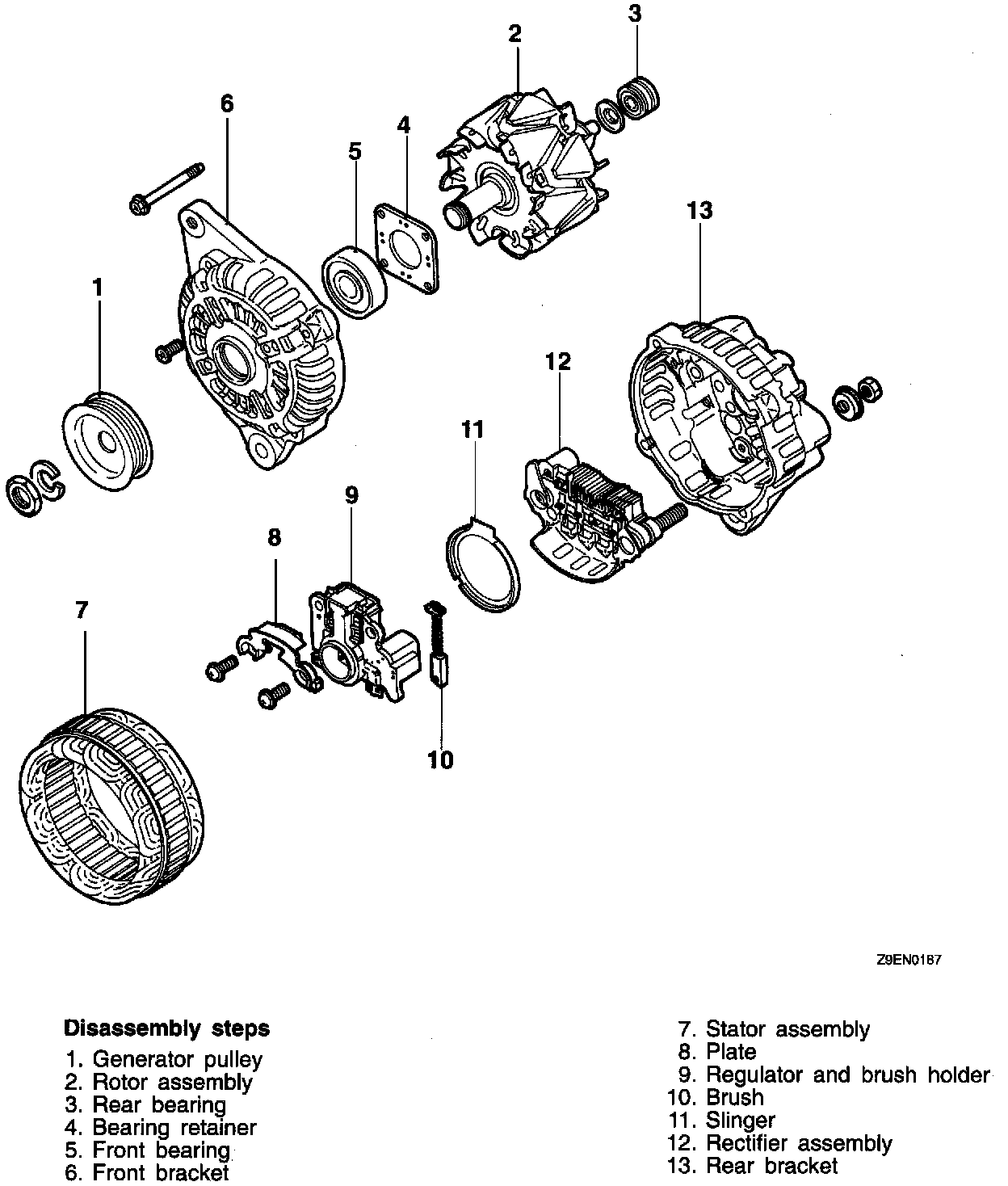

Generator - Disassembly And Reassembly:

REMOVE
1. Generator Pulley
2. Rotor assembly
3. Rear bearing
4. Bearing retainer
5. Front bearing
6. Front bracket
7. Stator assembly
8. Plate
9. Regulator and brush holder
10. Brush
11. Slinger
12. Rectifier
13. Rear bracket

INSTALL
1. Rear bracket
2. Rectifier
3. Slinger
4. Brush
5. Regulator and brush holder
6. Plate
7. Stator assembly
8. Front bracket
9. Front bearing
10. Bearing retainer
11. Rear bearing
12. Rotor assembly
13. Generator Pulley
