Removal Service Points

Drive Belt (Generator) Removal:

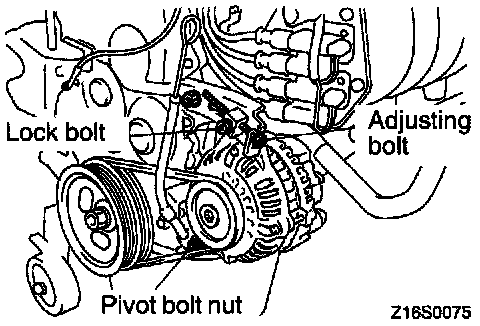

1. Loosen the pivot bolt nut and the lock bolt as shown in the illustration.
2. Loosen the adjusting bolt and lift it upwards.
3. Push the generator towards the engine to remove the drive belt
