Oscilloscope Patterns and Waveforms

INSPECTION ITEM
Pulse generator A (PG-A)

INSPECTION CONDITION
^ Selector lever position: D
^ Overdrive: OFF
^ Traveling at constant speed of 50km/h (31 MPH) (for more than 20 secs.)

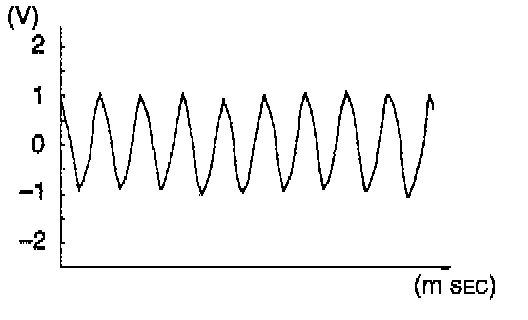

ANTICIPATED VALUE (WAVEFORM SAMPLE)


INSPECTION ITEM
Pulse generator B (PG-B)

INSPECTION CONDITION
^ Selector lever position: D
^ Overdrive: OFF
^ Traveling at constant speed of 50km/h (31 MPH) (for more than 20 secs.)





ANTICIPATED VALUE (WAVEFORM SAMPLE)
