Barometric Pressure Sensor: Testing and Inspection

TROUBLESHOOTING HINTS
Hint 1: A faulty barometric pressure sensor will cause poor driveability--especially at high altitudes.
Hint 2: If the pressure indication of the barometric pressure sensor drops significantly during high speed driving check air cleaner for clogging.

HARNESS INSPECTION

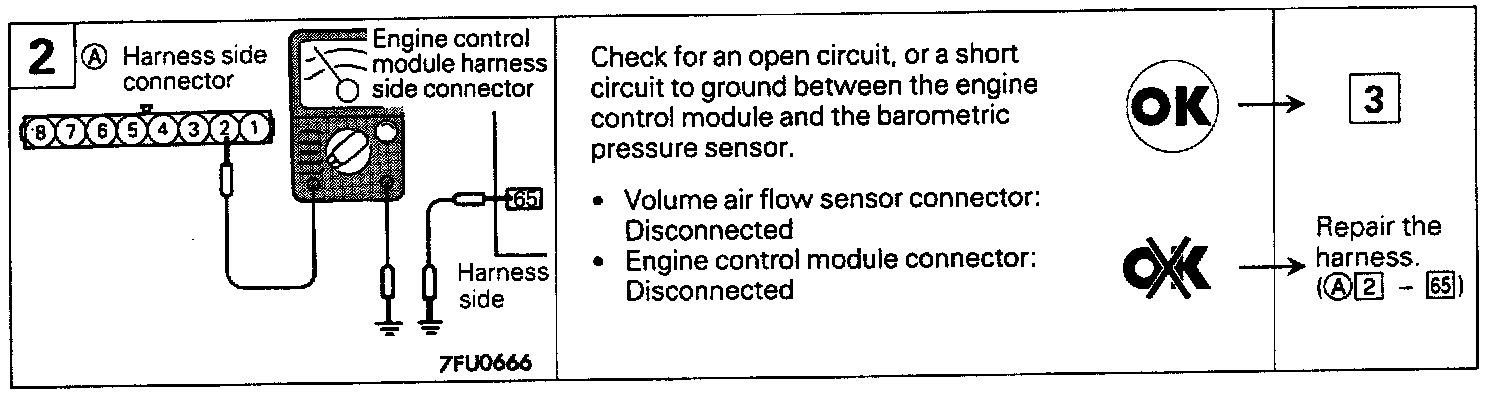

Barometric Pressure Sensor:

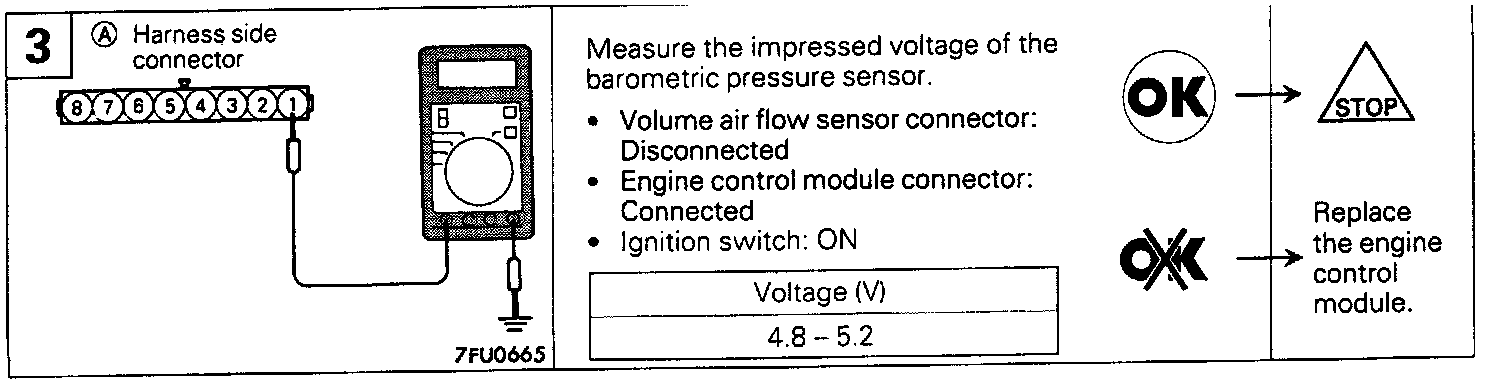

Barometric Pressure Sensor:




Barometric Pressure Sensor:

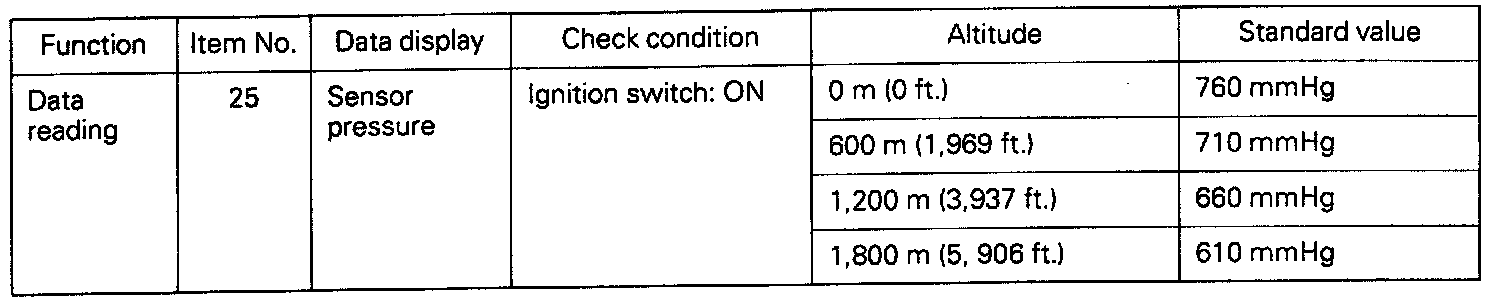

INSPECTION USING SCAN TOOL

Barometric Pressure Sensor:
