Distributor Assembly Replacement
1.
Turn the crankshaft so that the No. 1 cylinder is at top dead center.
2.

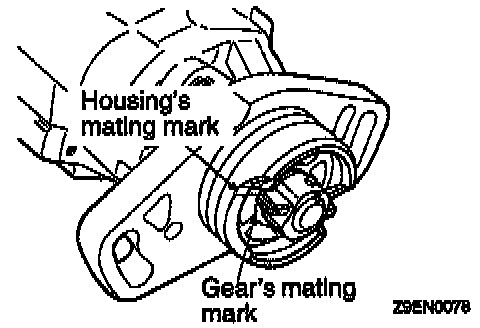

Align the distributor housing and gear mating marks.
Distributor Installation Alignment:
3.
Install the
distributor to the engine while aligning the slot or groove of the distributor's installation flange with the distributor installation stud.
