Windshield Washer Switch: Service and Repair

Column Switch - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring, refer to Service Precautions and Air Bag Module and Clock Spring.

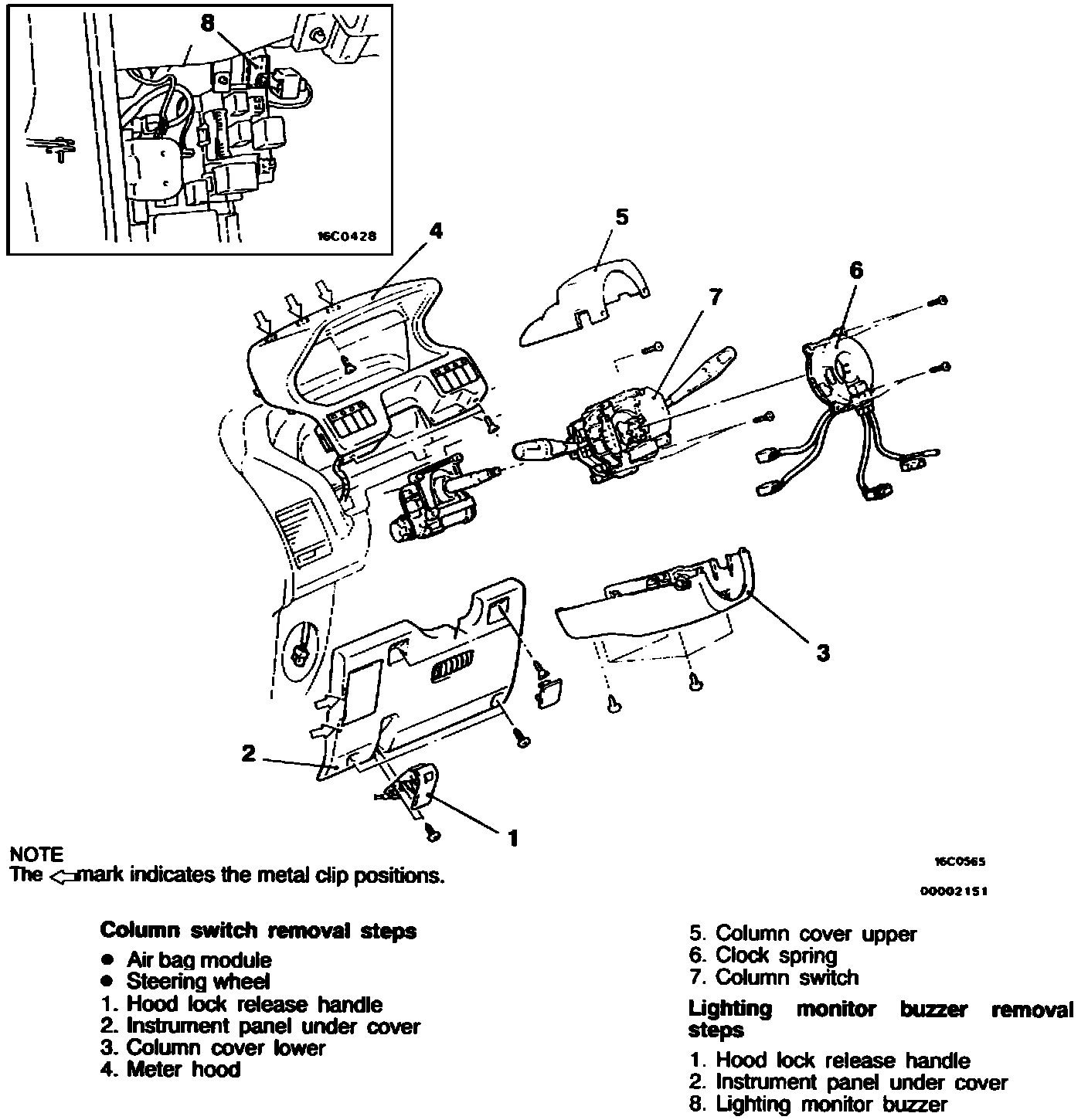

REMOVE
Column Switch
- Air bag module
- Steering wheel
1. Hood lock release handle
2. Instrument panel under cover
3. Column cover lower
4. Meter hood
5. Column cover upper
6. Clock spring
7. Column switch

Lighting Monitor Buzzer
1. Hood lock release handle
2. Instrument panel under cover
8. Lighting monitor buzzer

INSTALL
Column Switch
1. Column switch
2. Clock spring
3. Column cover upper
4. Meter hood
5. Column cover lower
6. Instrument panel under cover
7. Hood lock release handle
- Steering wheel
- Air bag module

Lighting Monitor Buzzer
1. Lighting monitor buzzer
2. Instrument panel under cover
8. Hood lock release handle
