State Display Tests

CAUTION:
1. Always apply the brakes when shifting the selector lever to D range, or vehicle will move forward.
2. Driving tests always need another personnel.

NOTES:

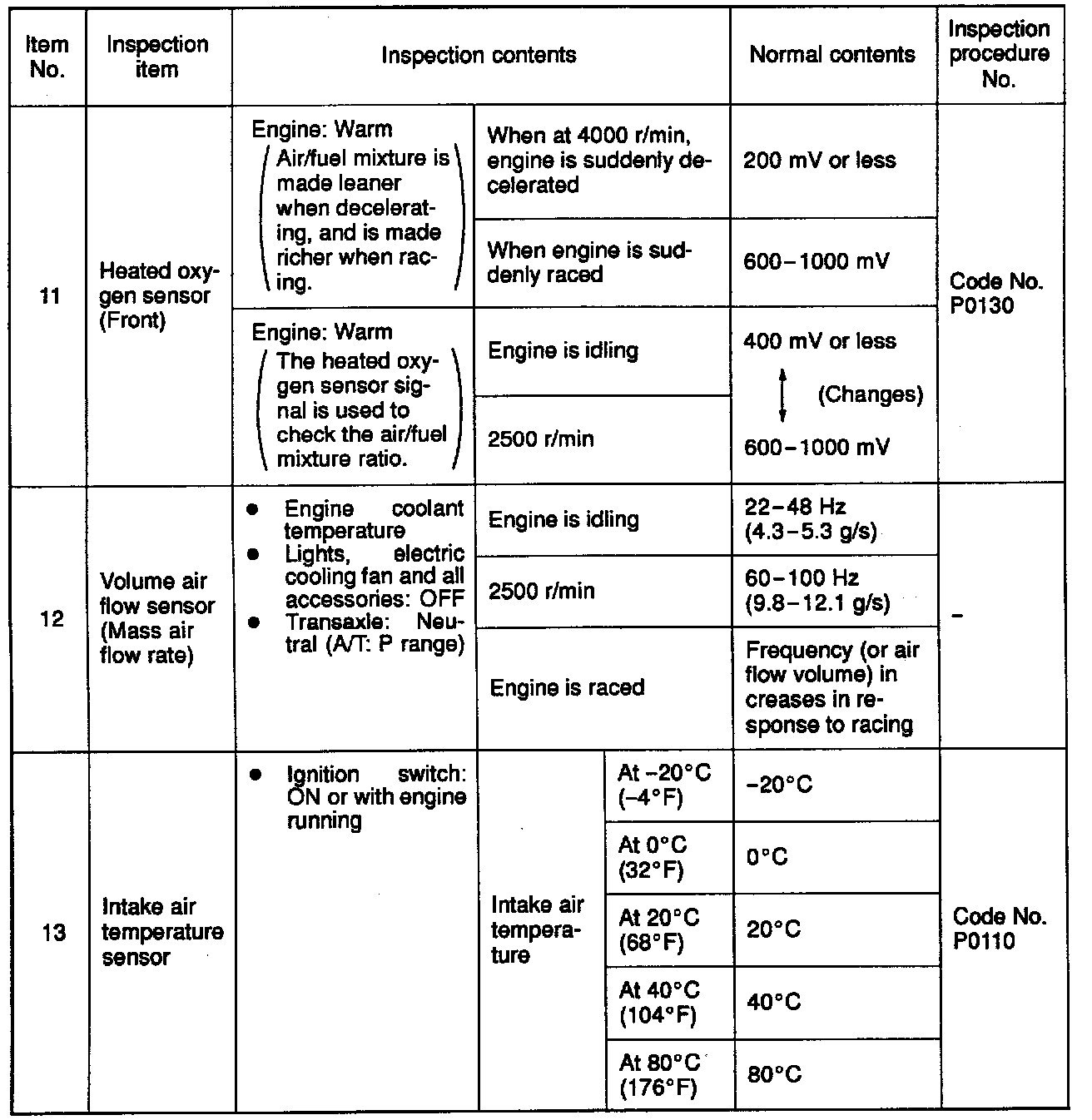

*1. In a new vehicle (driven approximately 500 Km [300 miles] or less), the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.

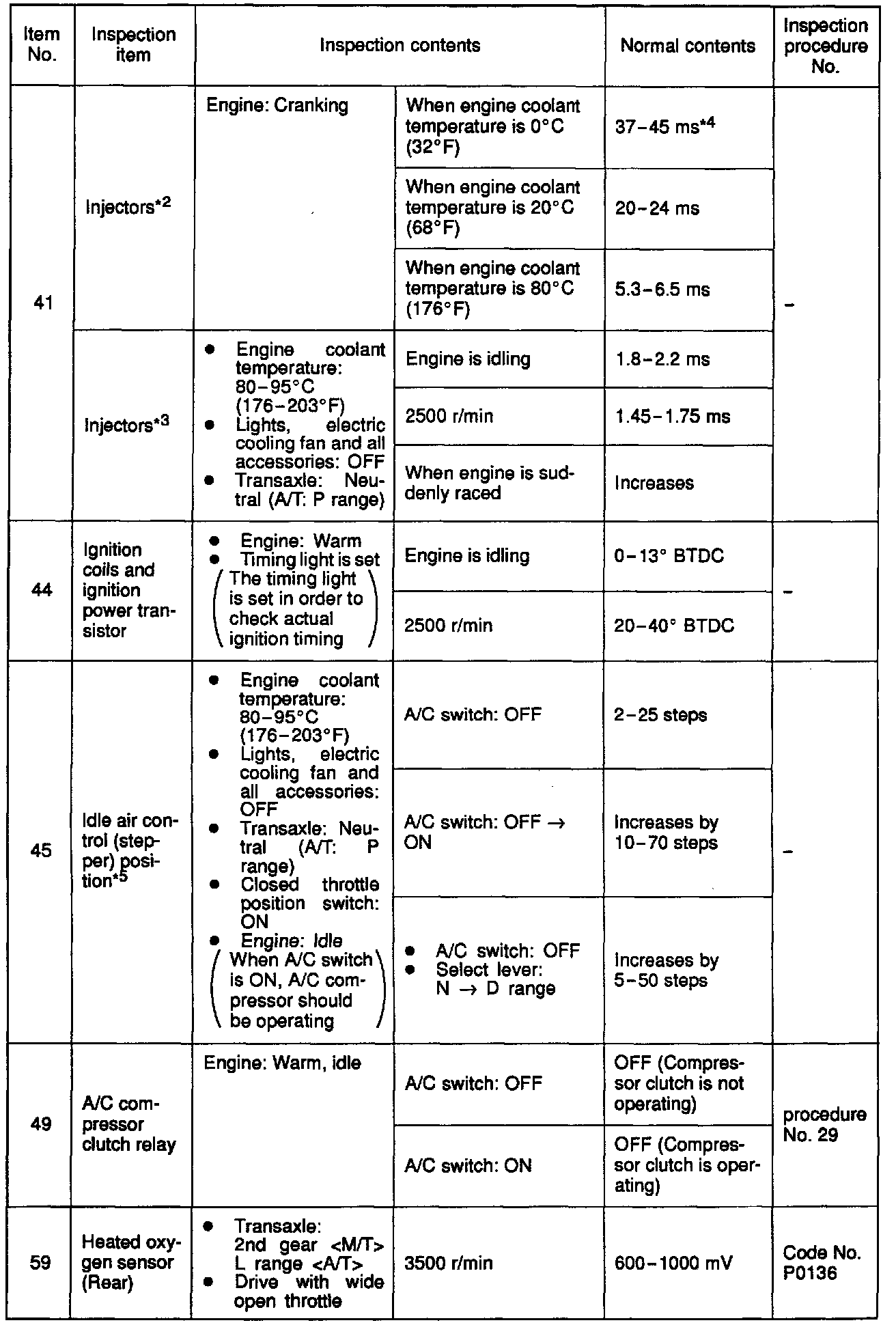

*2. The injector drive time represents the time when the cranking speed is at 250 RPM or below when the power supply voltage is 11V.
*3. In a new vehicle (driven approximately 500 Km [300 miles] or less), the injector drive time is sometimes 10% longer than the standard time.
*4. Fuel is injected into all cylinders simultaneously.
*5. In a new vehicle (driven approximately 500 Km [300 miles] or less), the step of the stepper motor is sometimes 30 steps greater than the standards value.
