Air Door: Service and Repair
REMOVAL 1.
Remove the evaporator core housing. Refer to:
Heating and Air Conditioning, Evaporator Case, Service and Repair, Removal and Installation, Removal and Installation 2.

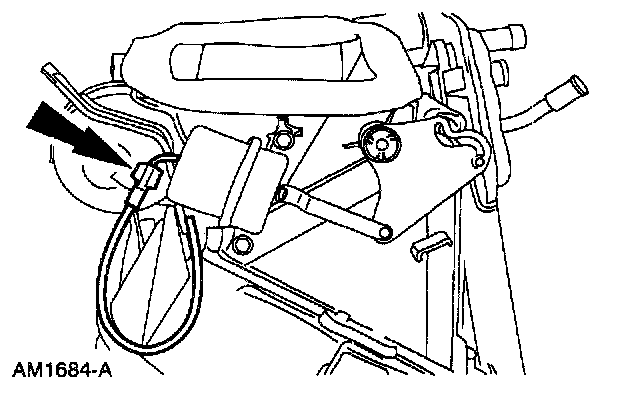

Disconnect the vacuum line.
3.
Remove the screws and remove the duct.
INSTALLATION 1.
To install, reverse the removal procedure
