Test H

PINPOINT TEST H: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE TRANSMITTER

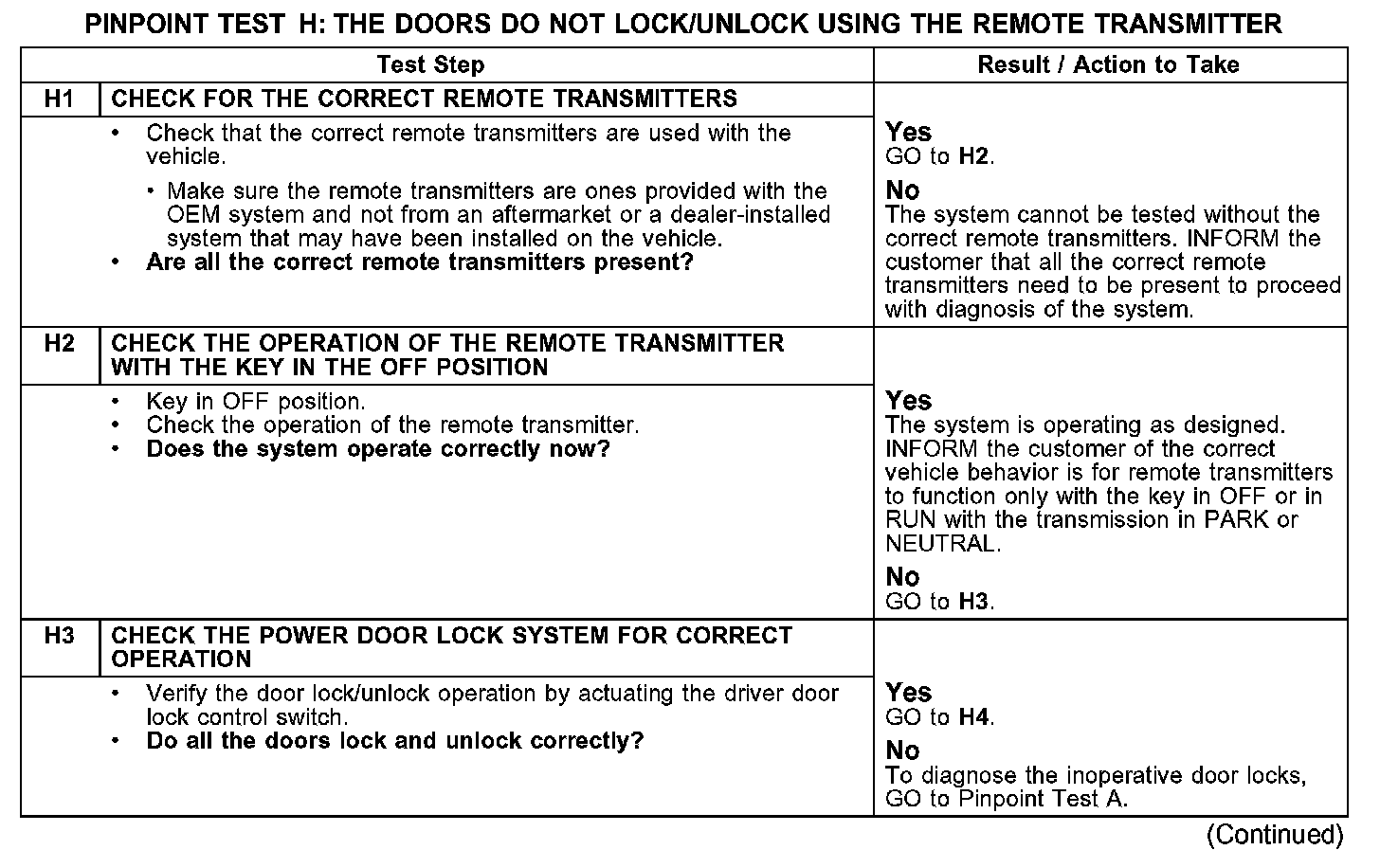

Test H1-H3:

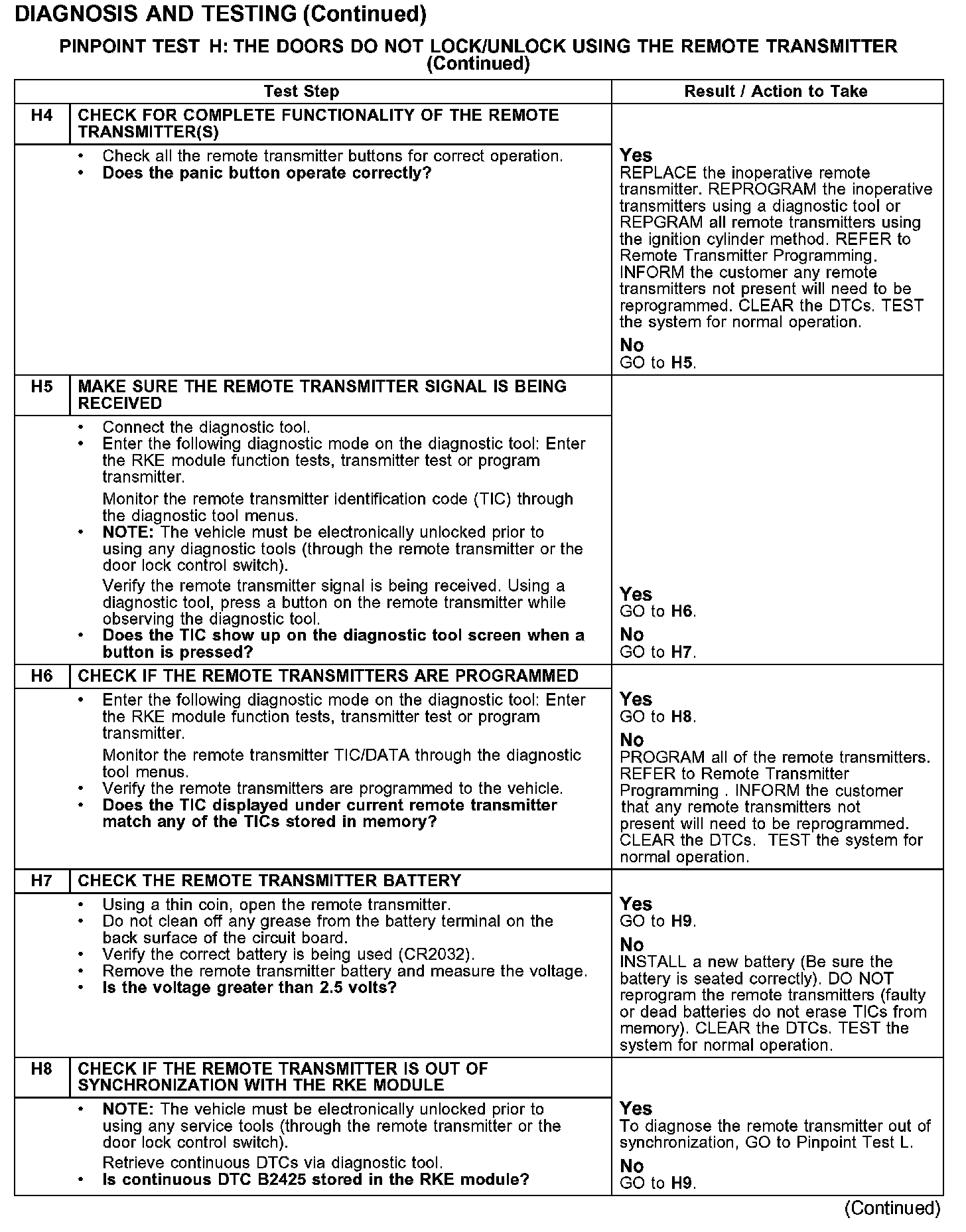

Test H4-H8:

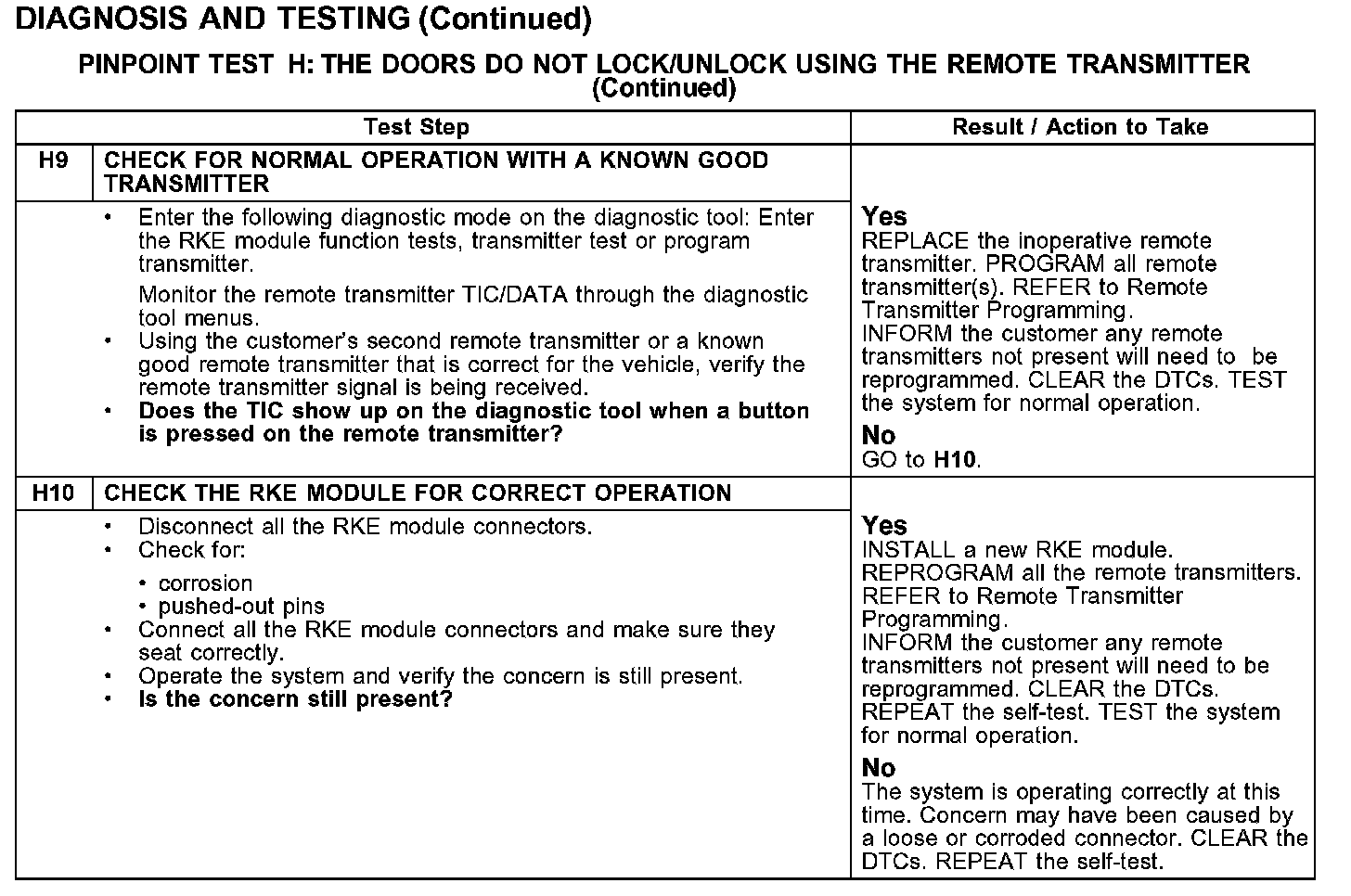

Test H9-H10:

Normal Operation
Remote locking and unlocking of the doors is accomplished by the remote keyless entry (RKE) module receiving a command message from the remote transmitter. The RKE module processes the command and sends a signal directly to the door lock actuators.

All remote transmitters must be present to begin diagnosis of the RKE system.

Aftermarket or dealer-installed systems may adversely effect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

Possible Causes
- remote transmitter battery
- remote transmitter programming
- remote transmitter
- aftermarket systems
- high power devices
- TV/radio transmission towers
- RKE module
