Access Cover: Service and Repair






ENGINE COVER REPLACEMENT









REMOVE OR DISCONNECT
1. Instrument panel lower extension.

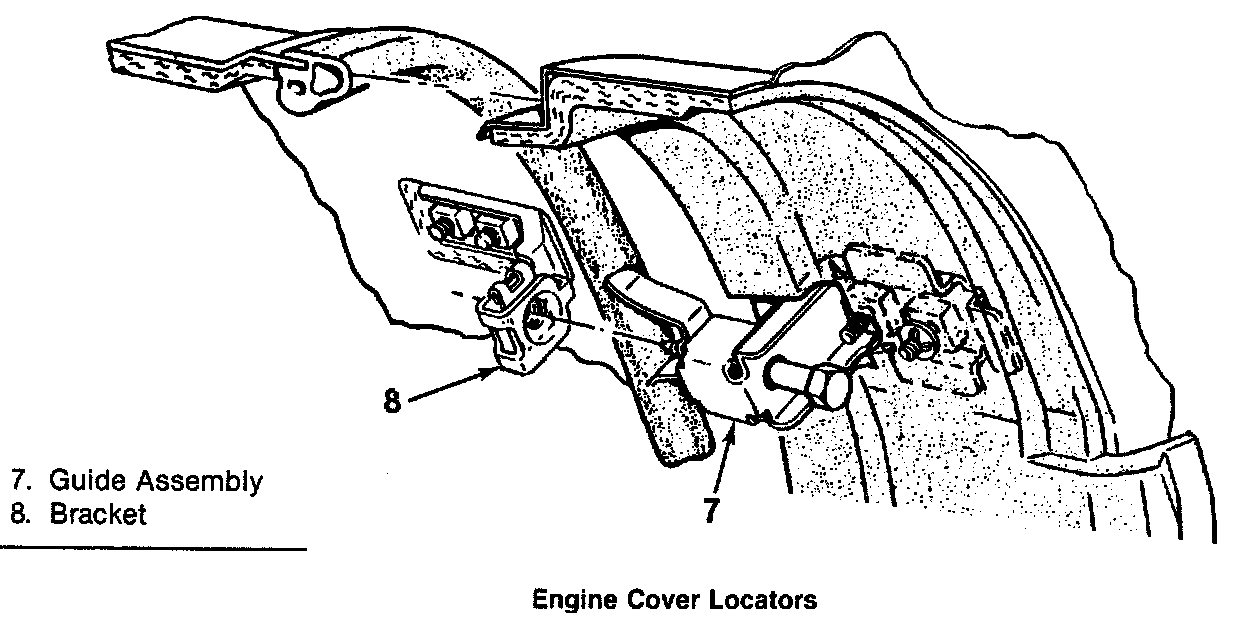

2. Guide assembly bolts from inside the engine compartment.
- Open the hood.
- Remove the air cleaner snorkel for access to the right side bolt

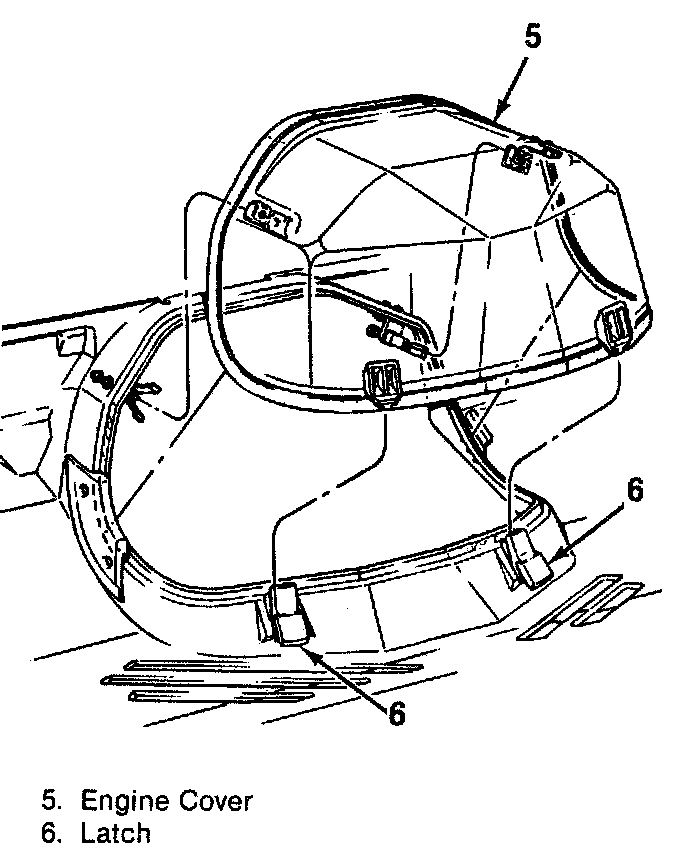

3. Latches (6).
4. Engine cover (5).

INSTALL OR CONNECT
1. Engine cover (5).
2. Latches (6).
3. Guide assembly bolts from inside the engine compartment.
- Open the hood.
- Install the air cleaner snorkel.
4. Instrument panel lower extension.
