Figure 1-Heater Assembly and Defrost Component View:

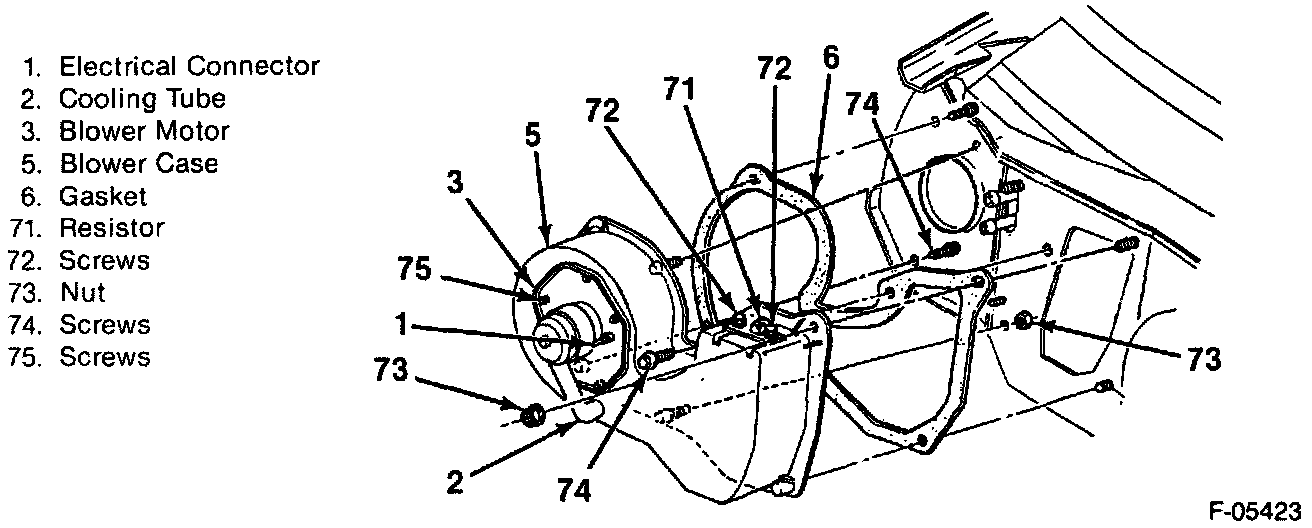

Figure 6-Blower Motor and Case Replacement:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Electrical connector (1) at the blower motor (3).
3. Coolant bottle.
4. Windshield washer fluid bottle.
5. Blower motor flange screws (75).
6. Motor (3).
7. Nut (8).
8. Fan (7).
9. Spacer (4).
10. Blower motor (3).

INSTALL OR CONNECT
1. Spacer (4).
2. Fan (7).
3. Nut (8).
4. Blower motor (3).
5. Blower motor flange screws (75).
6. Windshield washer fluid bottle.
7. Coolant bottle.
8. Electrical connector (1) to the blower motor (3).
9. Negative battery cable.
