With Air Conditioning







REMOVE OR DISCONNECT
1. Battery ground cable.
2. Insulator.

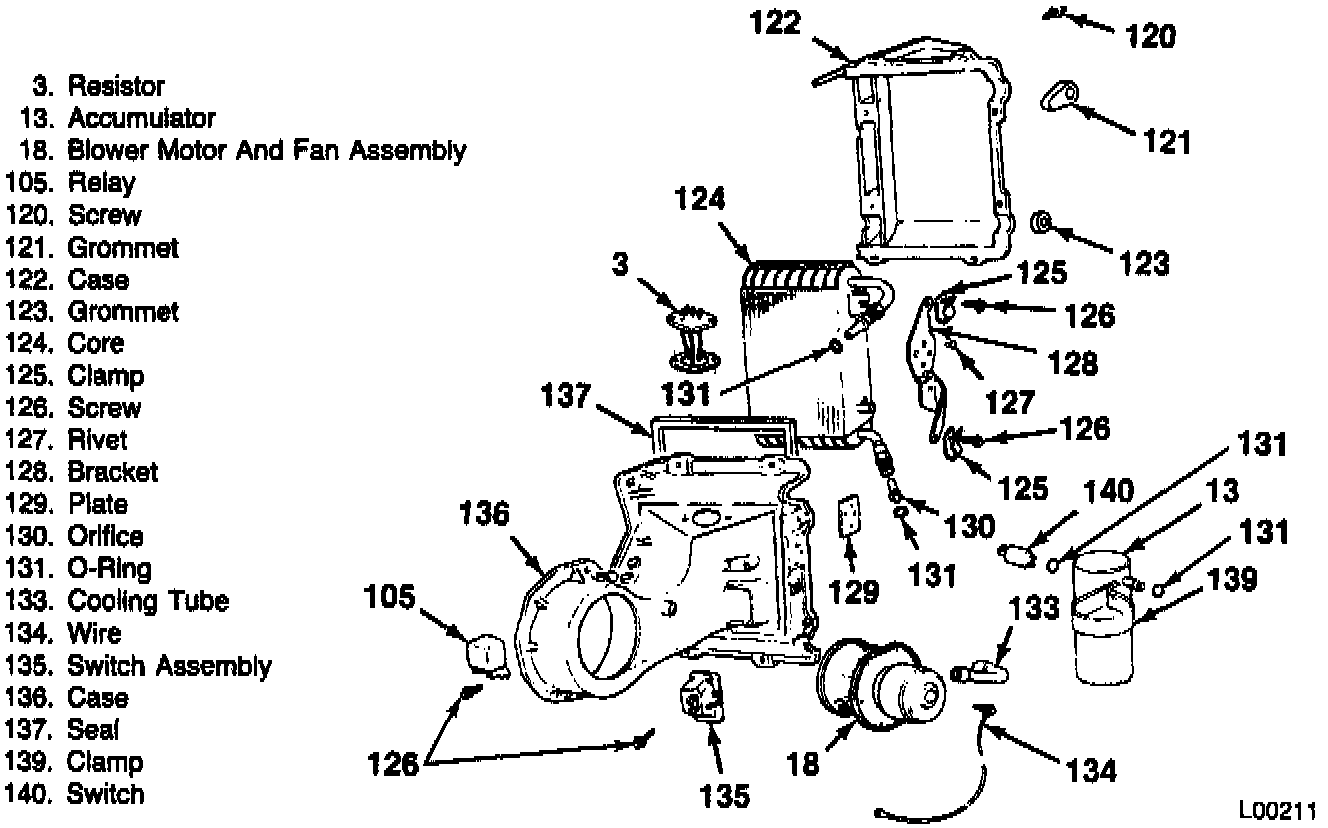

3. Blower motor lead and ground wires (134).
4. Blower motor cooling tube (133).
5. Case attaching screws.
6. Blower assembly.
^ Carefully pry the blower flange away from the case it the sealer acts as an adhesive.
7. Shaft nut.
8. Blower wheel from motor shaft.
^ Remove shaft nut.

INSTALL OR CONNECT
1. Blower wheel to the motor shaft.
2. Shaft nut
3. Blower assembly.
^ Use a new bead of permagum sealer on the flange.
4. Blower motor cooling tube (133).
5. Blower motor lead and ground wires (134).
6. Insulator.
7. Battery ground cable.
