Left Side View

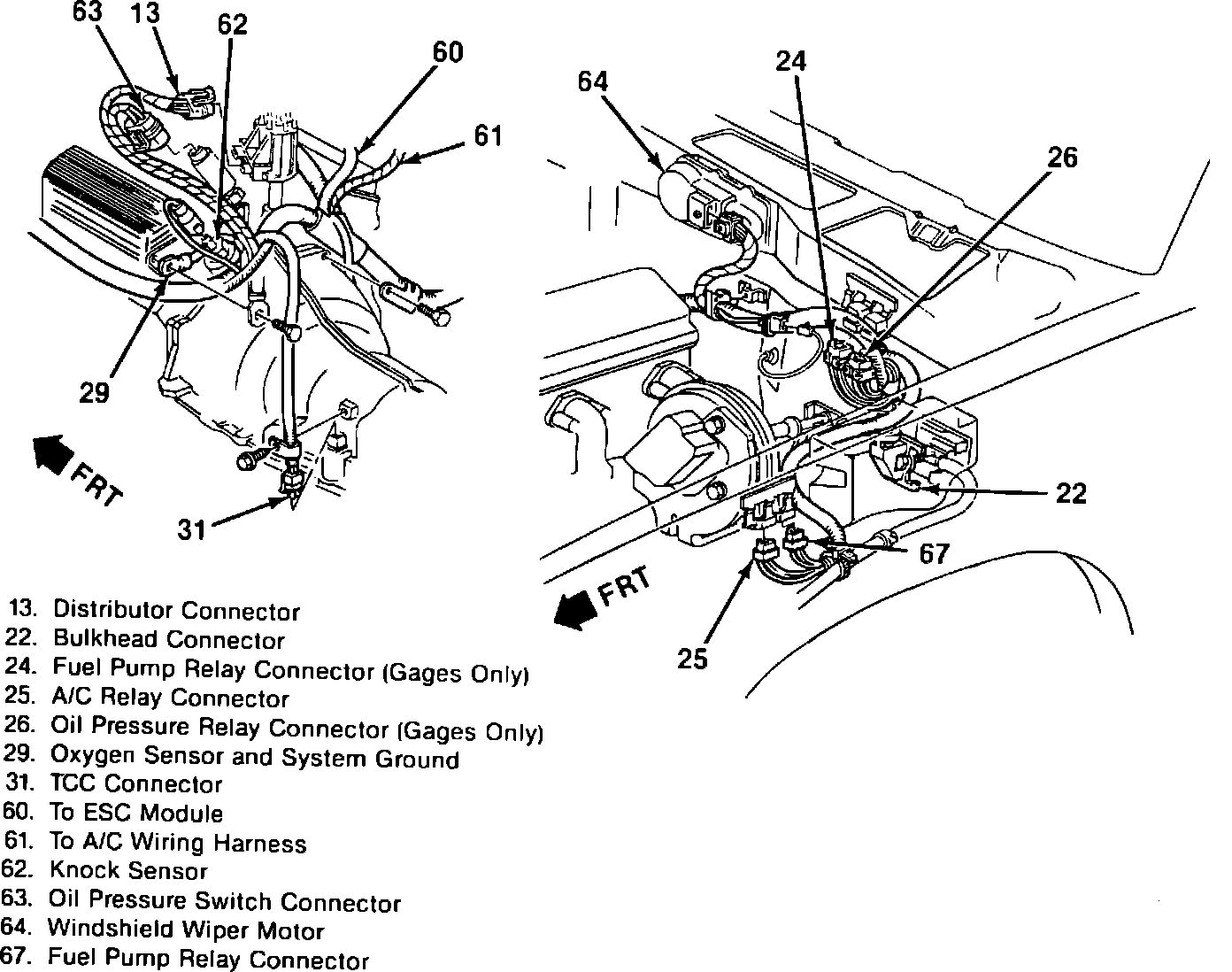

Engine Wire Routing:

13 = DISTRIBUTOR CONNECTOR.
22 = BULKHEAD CONNECTOR.
24 = FUEL PUMP RELAY CONNECTOR. (GAUGES ONLY).
25 = A/C RELAY CONNECTOR.
26 = OIL PRESSURE RELAY CONNECTOR (GAUGES ONLY).
29 = OXYGEN SENSOR AND SYSTEM GROUND.
31 = TCC CONNECTOR.
60 = TO ESC MODULE.
61 = TO A/C WIRING HARNESS.
62 = KNOCK SENSOR.
63 = OIL PRESSURE SWITCH CONNECTOR.
64 = WINDSHIELD WIPER MOTOR.
67 = FUEL PUMP RELAY CONNECTOR.
