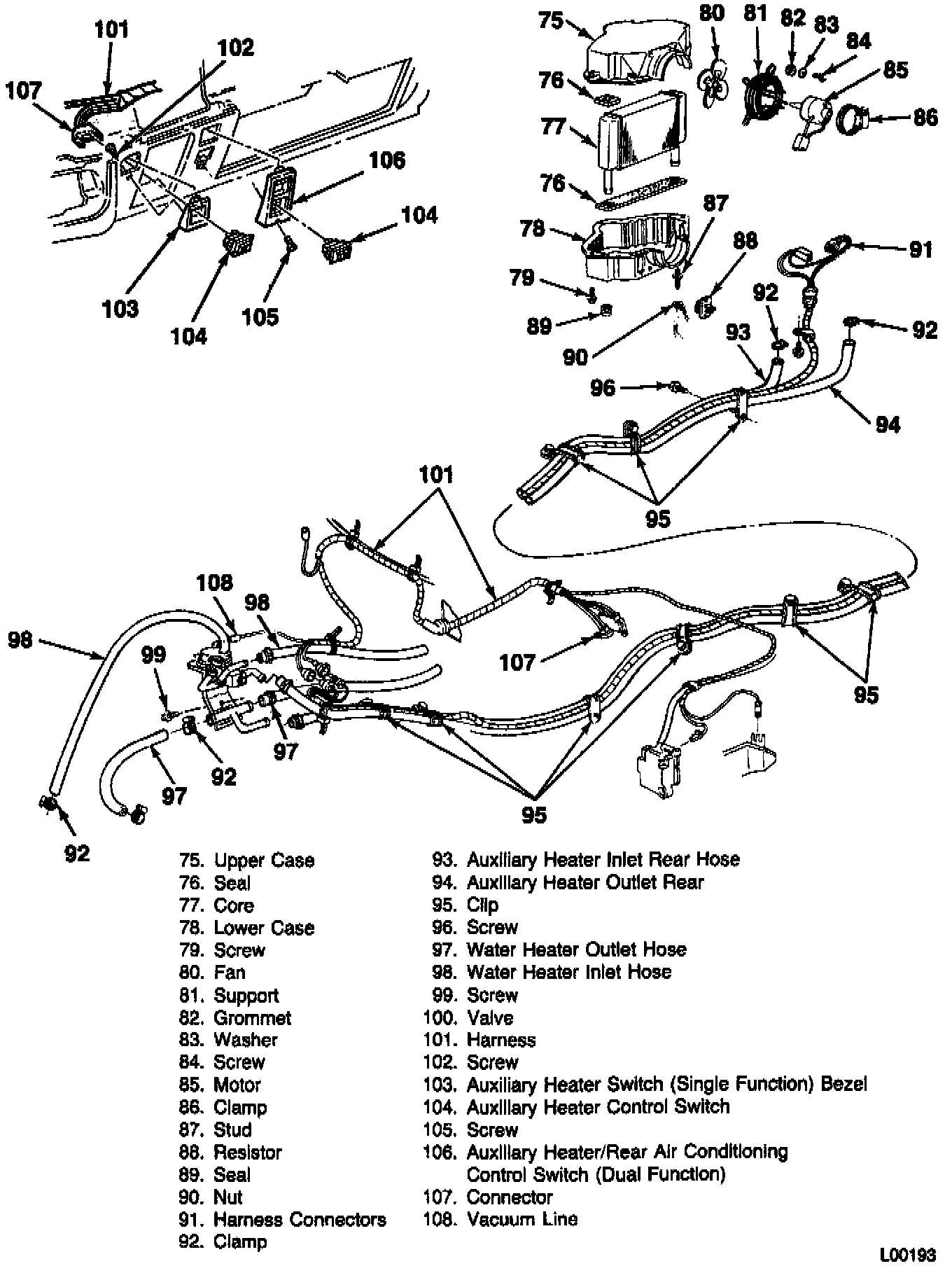

AUXILLARY HEATER CORE REPLACEMENT

REMOVE OR DISCONNECT

1. Battery ground cable.
2. Coolant from the radiator.
3. Hoses from the core.
4. Wiring harness.
5. Clamp.
6. Motor, support and fan as an assembly.
7. Screws.
8. Upper case.
9. Seal.
10. Core.

INSTALL OR CONNECT

1. Core to lower case.
2. Seal.
3. Upper case.
4. Screws.
5. Motor, support and fan.
6. Clamp.
7. Wiring harness.
8. Hoses to the core.
9. Coolant to the radiator.
10. Battery ground cable.
