Memory Seat Module Replacement

REMOVAL PROCEDURE



1. Remove the front seat from the vehicle.

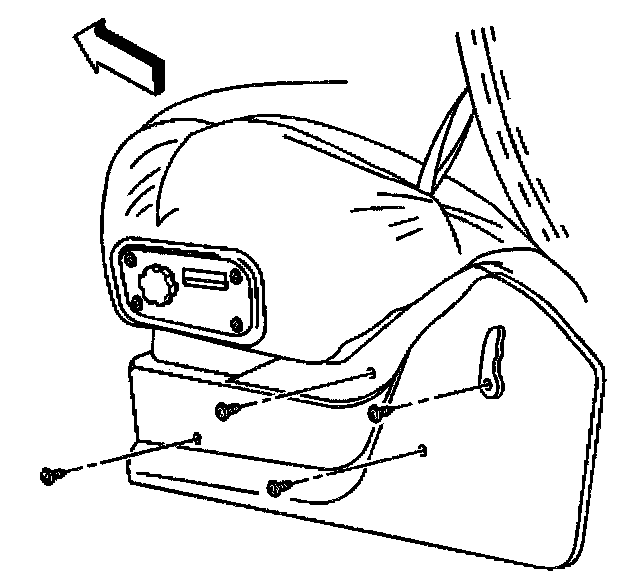

2. Remove the seat trim panel.
3. Remove the seat cushion.

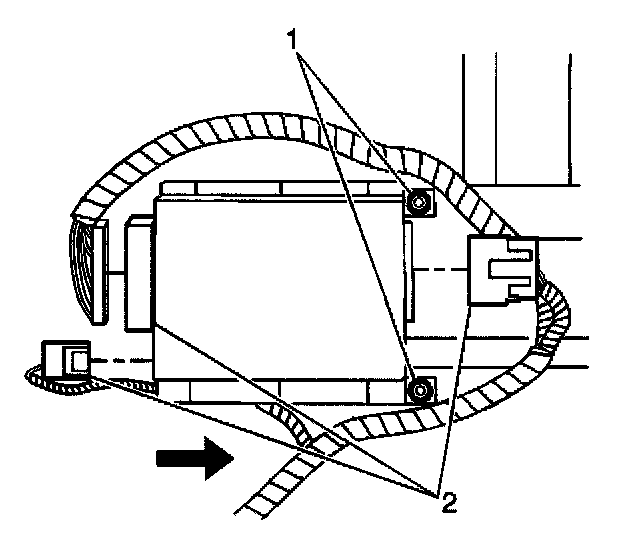

4. Disconnect the harness connectors (2).
5. Disconnect the memory module screws (1).

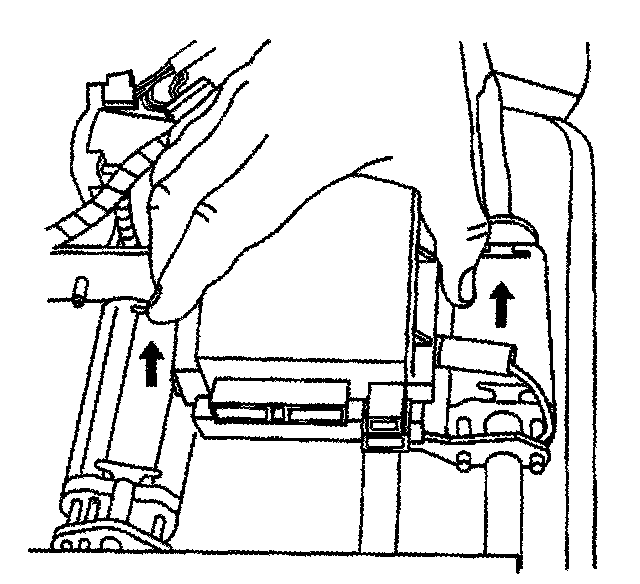

6. Slide the module out.
7. Remove the module from the vehicle.

INSTALLATION PROCEDURE



1. Slide the module in until seated.

Notice: Refer to Fastener Notice in Cautions and Notices.




2. Install the memory module screws (1).

Tighten
Tighten the screws to 3 N.m (26 lb in).
3. Connect the harness connectors (2).
4. Install the seat cushion.




5. Install the seat trim panel.
6. Install the front seat in the vehicle.
