Mode Control Knob
Functional Check:
The mode knob operates an electronic actuator. Each actuator operates a valve, a door-like hinge deflector, that routes the airflow to the various outlets of the heater system.

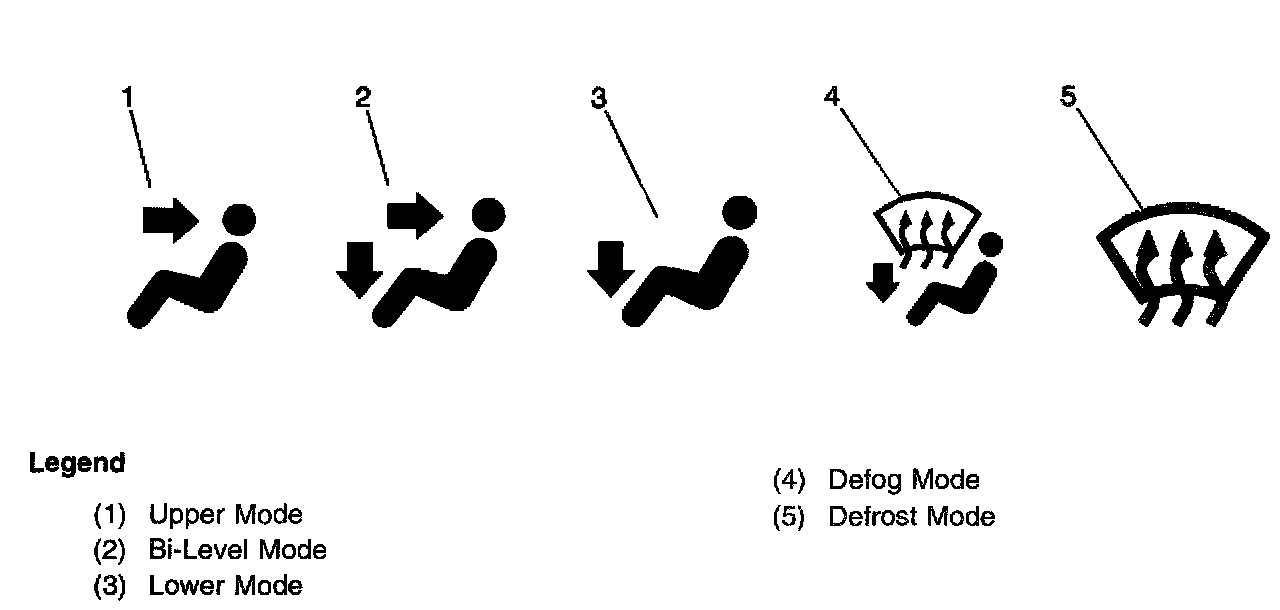

The mode knob has the following positions:
From the resistor assembly, the circuit goes to the
blower motor terminal in order to operate the blower motor.
