Speed Sensor: Service and Repair

Transfer Case Speed Sensor Replacement

Removal Procedure




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the electrical connector from the speed sensor.

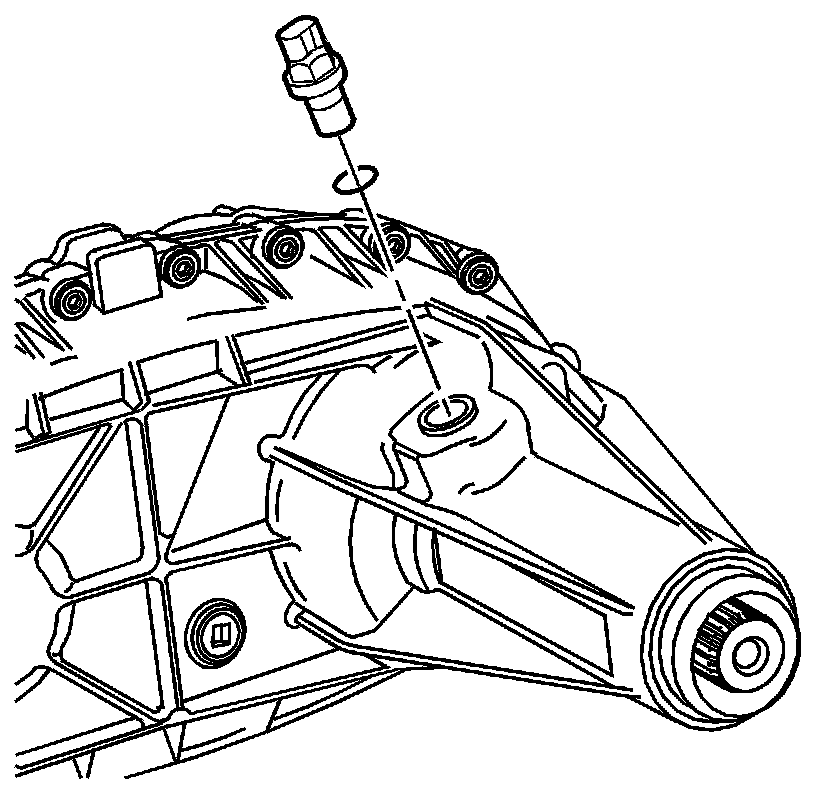

3. Remove the speed sensor and the O-ring from the transfer case.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the new speed sensor into the transfer case with a new O-ring seal. Tighten the right rear speed sensor to 17 Nm (13 lb ft).




2. Install the electrical connector to the speed sensor.
3. Lower the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
